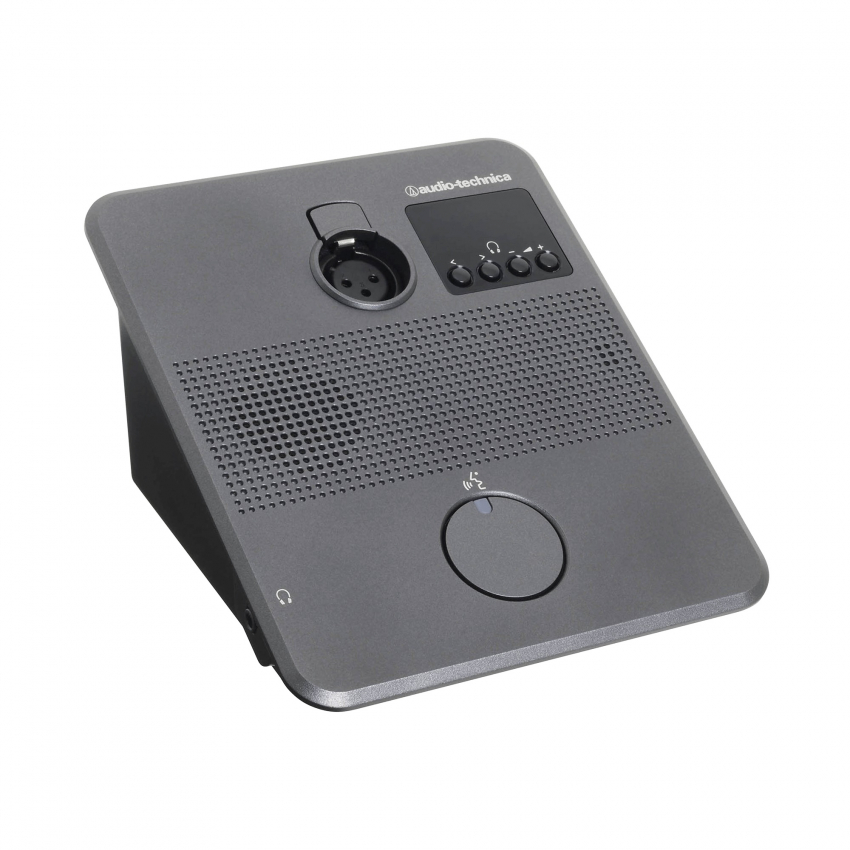

ATUC-50DUa Discussion Unit with high-quality audio. Individual Automated Gain Control (AGC), Mic gain and Mic EQ, Compatibility with standard XLR3 pin gooseneck and High quality speaker for enhanced intelligibility.
ATUC-50DUa
discussion unit with high quality audio
Whatever your conferencing or discussion needs, the ATUC-50 is designed to offer reliable, clear and intelligible communication to significantly increase meeting efficiency and effectiveness.Voice is the quickest and most efficient tool for exchanging ideas - whether in meeting rooms, councils, classrooms or through videoconference, speech is the most direct way of communication and understanding.Using standard Cat 5 (and above) cabling, the ATUC-50 system connects easily through a daisy chain or ring topology.
- Connect up to 100 discussion units to one control unit
- Cascade up to 300 discussion units using multiple control units
- High quality speaker for enhanced intelligibility
- Clear LED display for volume control and channel selection
- Individual Automated Gain Control (AGC), Mic gain and Mic EQ
- Multicolour LED bar on the DU (rear side)
- Multicolour LED on the Speak button
- Compatibility with standard XLR3 pin gooseneck
- Double gooseneck microphone
- Paintable front plate
- Table top or recessed mounting
- 5 years warranty
| Discussion Unit |
|---|
| Dynamic Range | 107dB A-Weighted |
|---|
| Frequency response | +1.0, -2.0dB 20Hz - 20kHz, refer to +4dBu output @1kHz |
|---|
| Sampling Frequency | 24bit /48kHz |
|---|
| Signal-to-Noise Ratio | 87dB A-Weighted |
|---|
| Connections | Inputs: Mic x 1, Outputs: Headphones x 1, CHAIN: DU / CU terminals |
|---|
| Headroom | 20dB |
|---|
| Equivalent Input Noise | Less than -121dBu Rs=150ohm |
|---|
| Total Harmonic Distortion | Less than 0.07% @1kHz unity |
|---|
| Phantom Power | DC +24V |
|---|
| Power Supply | DC +48V |
|---|
| Power Consumption | 2.2W |
|---|
| Operating Temperature Range | 0-40℃ |
|---|
| Operating Humidity | 25-85% |
|---|
| Dimensions | 135mm x 148.3mm x 84.2mm |
|---|
| Weight | 570g |
|---|
| Accessories Included | Quick Setup Guide, Warranty Sheet |
|---|
