Williams AV
Digi Wave Intercom 6 enheter och väska
Artikelnr:WI-DWS-COM-6-PRO-400
Tillverkarens artikelnr:DWS COM 6 PRO 400Â
Fråga ett proffs!
Daniel Vadberg
+46(0)10-188 25 63
daniel@audiovision.se
6-Person Digi-Wave Wireless Intercom System Pro
DWS COM 6 PRO 400

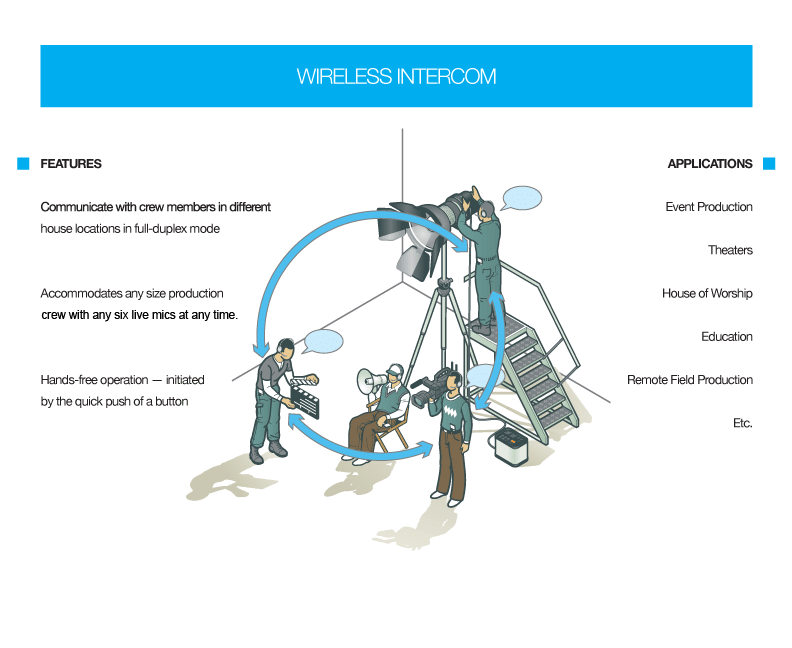

This portable, wireless intercom system allows six people to talk and listen to each other wirelessly without interference. Its use of a frequency-hopping algorithm ensures secure communication. Its portability and single-muff headphones make it the perfect solution for factory tours and live production crews.
This system serves as a solution for venues requiring two-way communication.
System Includes

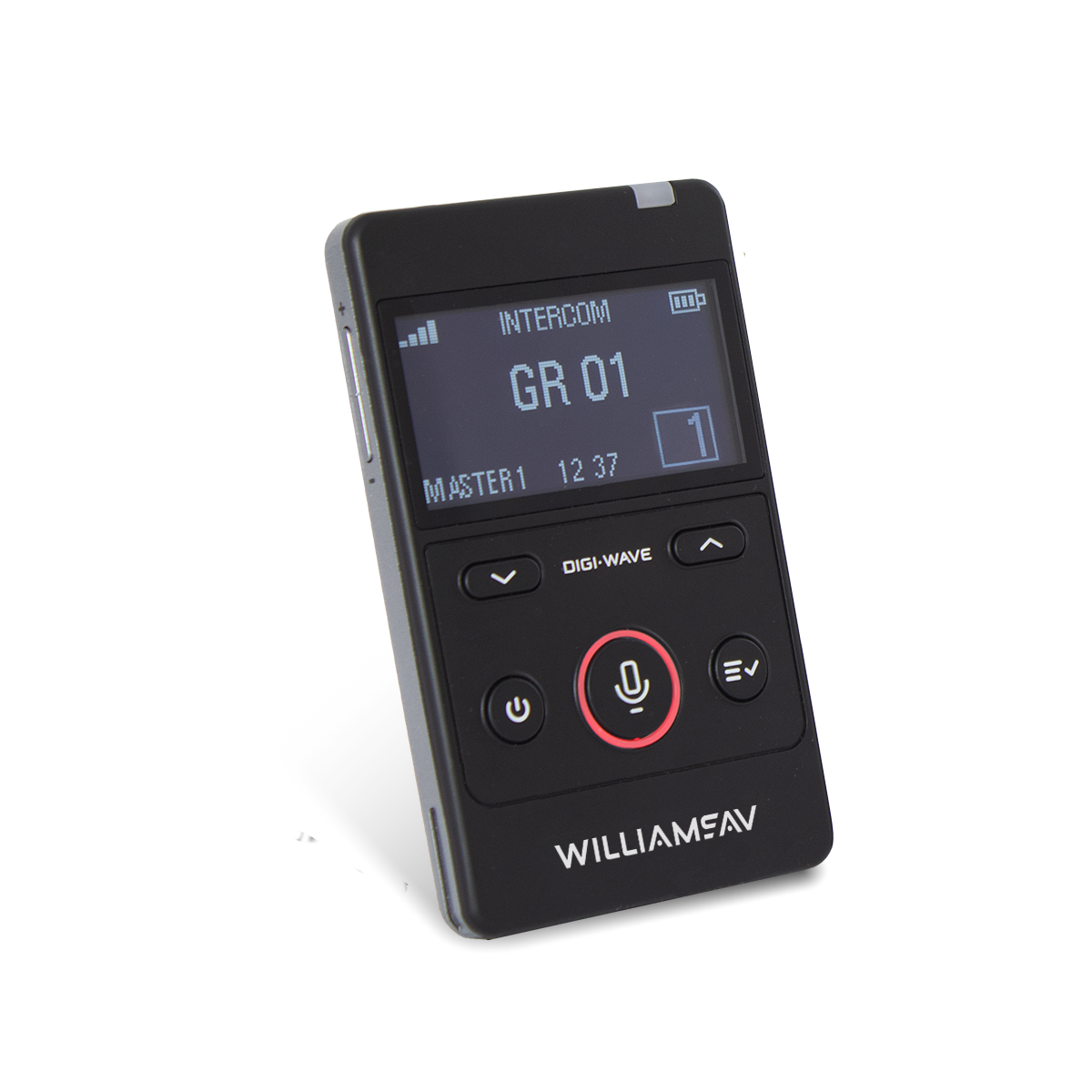

(6) DLT 400 transceivers
(6) MIC 157 headset mics
(6) DW ACC PAC4

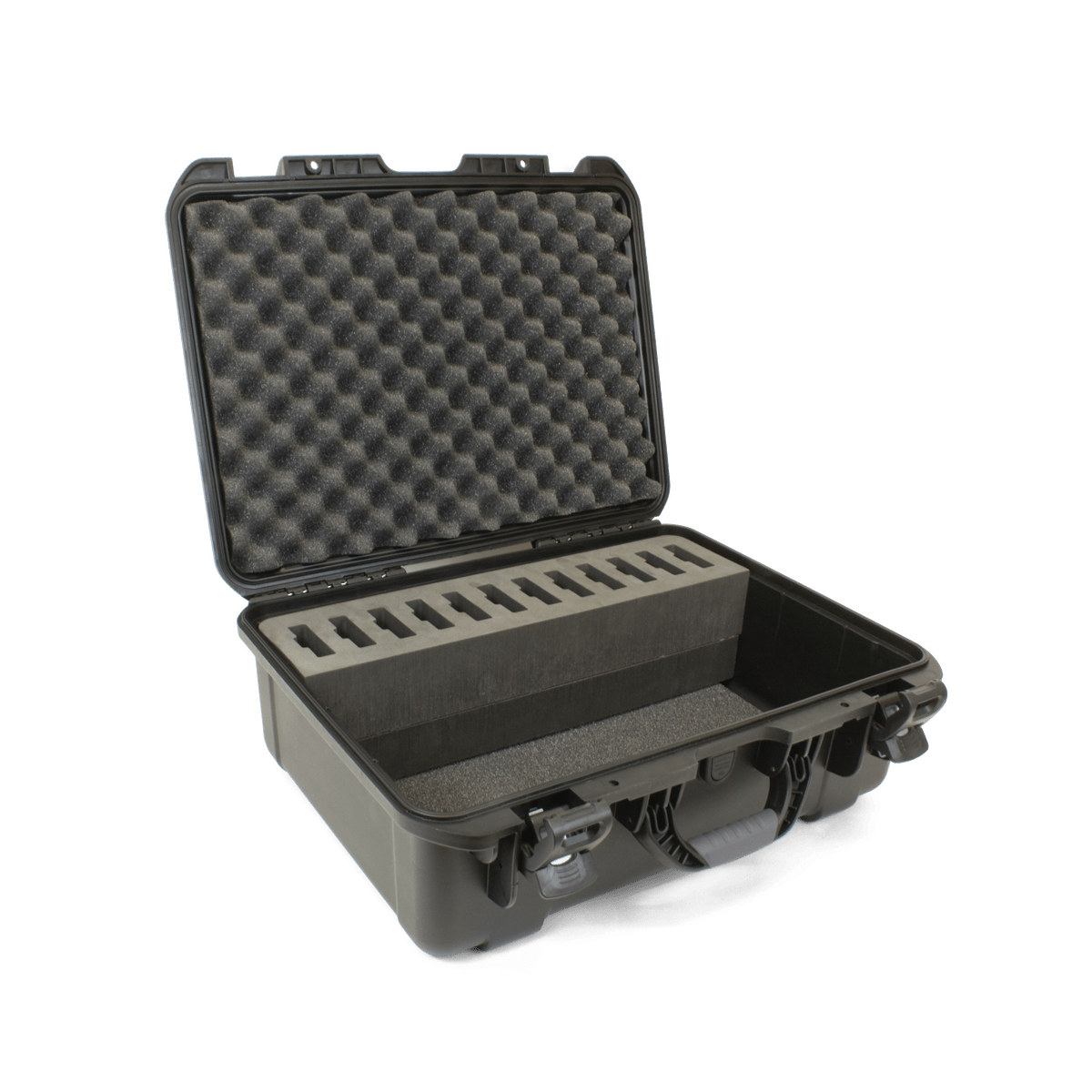

(1) CCS 042 heavy-duty system carry case
(1) CCS 061 GR grey silicone skin
(5) CCS 061 BK black silicone skins
Dimensions
4.22"W x 2.60"H x 0.50"D (107.3 mm x 66 mm x 12.6 mm)
Weight
3.3 oz (94 g) including battery
Color
Black/Silver (Front/Back)
Case Material
Black ABS plastic
Battery type
Lithium Polymer with smart charge built into transceiver; 1800 mAH
Battery life
Up to 16 hrs talk time per charge@ 1ch Tx and 1ch Rx
Power Save
Auto Sleep Mode after 5 minutes if no RF signal from compatible devices (Power can be turned off in Advanced Settings if desired)
Charge time
5 hrs. approx.
System Voltages
OLED 14VDC; RF 5VDC; Logic 3.3 VDC
Operating frequencies
2.4 GHz (ISM band); 2402 – 2476 MHz FHSS
Audio Frequency response (-3dB Level)
Interpretation, Tour, Hearing Asst (≤4 mics): 100 – 11,500 Hz
Other Modes: 100 – 7,200 Hz
SNR
73 dB (A-weighted, default Rx volume with mic input )
THD
0.1 % (Default Volume, 1kHz)
Microphone input
Internal microphone (disabled when MIC jack engaged) and 3.5 mm phone jack (sleeve) with electret microphone bias, adjustable gain with 63dB range.
Line Input
USB-C, Adjustable level
Headphone Output
3.5 mm TRRS headphone jack; 25 mW, R 32 ohms
Audio Output
Headphone: Max SSPL 90 111.8dB (EAR 013), 116.8dB (EAR 041) Line: USB-C, Adjustable level
Range
Up to 900 ft (274 m) (depending upon environmental conditions)
Modulation
FSK
RF Output
19 dBm Max
Security
87-bit encryption (300 Series Compatible), 87+128 bit Encryption, Encryption PIN, Lock for settings
Side tone
-6 dB below volume, tone variation (Off, Low and High settings available)
Indicators
OLED
LEDs
Red LED around Talk button when enabled; Bi-color, changing green and red LED at top
Charging Connectors
USB-C; Two contacts for use with CHG 412
Compatible Receiver
DLR 400 RCH, DLR 400 ALK, DLT 300 with some limitations and DLR 360 with some limitations
Operating Temperature Range
14º to 113ºF (-10º to 45ºC)
Approvals
FCC, Industry Canada, CE, RoHS 3, WEEE, RCM, ANATEL, KC, Giteki
Warranty
2-years warranty against component failure and manufacturing defects. 1 year on the internal battery. See Full Warranty on the website for details.
.webp)
Garantitiden varierar mellan 12-60 månader beroende på produkt. Samtliga tillbehör kommer med 90 dagars garanti. Klicka här för mer information om Williams AV's garantipolicy.
Williams AV är en amerikansk tillverkare specialiserad på avancerade ljudlösningar för tillgänglighet, guidning och flerspråkig kommunikation i utbildningsinstitutioner, företag, rättssalar, kyrkor och offentliga miljöer. Med fokus på trådlös ljudöverföring, hörselassistans, tolkning och videoöverföring erbjuder företaget ett brett sortiment av teknik som gör det möjligt för alla att höra och delta – oavsett språk eller hörselförmåga.
