Produktinformationexpand_more

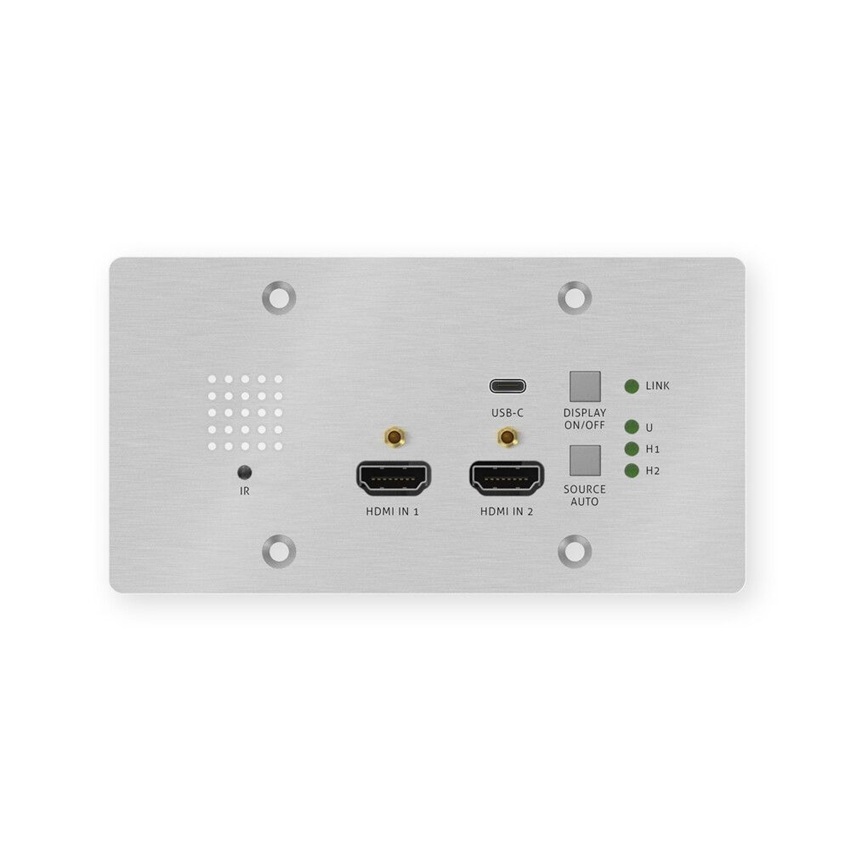

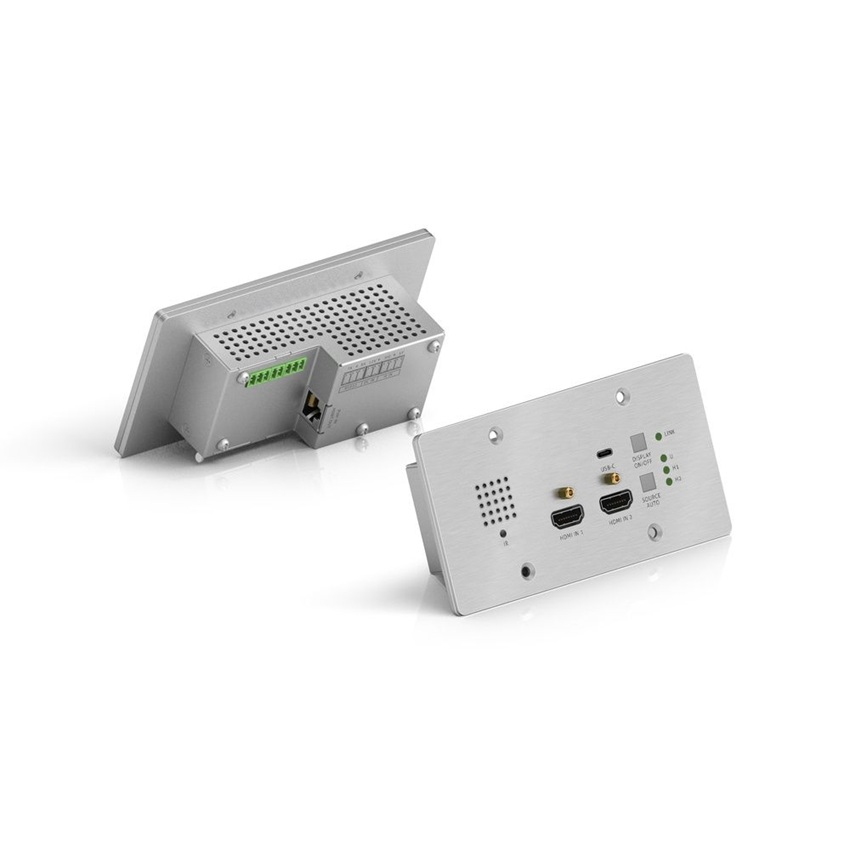

Features4K (60Hz 4:2:0) , USB-C up to 4K (30Hz 4:4:4) HDMI 1.4 standard and HDCP 2.2HDBaseT transmission of 4K@60Hz up to 40m and 1080P@60Hz up to 70mIR pass-through and RS232 pass-through for HDBaseT connection and local controlDISPLAY ON/OFF button can be programmed by IR learning feature or RS232 commandThe HDBT port supports 12V-48V PoC from a receiver by the Cat.x cable and also 12V-24V PoC outputPureTools HDBaseT Wallplate Transmitter with Frame, 2x HDMI & USB-C Inputs, 4K, 40m 4K / 70m 1080pThe PT-HDBT-703-TXWP-F 3x1 Wallplate Transmitter Switcher is designed to switch and extend HDMI or USB-C input signals to far-end display devices. The transmission distance is up to 40m at 4K and 70m at 1080P over a single Cat.x cable. The switcher features 2x HDMI and 1x USB-C input, it can be selected by the SOURCE AUTO button on the front panel. The switcher supports CEC. The DISPLAY ON/OFF button on front panel is used to control the far-end display device, and can be programmed via IR learning or RS232 commands, to ensure compatibility with various display devices. The 12V-48V PoC allows the switcher to be powered from a compatible HDBaseT receiver.HDBaseT Wallplate for HDMI and USB-C TransmissionPureTools HDBaseT Wallplate Transmitter with Frame,4K (60Hz 4:2:0) , USB-C up to 4K (30Hz 4:4:4) HDMI 1.4 standard and HDCP 2.2. HDBaseT transmission of 4K@60Hz up to 40m and 1080P@60Hz up to 70m. IR passthrough and RS232 pass-through for HDBaseT connection and local control. DISPLAY ON/OFF button can be programmed by IR learning feature or RS232 command. The HDBT port supports 12V-48V PoC from a receiver by the CATx cable, and also 12V-24V PoC output.
Garantierexpand_more
36 månaders garanti på samtliga produkter. Efter registrering förlängs garantitiden till 60 månader för alla PureTools produkter och upp till hela 180 månader på kablar och adaptrar.
Om varumärketexpand_more
PureLink är en tysk tillverkare som specialiserar sig på avancerade AV-kablar, adaptrar, signalhantering och infrastrukturprodukter för professionella miljöer. Med ett brett sortiment av lösningar för HDMI, DisplayPort, USB, fiber, nätverk och AV over IP, erbjuder PureLink produkter som kombinerar hög tillförlitlighet med utmärkt signalintegritet.
