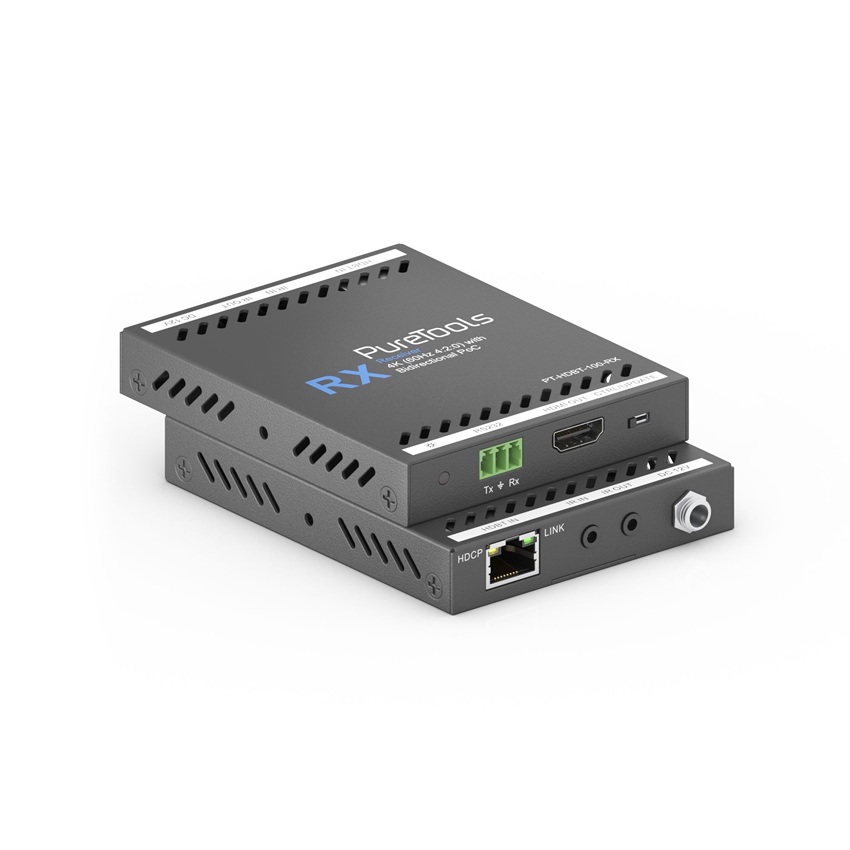

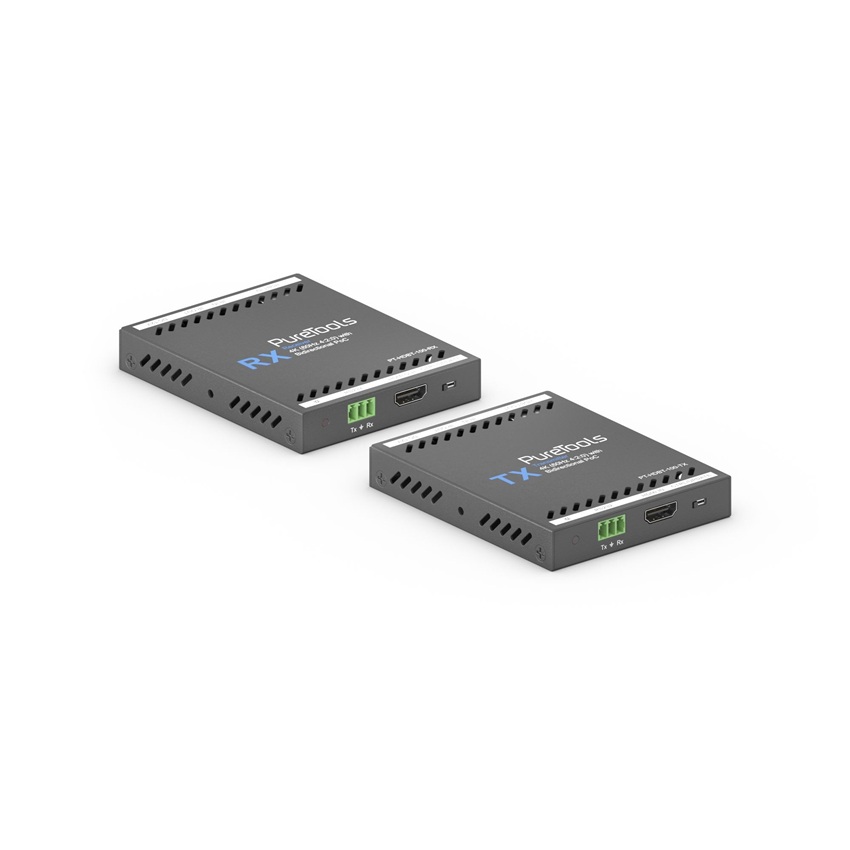

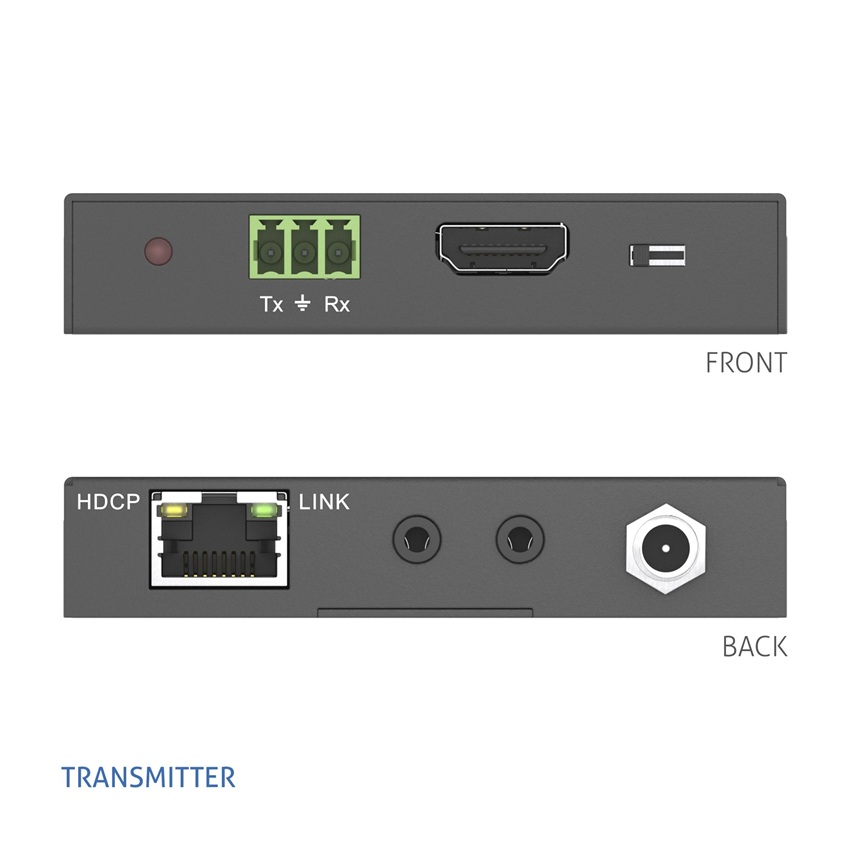

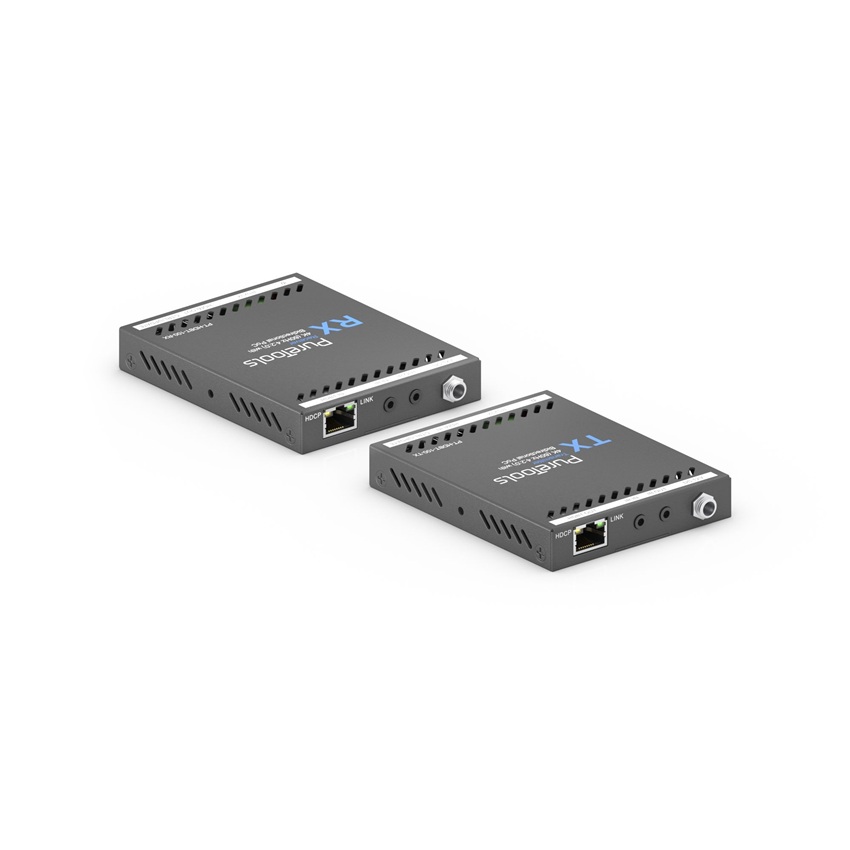

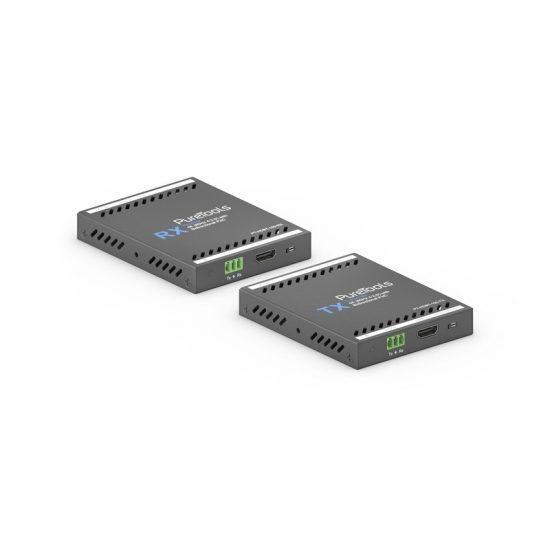

FeaturesTransmission of HDMI via HDBaseT up to 40m (4K), 70m (1080p)Supports 10.2Gbps for resolutions up to 4K UltraHD 30HzBidirectional PoC, pass-through for IR and RS232DIP switch for RS232 mode, CEC supportRobust enclosure with mounting brackets, screwable power supplyPureTools PT-HDBT-100 4K HDMI HDBaseT Extender SetThe HDMI via HDBaseT extender set PT-HDBT-100 transmits HDMI signals with 4K resolution (max. 60Hz at 4:2:0) over a distance up to 40 meters or with FullHD / 1080p resolution up to 70 meters. The set supports HDMI version 1.4 with a max. bandwidth of 10.2Gbps incl. HDCP 2.2. The system supports bidirectional transmission (pass-through) of IR and RS232 signals for an easy control of remote devices. With the convenient DIP switch on the front panel, the RS232 modes Control and Update can easily be selected. Thanks to the bidirectional PoC support, only one of the two devices (transmitter or receiver) needs to be powered at a time. The set also supports CEC and features a rugged steel housing with mounting brackets, ideal for professional installations.PureTools - High-grade electronic products for commercial applicationsThe PT-HDBT-100 4K HDMI via HDBaseT extender set consists of transmitter (Tx) and receiver (Rx) and transmits incoming HDMI signals via HDBaseT. Both devices are connected with a conventional Cat. Cable (Cat.5e / Cat.6a) over distances up to 40 meters for 4K resolutions with max. 60Hz at 4:2:0 color subsampling or up to 70 meters for FullHD / 1080p resolutions.The system supports bidirectional PoC (Power over Cat) power supply. This means that only one of the two devices needs to be powered using the included PSU and the other device will be directly powered via the HDBaseT Cat connection. This saves power supplies and keeps things tidy, thanks to less cable clutter in one of the two locations.The included bidirectional pass-through of IR and RS232 signals allows control of connected devices from the respective other location. Simply connect the RS232 control device (e.g. PC) or IR emitter / receiver (not included) to the transmitter or receiver module and forward the signal to a remote location via HDBaseT Cat connection. Both devices feature IR input as well as IR output with two 3.5mm sockets each. This allows the connected TV to be controlled from the source devices side while the source device can be controlled from the TV side at the same time. The system also supports CEC control via HDMI, also transmitted via HDBaseT.The convenient DIP switch on the front of both units allows the RS232 port to be switched between Control and Update functions. In Control position the RS232 port can be used the traditional way to forward RS232 signals. In Update position the integrated Valens chipset can be programmed via PC.The 12V power connector on both devices features a lockable screw cap.High-grade electronic products for commercial applicationsThe PureTools product line is made up of high-quality audio/video electronic products such as switchers, splitters, converters and extenders for commercial AV installations and applications. The product lines focus is on the transmission of digital signals such as HDMI, DisplayPort, DVI and SDI. Dependable technology designed according to the latest standards and combined with intelligent innovations, make the PureTools product line perfect for professional installers, as well as guaranteeing an Install and Forget experience thanks to top grade performance.

Garantierexpand_more

36 månaders garanti på samtliga produkter. Efter registrering förlängs garantitiden till 60 månader för alla PureTools produkter och upp till hela 180 månader på kablar och adaptrar.

Om varumärketexpand_more

PureLink är en tysk tillverkare som specialiserar sig på avancerade AV-kablar, adaptrar, signalhantering och infrastrukturprodukter för professionella miljöer. Med ett brett sortiment av lösningar för HDMI, DisplayPort, USB, fiber, nätverk och AV over IP, erbjuder PureLink produkter som kombinerar hög tillförlitlighet med utmärkt signalintegritet.
