Vägg- eller takplatta, TB3M mic-anslutning, Dante, AES67
Artikelnr:ATND8734A
Tillverkarens artikelnr:ATND8734a
EAN:4961310145279
Fråga ett proffs!
Kim Lindberg
+46(0)10-188 25 62
kim@audiovision.se
Produktinformationexpand_more
Connects directly to network via Ethernet cable – no need for expensive audio cable or soldering
TB3M-type input for quick mounting of microphone
Red/green LED indicator
Input gain, low-cut filter and LED indicator ring are controlled remotely
Logic input accepts external switch for connection to the Dante network
Plug-and-play compatibility with AES67 networks, including those that utilize Livewire, RAVENNA and Q-LAN AoIP technologies
Increases Dante Domain Manager features, adding role-based security, cross-subnet routing, SNMP alerts and more

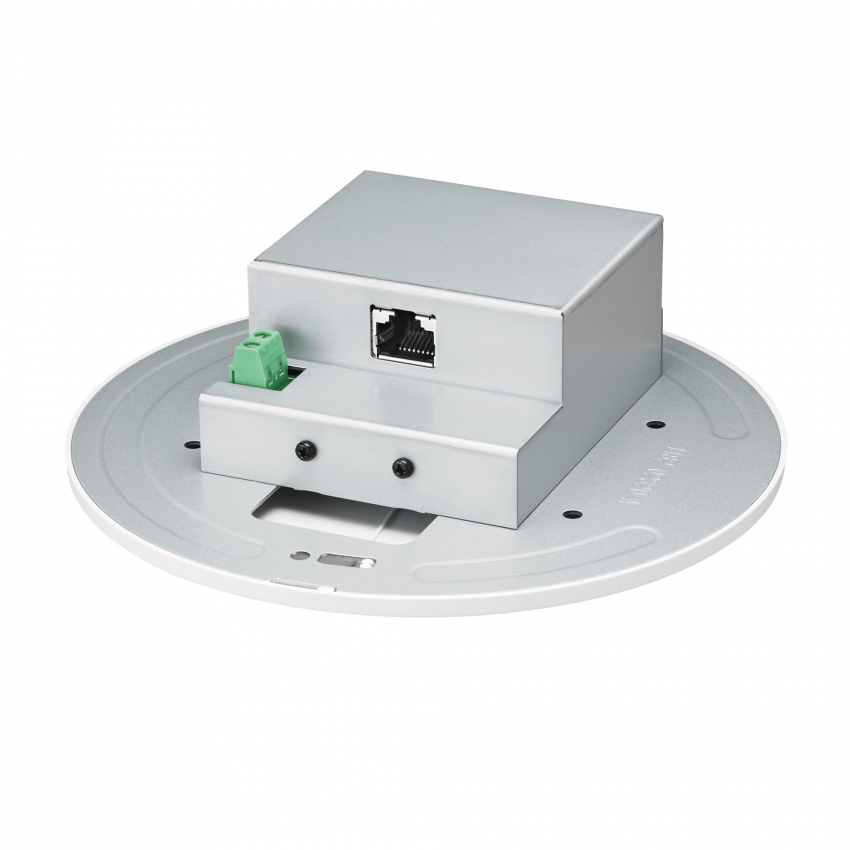

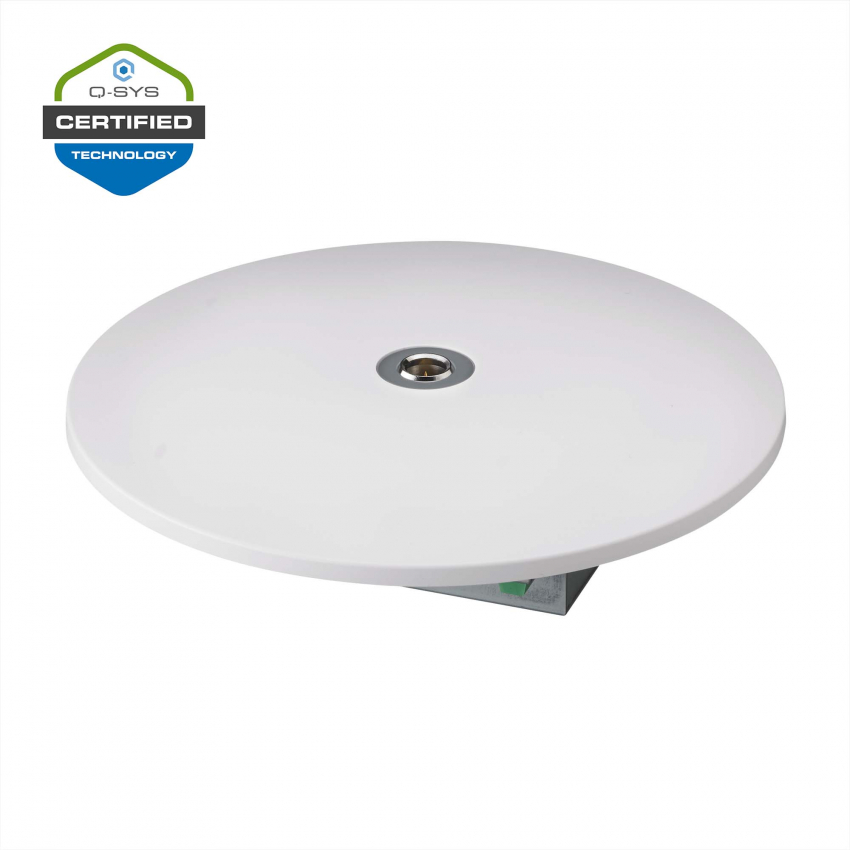

The ATND8734a is a Dante-enabled wall/ceiling plate power module designed for use with compatible microphones that have a TA3F-type connector, including the ES931/MIC and ES933/MIC. The power module is equipped with an RJ45 output jack that allows for easy connection to the network via CAT5e (or better) cable. The power module is equipped with an 80 Hz low-cut UniSteep® filter that permits the choice of flat response or low-frequency roll-off, three-position input gain level selector (+30 dB, +40 dB, and +50 dB), and a red/green LED status indicator. These are all controlled remotely via third-party software.* The ATND8734a features a circular cover plate that can be removed and painted with commercially available spray paint. This latest “a” version also offers plug-and-play compatibility with AES67 networks, including those that utilize Livewire, RAVENNA and Q-LAN AoIP technologies, and increases the Dante Domain Manager features, adding role-based security, cross-subnet routing, SNMP alerts and more.
Garantierexpand_more
24 månaders garanti på de flesta produkterna.
60 månaders garanti på utvalda produktserier (ATUC-, ATDM-, ATND- samt Engineered Sound Wired ES9XX).
Livstids garanti på premium live-/studiosortimentet (40-Serien, 50-Serien, Artist Serien och Artist Elite Serien).
*Engineered Sound Wireless (ESW) har 24 månaders garanti.
