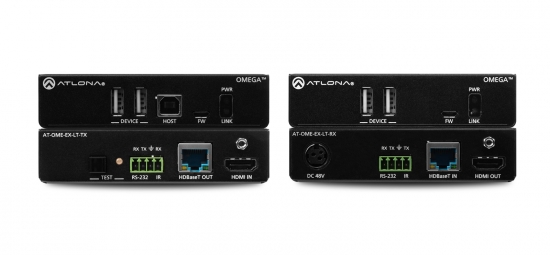

The Atlona AT-OME-EX-KIT-LT is an HDBaseT extender for video up to 4K/60 4:2:0, plus embedded audio, control, and USB over distances up to 130 feet (40 meters) for 4K/UHD, and up to 230 feet (70 meters) for 1080p/60 video. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-KIT-LT is HDCP 2.2 compliant and extends IR and RS-232 control signals. The integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The transmitter includes a USB 2.0 host interface for a PC, plus two peripheral devices such as a speakerphone, microphone, or keyboard and mouse. The receiver provides two USB interfaces for devices such as a camera, soundbar, or display.

The OME-EX-KIT-LT incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The receiver remotely powers the transmitter over HDBaseT. Also available with the OME-EX-KIT-LT is the ability to test the integrity of the HDBaseT cable link between the transmitter and the receiver.

USB Extension for Video Conferencing with Zoom, Skype for Business, Microsoft Teams, and More

The OME-EX-KIT-LT features integrated USB extension over HDBaseT up to 230 feet (70 meters). This capability, plus interfacing for host PCs and USB peripherals makes the OME-EX-KIT ideal for video conferencing and UC (unified communications) platforms such as Zoom, Skype^® for Business, Microsoft^® Teams^®, Cisco^® Webex^®, BlueJeans, and GoToMeeting^®. Available from Atlona is the AT-HDVS-CAM PTZ camera with USB interface.

Applications

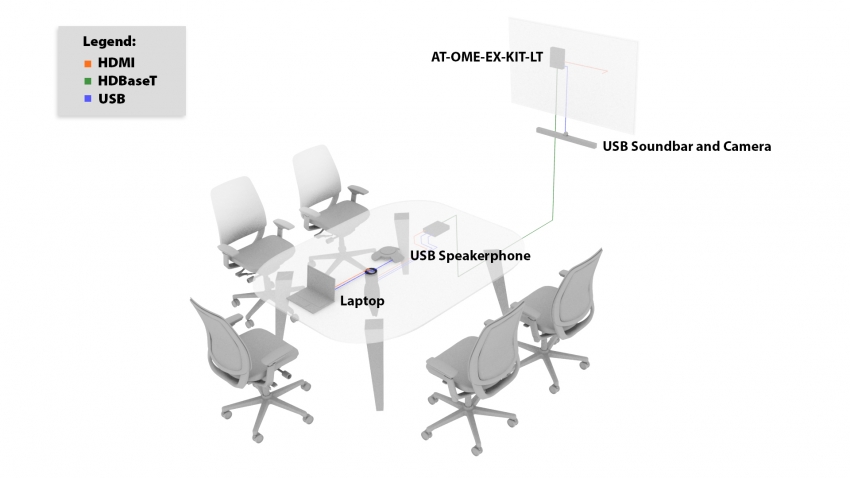

Video conferencing – The OME-EX-KIT-LT is ideal for soft codec and web-based conferencing applications, with the ability to integrate with a PC and speakerphone or microphone at a meeting table, and a camera or soundbar at the wall-mounted display.
Interactive displays – The OME-EX-KIT-LT can also provide AV and USB extension for a touch-enabled display, allowing remote PC control at a meeting table or other location.

Product compatibility

The OME-EX-KIT-LT is not compatible with the Atlona HDVS-300 system for USB extension.

Video, audio, power, and data over category cable utilizing HDBaseT technology

Extends up to 230 feet (70 meters) @ 1080p, or up to 130 feet (40 meters) @ 4K/UHD using CAT6a/7 cable
Uses easy-to-integrate category cable for low-cost, reliable system installation

USB 2.0 interfacing and extension* up to 230 feet (70 meters)

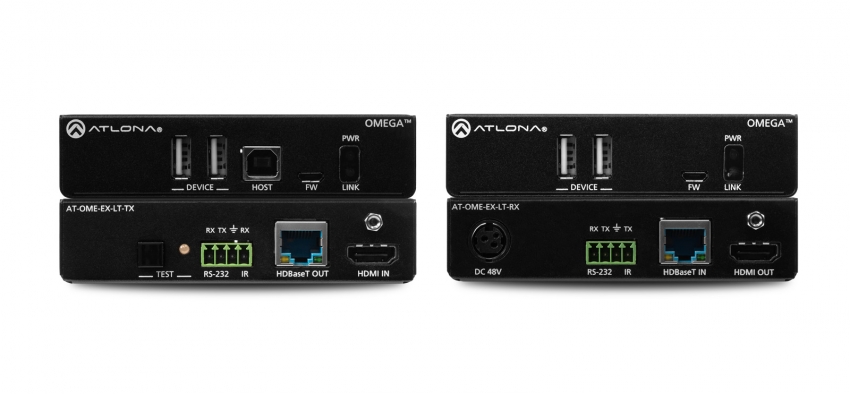

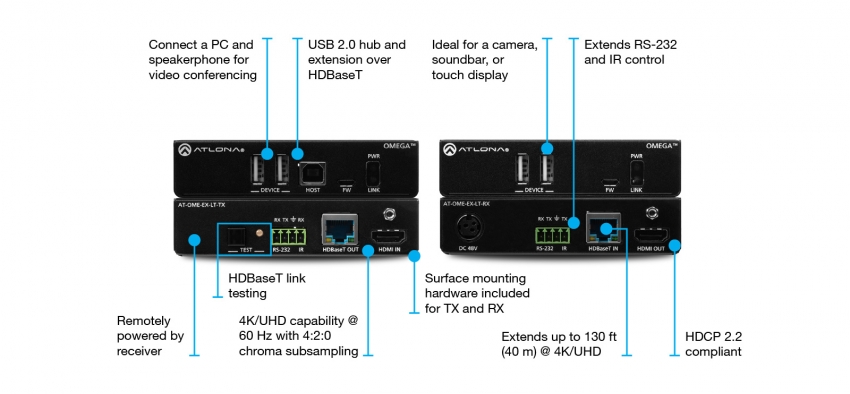

Transmitter features USB type B interface for connection to a host PC, plus two USB type A ports for peripheral devices such as a microphone or speakerphone
Receiver features two USB type A ports for peripheral devices such as a camera or display
Provides an ideal USB integration solution for software video conferencing and other applications
* Maximum 120 Mbps data rate supported over HDBaseT.

4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling

Compatible with sources up to 4K/60 4:2:0 and 4K/30 4:4:4
Supports HDMI data rates up to 10 Gbps from PCs, media players, and Ultra HD Blu-ray players

HDCP 2.2 compliant

Adheres to latest specification for High-bandwidth Digital Content Protection
Allows protected content stream to pass between authenticated devices

Transmitter powered by receiver via PoE (Power over Ethernet)

Industry standard IEEE 802.3af PoE for transmitter is supplied by receiver over HDBaseT
Allows convenient transmitter installation at a table or other remote location, without the need for local AC power

Multi-channel audio compliant

Passes through multi-channel audio formats
Supports PCM, Dolby^® Digital, Dolby Digital Plus™, Dolby TrueHD, Dolby Atmos^®, DTS^®Digital Surround™, DTS-HD Master Audio™, and DTS:X^®

HDBaseT link status testing

Free software utility available for testing integrity of the HDBaseT cable link between the transmitter and the receiver
Provides real-time link status, plus detailed HDBaseT and HDMI signal information
Quick, easy verification or troubleshooting of RJ-45 termination or twisted pair cable quality
Test button and LED also available on the transmitter for checking HDBaseT link integrity

Field-updatable firmware

Device can be updated in the field via the USB port

Front panel power and signal status LEDs

LED indicators provide power and HDBaseT link status information
Provides convenient setup and troubleshooting

Low-profile, 1.02 inch (26 mm) high enclosures

Easy installation into confined spaces below tables, in furniture, and behind or above displays

Included accessories

Installation guide, surface mounting hardware, and external universal power supply

Award-winning 10 year limited product warranty

Ensures long-term product reliability and performance in commercial and residential systems
Specify, purchase, and install with confidence
