With its low-profile design that mounts unobtrusively in tabletops, ceilings or panels for minimum visibility, the ES945O/XLR omnidirectional condenser boundary microphone provides clear, highly intelligible audio that is perfect for conferencing, recording, monitoring and other demanding sound pickup applications.

Protected by a rugged all-metal case with a two-layer perforated grille, the microphone’s omnidirectional polar pattern affords a 360° pickup angle, while its UniGuard® RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI). The microphone also offers IPX4 water resistance to protect it from splashes of water.

The ES945O/XLR is equipped with a self-contained power module with an XLRM-type output connector, eliminating the need for an external power module. The microphone is available in black (ES945O/XLR) and white (ES945WO/XLR), and comes with a pair of rubber isolators for optional mechanical isolation from the mounting surface.

See below for the entire family of ES945O and ES947C boundary microphones:

ES945O/XLR
Water-resistant Omnidirectional Condenser Boundary Microphone with XLR Output

ES947C/XLR
Water-resistant Cardioid Condenser Boundary Microphone with XLR Output

ES945O/TB3
Miniature Omnidirectional Condenser Boundary Microphone with TB3-to-XLR Output

ES947C/TB3
Miniature Cardioid Condenser Boundary Microphone with TB3-to-XLR Output

ES945O/FM3
Omnidirectional Condenser Boundary Microphone with 3-Pin XLR Output and Local Muting

ES947C/FM3
Cardioid Condenser Boundary Microphone with 3-Pin XLR Output and Local Muting

ES945O /FM5
Omnidirectional Condenser Boundary Microphone with 5-Pin XLR Output and Remote Muting

ES947C/FM5
Cardioid Condenser Boundary Microphone with 5-Pin XLR Output and Remote Muting

Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
Low-profile element provides uniform omnidirectional polar pattern with 360° acceptance angle
Mounts unobtrusively in tabletops, ceilings and panels

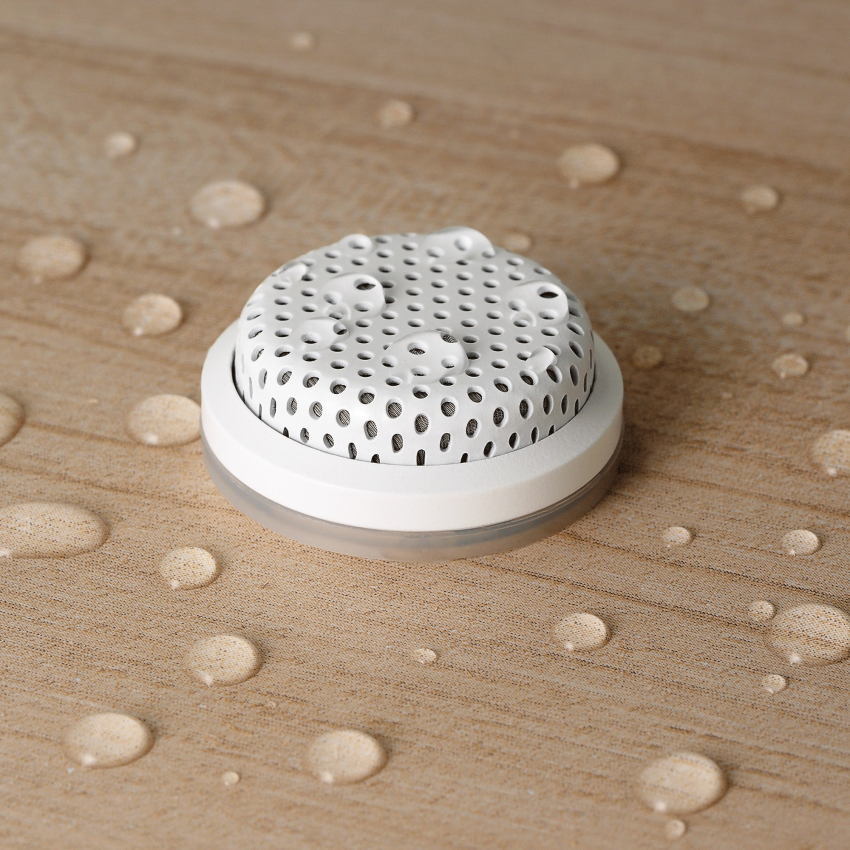

IPX4 water resistance protects the microphone from splashes of water
Self-contained power module with XLRM-type output connector
Rugged all-metal case with a two-layer perforated grille
Rubber Isolators provide mechanical dampening of mounting-surface vibration
Requires 11V to 52V DC phantom power
UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)

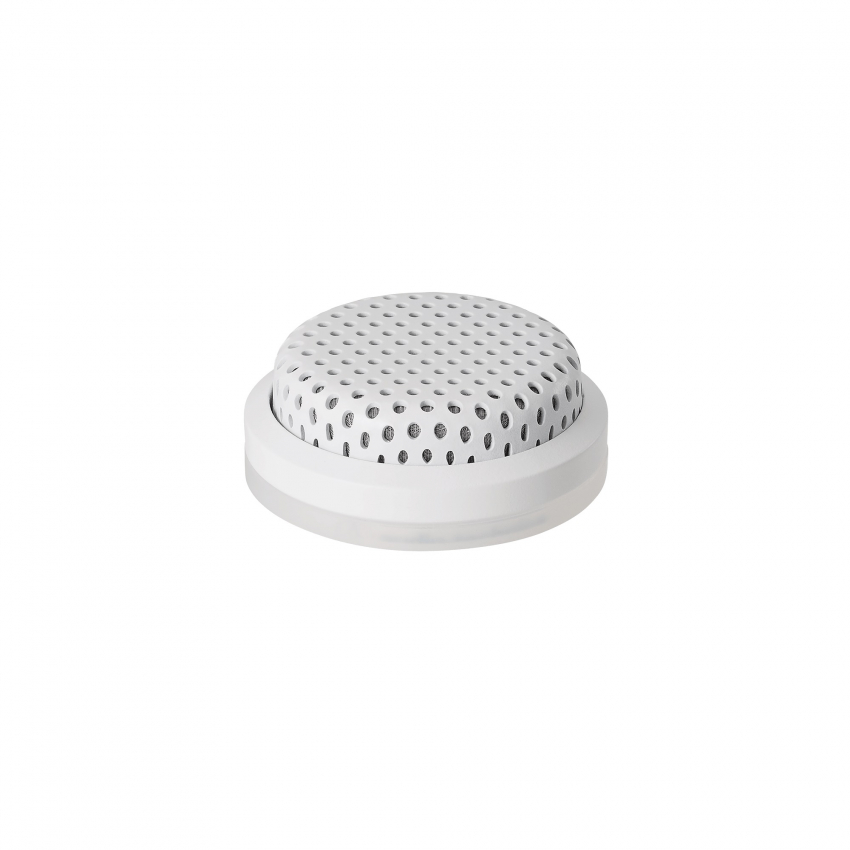

Available in two colors: black (ES945O/XLR) and white (ES945WO/XLR)
RoHS compliant—free from all substances specified in the EU directive on hazardous substances

Specifications

Microphone
Element	Fixed-charge back plate, permanently polarized condenser
Polar Pattern	Omnidirectional
Frequency Response	60-15,000 Hz
Open Circuit Sensitivity	-33 dB (0 dB = 1V/Pa, 1 kHz)
Output Impedance	100 ohms
Maximum Input Sound Level	130 dB SPL (1 kHz at 1% THD)
Dynamic Range	(Typical) 109 dB (1 kHz at max SPL)
Signal-to-Noise Ratio	73 dB (1 kHz at 1 Pa, A-weighted)
Power Requirements	11-52V DC, 2 mA
Weight	62 g (2.2 oz)
Dimensions	69.0 mm (2.72") long, 28.0 mm (1.10") head diameter
Output Connector	3-pin XLRM-type
Accessories Included	Rubber isolator (x 2), nut
