5-pin XLR Power modul, bordsfot, för ES925 svanhals, två RGB LED
Artikelnr:ES8766RC
Tillverkarens artikelnr:ES8766RC
EAN:5055145754146
Fråga ett proffs!
Kim Lindberg
+46(0)10-188 25 62
kim@audiovision.se
Produktinformationexpand_more

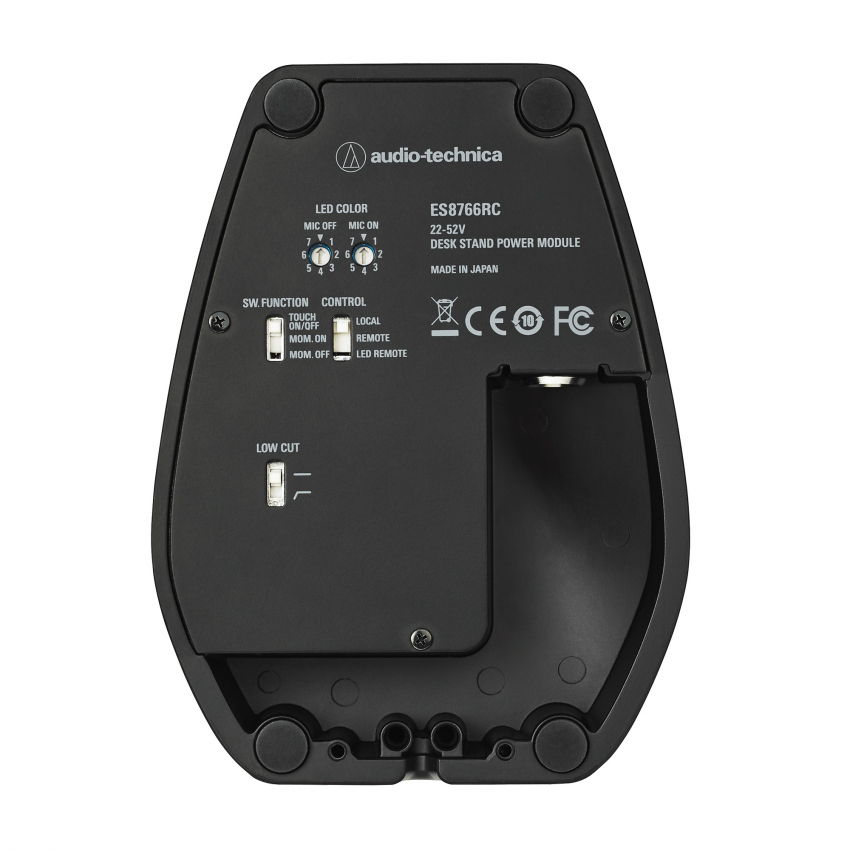

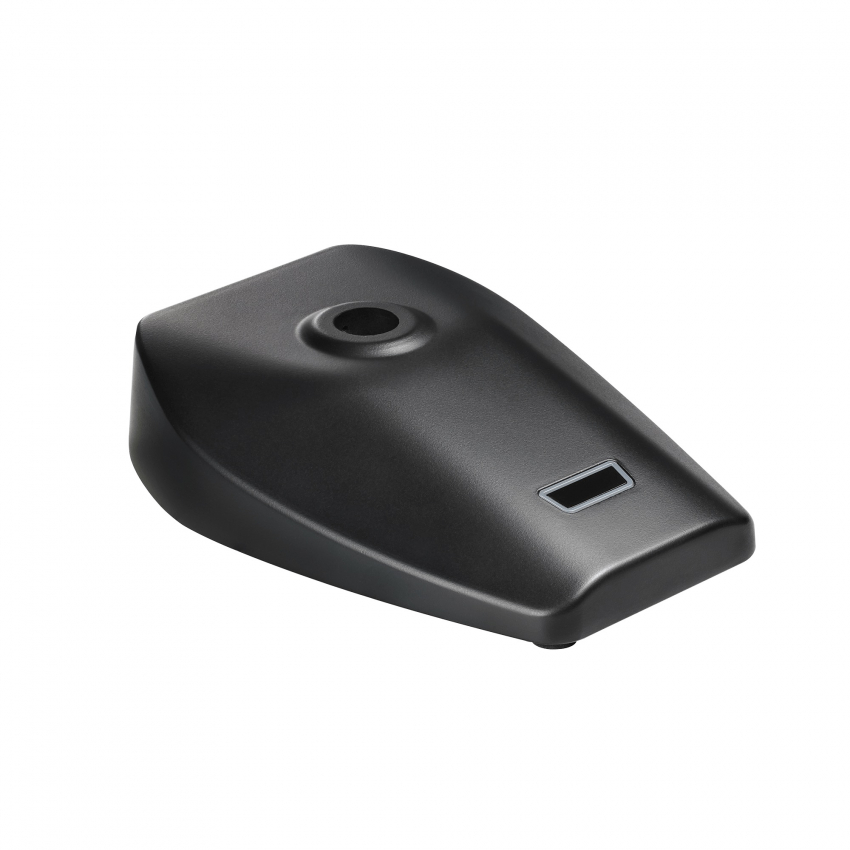

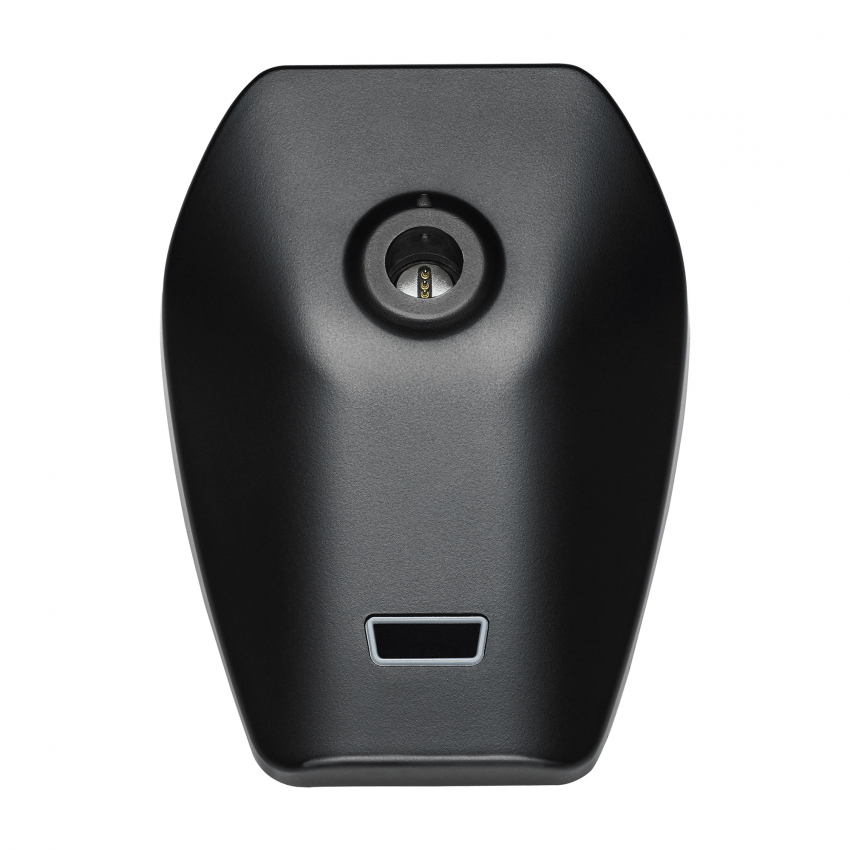

The ES8766RC desk stand power module works with ES925 goosenecks and microphone elements. The desk stand features a 5-pin TB5M-type output connector, heavy die-cast construction, and no-slip bottom pads to minimize coupling of surface vibration to the microphone. It is equipped with a touch-sensitive capacitive-type user switch with local and remote switching options. Locally, it can be set to any one of three operating modes: “touch-on/touch-off,” “touch-to-talk” and “touch-to-mute.” For enhanced control in conference and boardroom installations, the unit’s external contact closure allows you to trigger an external device, such as a camera or the lighting, from the switch. The desk stand is also equipped with a highly visible, two-state RGB LED status indicator and a UniSteep® filter that provides steep low-frequency attenuation to improve sound pickup without affecting vocal reproduction quality. Specifications Low-Frequency Roll-Off: 80 Hz, 18 dB/octaveImpedance: 130 ohms Switches: Activation: on/off LED Color: mic on, mic off Switch function: touch on/off, momentary on, momentary off Control: local, remote, LED remote Low cut: on/off Phantom Power Requirements: 22-52V DC Contact Closure: Closure input voltage: -0.5 – 5.5V Maximum permissible power: 200 mW On-resistance: 100 ohms LED control: Active high (+5V DC) TTL compatible Active low voltage: 1.2V or lower Maximum permissible input power: -0.5 – 5.5V Maximum permissible power: 200 mW Weight: 640 g (22.6 oz) Dimensions: 97.0 mm (3.82") W x 130.0 mm (5.12") D x 33 mm (1.30") H Output Connector: TB5M-type Accessories Furnished: 7.6 m (24.9') microphone cable (TA5F, unterminated) set screw (M2 x 2) hex wrench
5-pin desk stand power module for use with ES925 goosenecks and microphone elements
Logic I/O capability permits control of remote devices from the desk stand’s touch-sensitive capacitive-type user switch
Capacitive touch switch can be set to any one of three operating modes: “touch-on/touch-off,” “touch-to-talk” and “touch-to-mute”

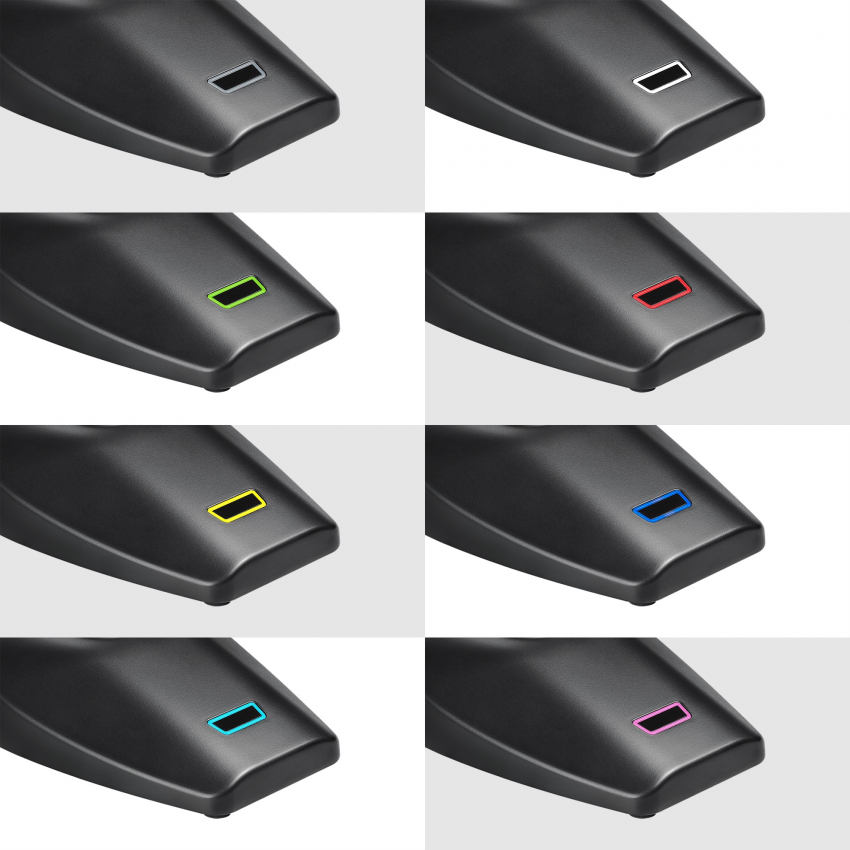

Equipped with highly visible, two-state RGB LED status indicator
Integral UniSteep® filter provides steep low-frequency attenuation to improve sound pickup without affecting voice quality
Heavy die-cast construction and no-slip bottom pads minimize coupling of surface vibration to the microphone
Garantierexpand_more
24 månaders garanti på de flesta produkterna.
60 månaders garanti på utvalda produktserier (ATUC-, ATDM-, ATND- samt Engineered Sound Wired ES9XX).
Livstids garanti på premium live-/studiosortimentet (40-Serien, 50-Serien, Artist Serien och Artist Elite Serien).
*Engineered Sound Wireless (ESW) har 24 månaders garanti.
