BP4071 Line + gradient condenser microphone, 395 mm. Designed for use in broadcasting, film/TV production, and theater with Direct-coupled, balanced output ensures a clean signal. Innovative acoustic design, same directivity as mics up to 50% longer.

BP4071

for extremely focussed sound capture

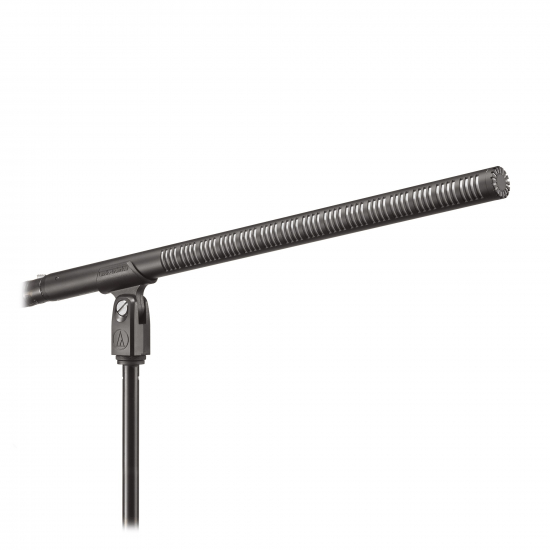

At a length of 39.5 cm, the directional BP4071 shotgun microphone has been specially designed to meet the needs of broadcast, film, television, recording outdoors and theater applications. Particularly suitable for long-distance sound recording in filmmaking or in theatre, the BP4071 ensures a low noise level and a balanced Direct-coupled output resulting in a clear and clean signal, even in high-output conditions.

395 mm shotgun microphone designed to deliver quality sound in reporting, producing TV / Film and Theatre
Excels in long distance quality sound recording
Highly directional, it captures perfectly all frequency ranges (20Hz to 20kHz)
Perfect intelligibility even in noisy environments, thanks to excellent off-axis noise rejection
"Double Wave Diaphragm" proprietary technology offers high sensitivity with low self noise
Direct-coupled output with active balancing which ensures a signal without distortion at high output levels
80Hz low-cut filter, with a slope of 18dB / octave and -10dB switchable attenuator
Effective protection against nearby mobile phone interference and other unwanted radio frequency
Comes equipped with a foam windscreen

“low-cut filter”

The low-cut position reduces sensitivity to ambient low frequency noise such as traffic noise, ventilation, reverberation of the room or mechanical vibrations transmitted through the recording device.

“CLEAR AND PRECISE CAPTURE OF DISTANT AUDIO”

Particularly suitable for long-distance sound recording for cinema or in the theatre, the BP4071 ensures low self noise and a balanced Direct-coupled output resulting in an accurate and clean signal even in high-output conditions.

“High intelligibility”

The microphone's very narrow directivity provides the narrow acceptance angle needed to catch remote sound while maintaining excellent off-axis noise rejection. The BP4071 guarantees you very specific audio capture with high intelligibility.

Robust body

Robust microphone design made of lightweight aluminum alloy, which allows it to be positioned it on a boom, a camera or on a tripod.

low-cut filter

Switchable low-cut filter for better insulation of unwanted noise.

Line + gradient

The BP4071 combines a directional capsule (gradient) and an interference tube to remove the sound from the rear.

Accessories

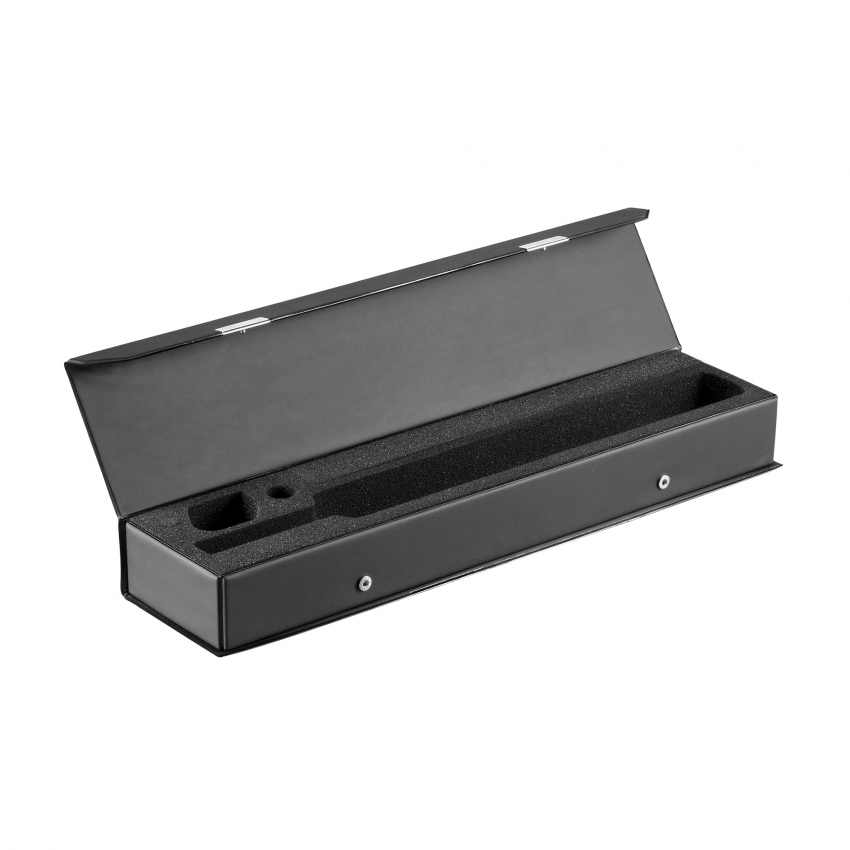

Comes with a clip, a foam windscreen, two O-rings and a protective carry case.

Specifications

Microphones
Element	Externally polarized (DC bias) condenser
Polar Pattern	Line + gradient
Frequency Response	20-20,000 hz
Low Frequency Roll Off	80 Hz, 18 dB/octave
Open Circuit Sensitivity	- 29 dB (35.5mV), re 1V at 1 Pa
Maximum Input Sound Level	141 dB SPL, 1 kHz at 1% T.H.D. 151 dB SPL, with 10 dB pad (nominal)
Dynamic Range	128 dB, 1 kHz at Max. SPL
Signal-to-Noise Ratio	81 dB, 1 kHz at 1 Pa
Phantom Power Requirements	48V DC, 4.8 mA typical
Switches	Flat, roll-off 10 dB pad (nominal)
Weight	136 g
Dimensions	L 395mm Ø㺕mm maxi body
Output Connector	Integral 3-pin XLRM-type
Accessories Included	AT8405a stand clamp for 5/8”-27 threaded stands 5/8”-27 to 3/8”-16 threaded adapter AT8147 windscreen protective carrying case two O-Rings
