Designed for broadcasters, videographers and sound recordists
Compact, lightweight design is perfect for camera-mount use
Independent Line-cardioid and Figure-of-eight condenser elements
Switchable low-frequency roll-off
Switch selection of non-matrixed M-S mode and two internally-matrixed left/right stereo modes

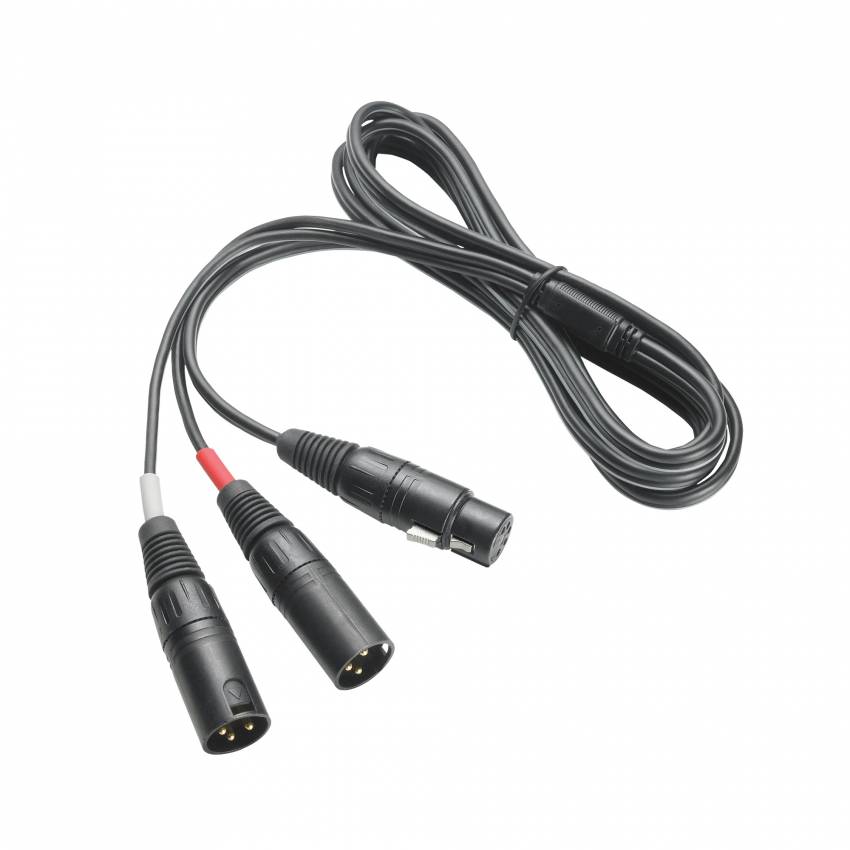

Includes a 0.61 m (24") cable (5-pin XLRF to two standard 3-pin XLRM connectors)
RoHS compliant—free from all substances specified in the EU directive on hazardous substances

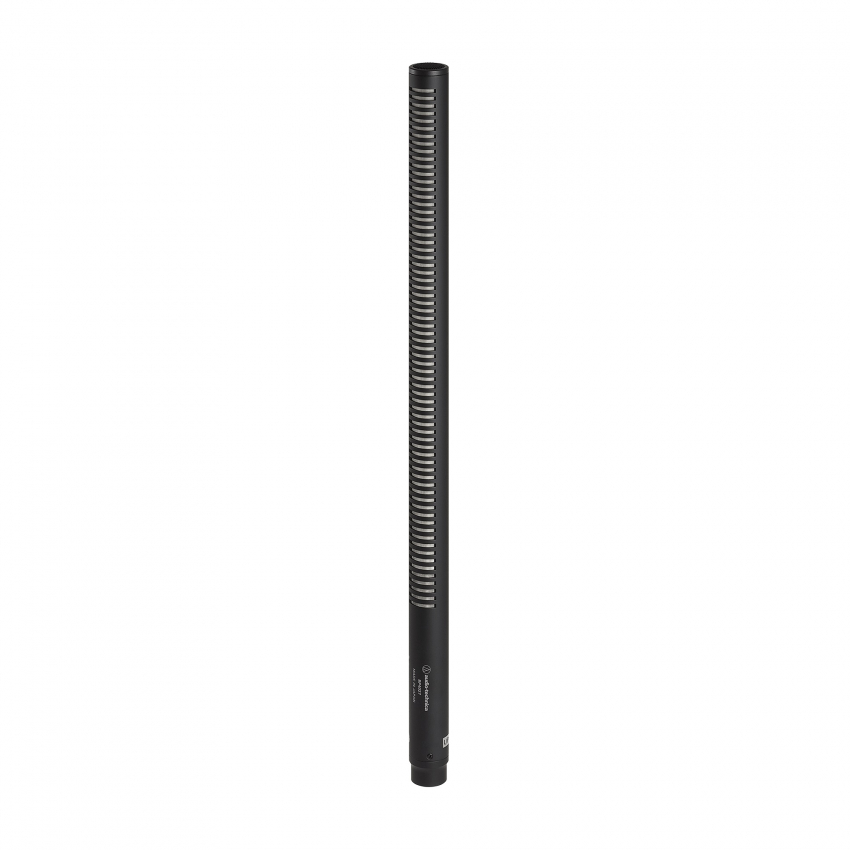

Based on models originally developed for use in the broadcast of the Sydney Games in 2000, the BP4027 (14.96" long) and BP4029 (9.29" long) Stereo Shotgun models are engineered for high-end broadcast and production use. Both microphones feature independent line-cardioid and figure-of-eight elements configured in an MS (Mid-Side) arrangement with switch-selectable internal matrixing. These innovative microphones allow sound recordists the choice of selecting a left-right stereo output (wide or narrow) via the microphone’s internal matrixing system or choosing discrete Mid-Side signals for later manipulation, a flexibility not available from any other manufacturer. A switchable low frequency roll-off filter helps minimize the pickup of unwanted low frequency noise. These phantom-powered models feature a rugged lightweight design and sleek black color scheme, perfect for on-camera use.

Specifications

Microphones
Element	Fixed-charge back plate, permanently polarized condenser
Polar Pattern	Line-cardioid, Figure-of-eight
Frequency Response	30-20,000 Hz
Low Frequency Roll Off	80 Hz, 12 dB/octave
Open Circuit Sensitivity	Mid: -30 dB (31.6 mV) re 1V at 1 Pa Side: -34 dB (19.9 mV) re 1V at 1 Pa LR Stereo: -36 dB (15.8 mV) re 1V at 1 Pa
Maximum Input Sound Level	Mid: 123 dB SPL, 1 kHz at 1% T.H.D. Side: 127 dB SPL, 1 kHz at 1% T.H.D. LR Stereo: 126 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range	Mid: 101 dB, 1 kHz at Max SPL Side: 101 dB, 1 kHz at Max SPL LR Stereo: 102 dB, 1 kHz at Max SPL
Signal-to-Noise Ratio	Mid: 72 dB SPL, 1 kHz at 1 Pa Side: 68 dB SPL, 1 kHz at 1 Pa LR Stereo: 70 dB SPL, 1 kHz at 1 Pa
Phantom Power Requirements	11-52V DC, 4 mA typical at 48V, each channel
Switches	M-S, LR Stereo-Wide (LR-W), LR Stereo-Narrow (LR-N) Flat, roll-off
Weight	142 g (5.0 oz)
Cable	Dual 0.61 m (24") shielded two-conductor, terminated in two XLR3M-type connectors
Dimensions	380.0 mm (14.96") long, 21.0 mm (0.83") diameter
Output Connector	Integral XLR5M-type

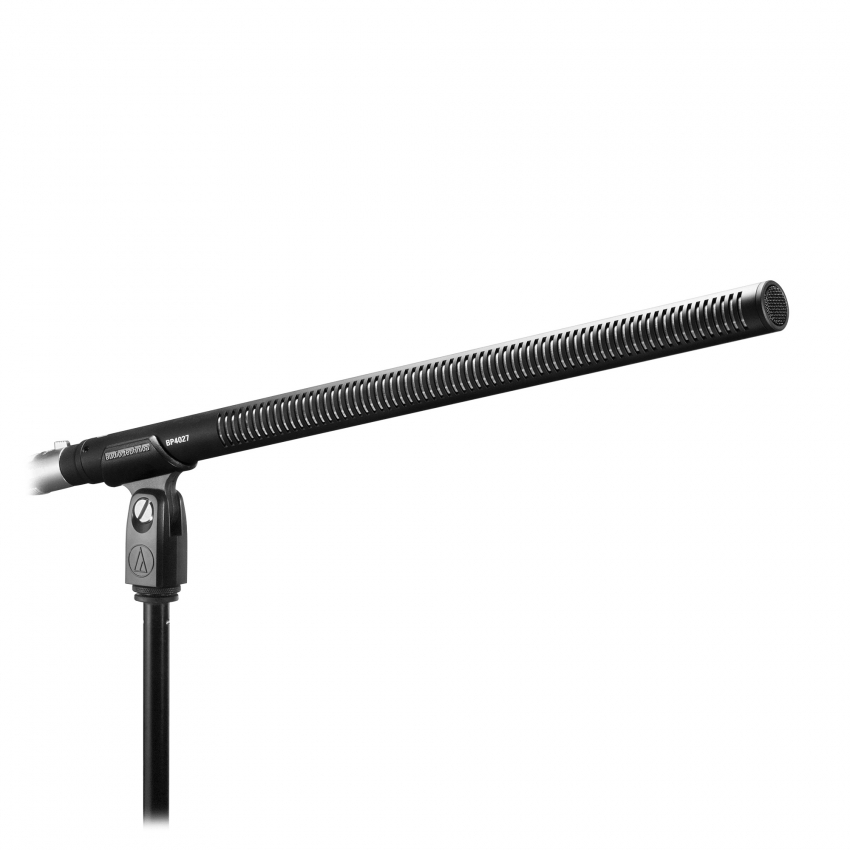

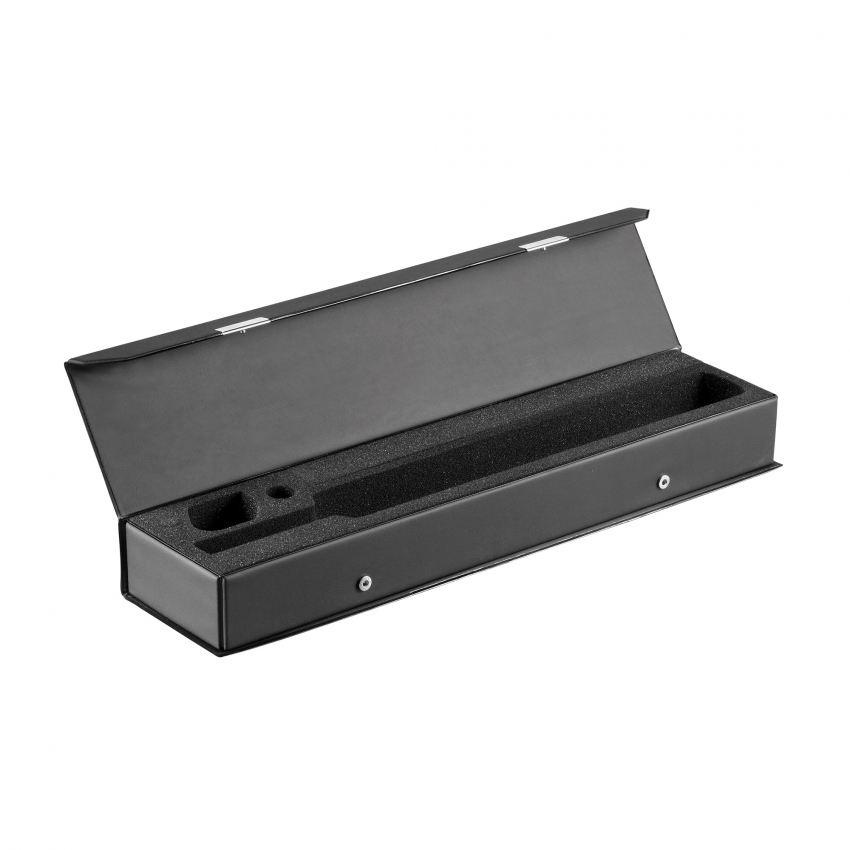

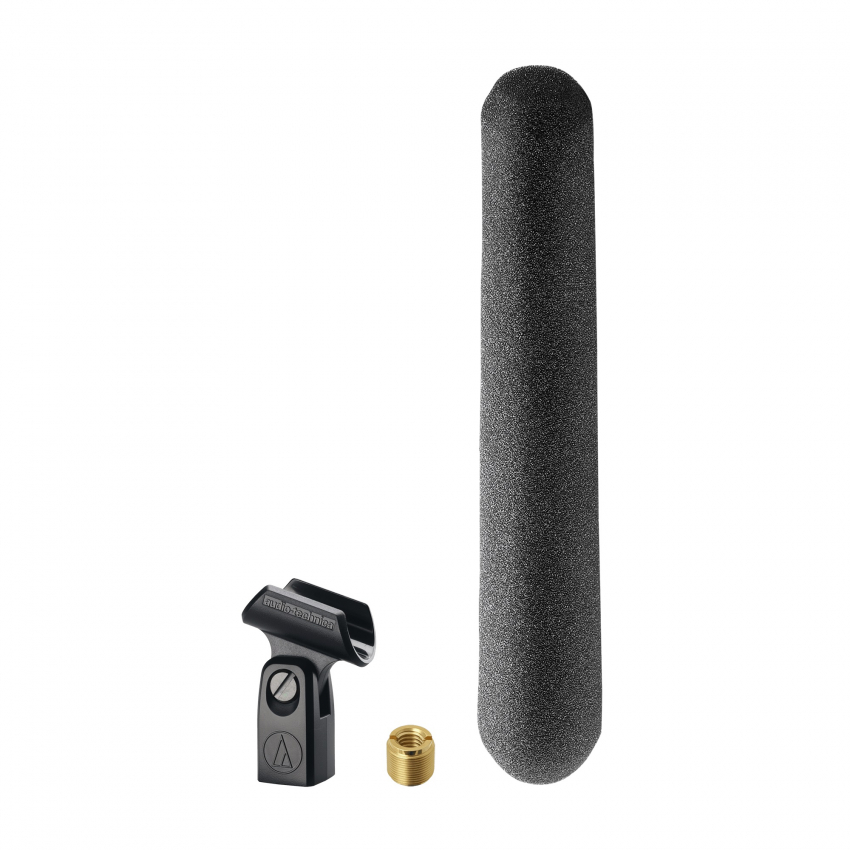

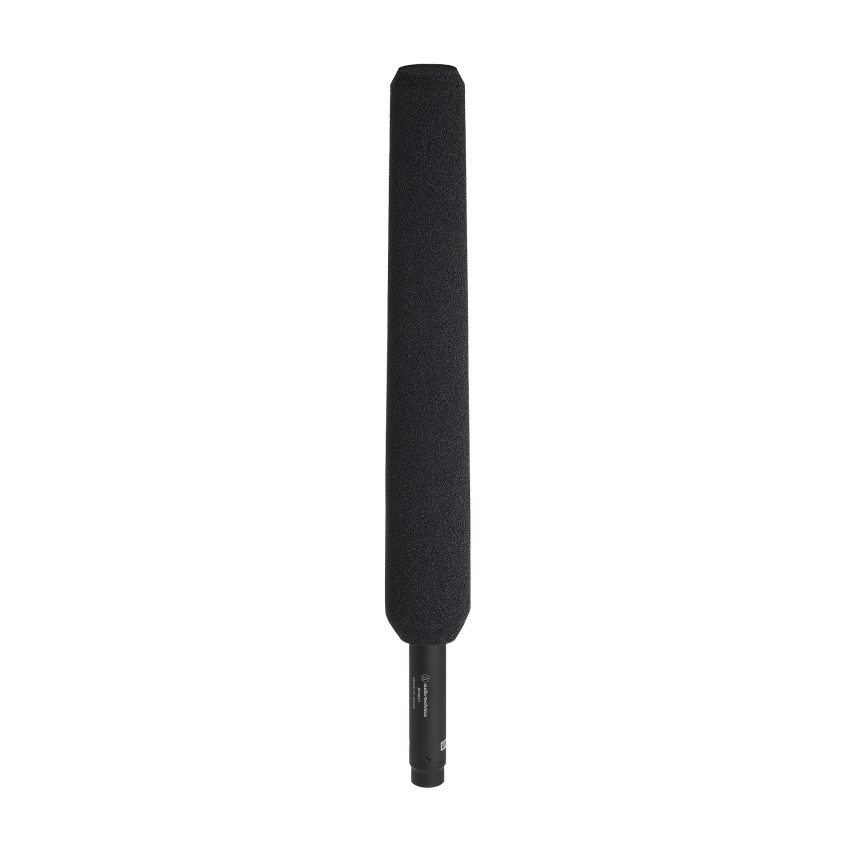

Accessories Included	AT8405a stand clamp for 5/8"-27 threaded stands AT8135 foam windscreen 5/8"-27 to 3/8"-16 threaded adapter protective carrying case
