The Attero Tech by QSC Axon D2FLEXio provides cost-effective analog audio connectivity for integration into network AV systems such as the Q-SYS Ecosystem. Each analog audio I/O features a selectable switch to assign input or output audio connectivity. This flexibility provides a single product solution for cost-effective analog audio conversion to and from any Dante/AES67 system.

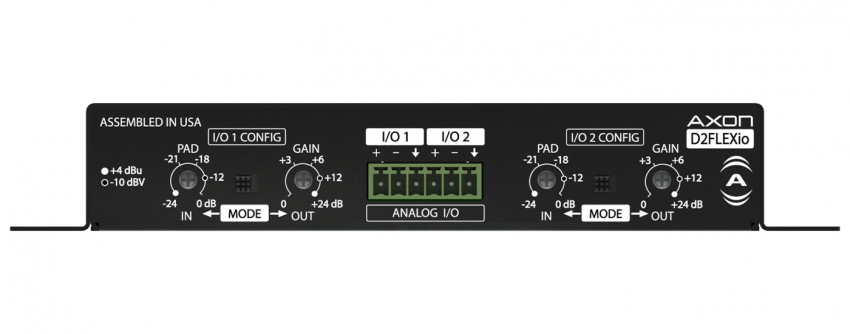

Key Features • Dual analog flex I/O, selectable via recessed slide switches (2x0, 1x1, 0x2) • I/O trim potentiometers for accommodating professional and consumer audio line levels • 44.1, 48, 88.2, 96 kHz, 24 bit audio conversion to and from a Dante network • Supports Dante Domain Manager • Small form factor with integrated mounting tabs • PoE or DC powered • Retrofit connectivity for non-networked AV equipment to and from a Dante or AES67 audio network, including: • Power amplifiers and powered speakers • Wireless microphone receivers • In-ear monitor transmitters • Electronic instruments and DJ equipment • Mixers, DSPs and other audio signal processing gear Specifications:
Audio Inputs (when selected) I/O type 2x switchable balanced and RF filtered 3-pin de-pluggable terminal blocks Maximum Input levels 0 dBu to +24 dBu line-level (pad attenuation 0 to -24 dB Dynamic range >= 100 dB (20 - 22 kHz)
Audio Outputs (when selected) I/O type Two switchable Balanced and RF filtered 3-pin de-pluggable Maximum Output Level 0 dBu to +24 dBu (0 to +24 dB gain range) Dynamic Range >= 95 dB (20 - 22 kHz) @ any output gain

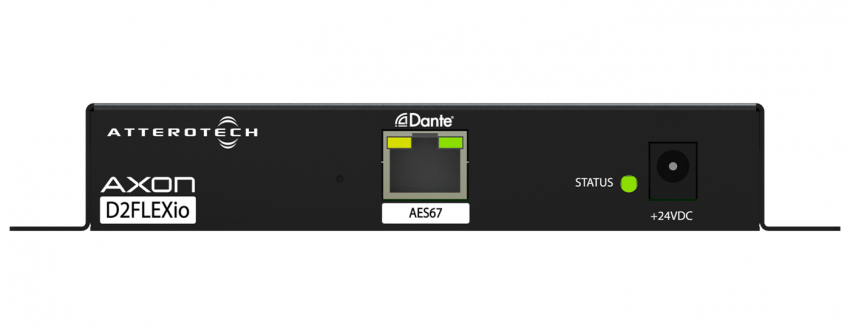

Dante/AES67 Network Physical layer Ethernet Connector(s) RJ-45 Cable quality CAT-5e or greater, UTP Supported bit rates 16, 24 Supported sample rates 44.1 kHz, 48 kHz (default), 88.2 kHz, 96 kHz AES67 support AES67, SAP based stream discovery
Power PoE power 802.3af Class 0
Garantierexpand_more
36 månaders garanti på samtliga produkter.
Om varumärketexpand_more
Attero Tech var en amerikansk tillverkare specialiserad på nätverksbaserade ljud- och kontrollgränssnitt för fasta AV-installationer, numera ingår varumärket i Q-SYS sortiment. Företaget är särskilt känt för sina kompakta, installerbara enheter för Dante™- och AES67-baserade ljudsystem, vilket förenklar anslutning av mikrofoner, linjesignaler och styrning i professionella miljöer som konferensrum, utbildningslokaler och arenor.
