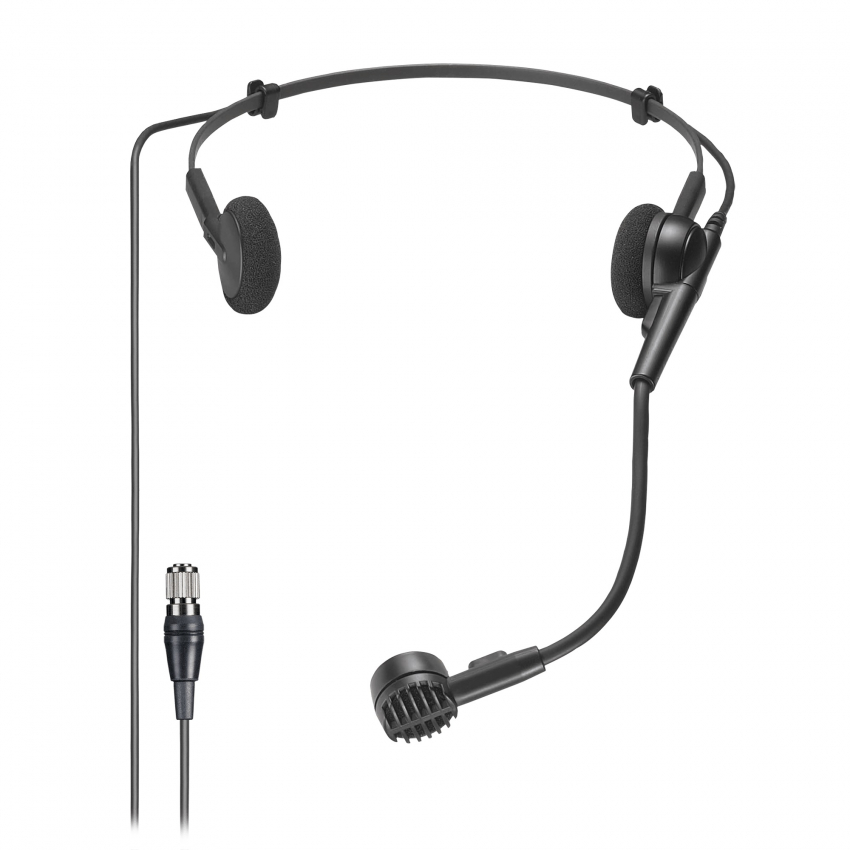

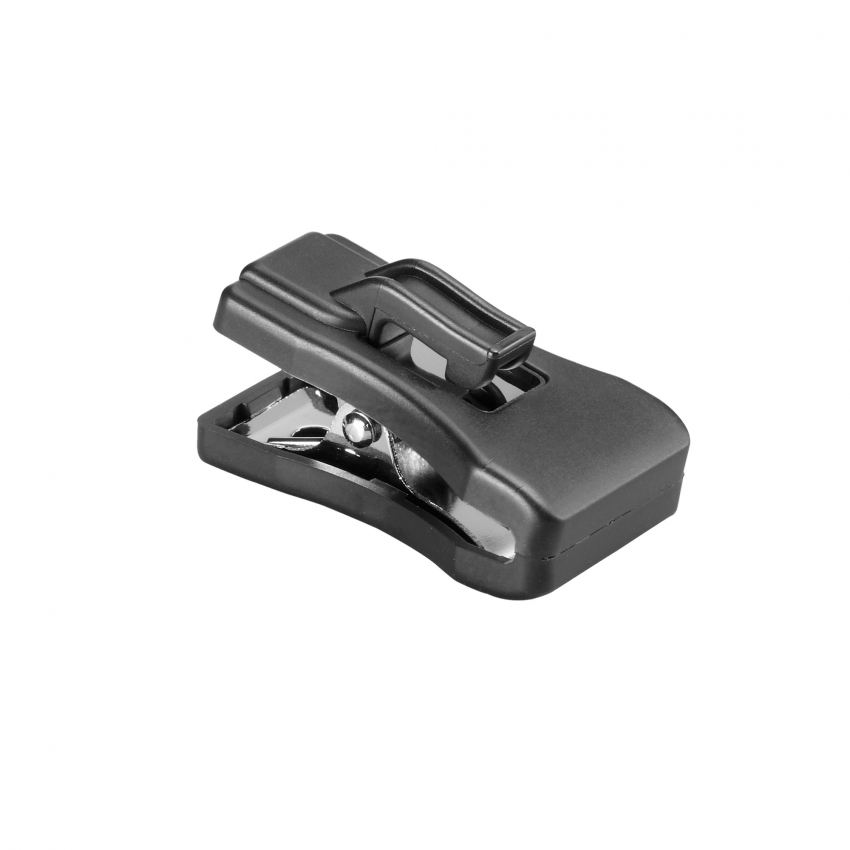

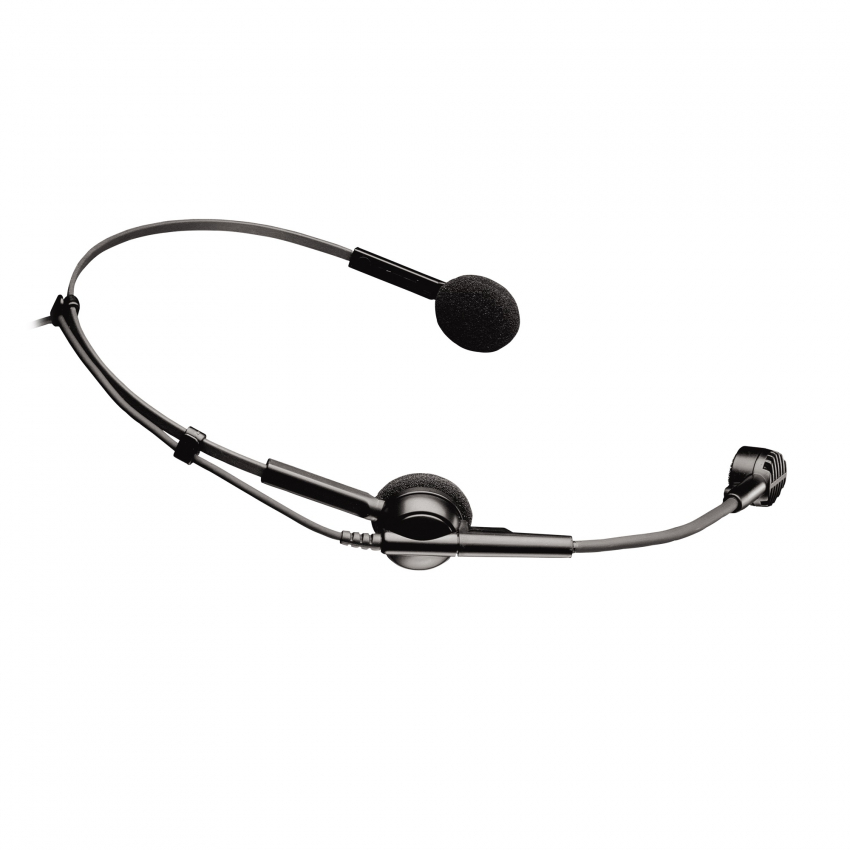

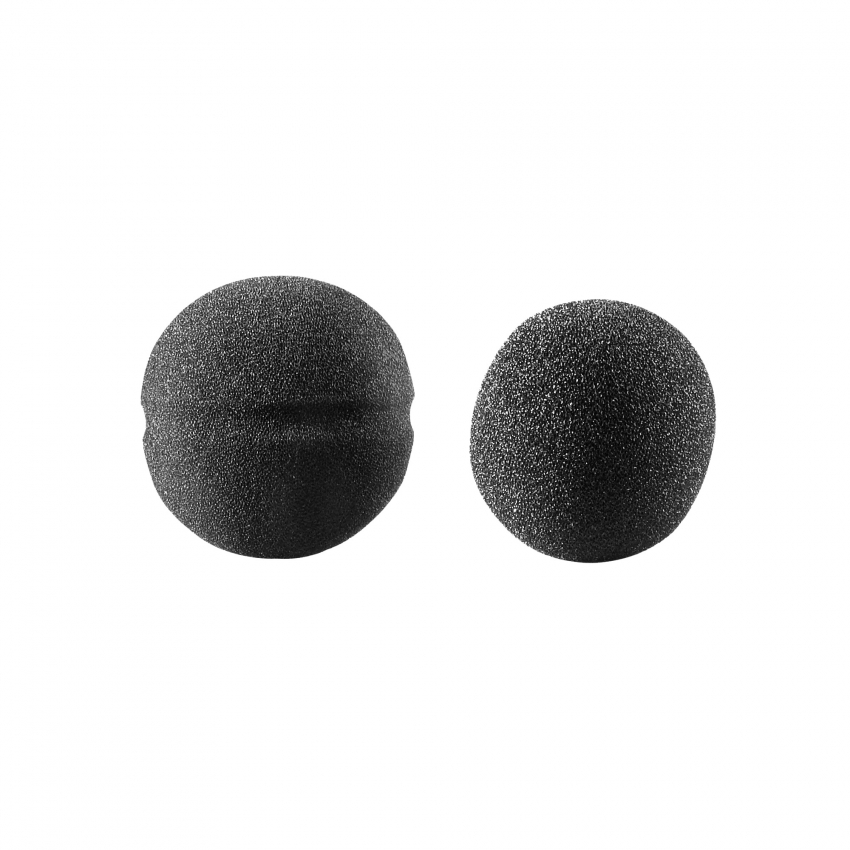

With a pivot-mounted flexible boom that can be positioned on either the left or right side of the head, the ATM75 headworn microphone delivers professional-quality vocal pickup with hands-free operation. Includes AT8139L large windscreen, AT8139S small windscreen, and AT8439 cable clip.

Available configurations:

ATM75cH: 55" (1.4 m) permanently attached miniature cable terminated with a screw-down 4-pin connector for use with Audio-Technica cH-style body-pack wireless transmitters.

ATM75cW: 55" (1.4 m) permanently attached miniature cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style body-pack wireless transmitters.

ATM75c: 7.2’ (2.2 m) permanently attached miniature cable (unterminated).

Professional-quality vocal pickup with hands-free operation
Low-visibility headband provides stable, comfortable fit
Pivot-mounted flexible microphone
Cardioid polar pattern improves isolation of desired sound source

Microphones
Element	Fixed-charge back plate, permanently polarized condenser
Polar Pattern	Cardioid
Frequency Response	100 - 13,000 Hz
Low Frequency Roll Off	80 Hz, 18 dB/octave (wired only)
Open Circuit Sensitivity	Phantom: -51 dB (2.8 mV) re 1V at 1 Pa Battery: -53 dB (2.2 mV) re 1V at 1 Pa
Maximum Input Sound Level	Phantom: 132 dB SPL, 1 kHz at 1% T.H.D. Battery: 121 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range	Phantom: 96 dB, 1 kHz at Max SPL Battery: 85 dB, 1 kHz at Max SPL (wired only)
Signal-to-Noise Ratio	58 dB, 1 kHz at 1 Pa
Phantom Power Requirements	11-52V DC, 2 mA typical
Battery Type	1.5V AA/UM3
Battery Current/Life	0.4 mA / 2000 hours typical (alkaline) (wired only)
Switches	Off, on-flat, on-roll-off (wired only)
Weight	Microphone: 60 g (2.1 oz) Power module: 139 g (4.9 oz)
Cable	4.6' (1.4 m) long (permanently attached to microphone), 0.11" (2.8 mm) diameter, 2-conductor shielded cable (termination dependent)
Dimensions	Microphone: 20.4 mm (0.80") diameter Power module (wired only): 84.0 mm (3.31") H x 63.0 mm (2.48") W x 22.0 mm (0.87") D Headset: 120.0 mm (4.72") nominal at widest point, 80.5 mm (3.17") flexible boom
Output Connector	Power module: Integral 3-pin XLRM-type (wired only)
Accessories Included	AT8531 power module (wired only) AT8439 clothing clip AT8139L large windscreen AT8139S small windscreen battery (wired only)

Garantierexpand_more

24 månaders garanti på de flesta produkterna.

60 månaders garanti på utvalda produktserier (ATUC-, ATDM-, ATND- samt Engineered Sound Wired ES9XX).

Livstids garanti på premium live-/studiosortimentet (40-Serien, 50-Serien, Artist Serien och Artist Elite Serien).

*Engineered Sound Wireless (ESW) har 24 månaders garanti.

Om varumärketexpand_more

Audio-Technica är ett japanskt företag med global närvaro, välkänt för sina högkvalitativa ljudprodukter. Inom området Commercial Audio erbjuder de ett dedikerat sortiment av professionella lösningar för fasta installationer i mötesrum, utbildningsmiljöer, kyrkor, domstolar och andra offentliga eller företagsrelaterade sammanhang.
