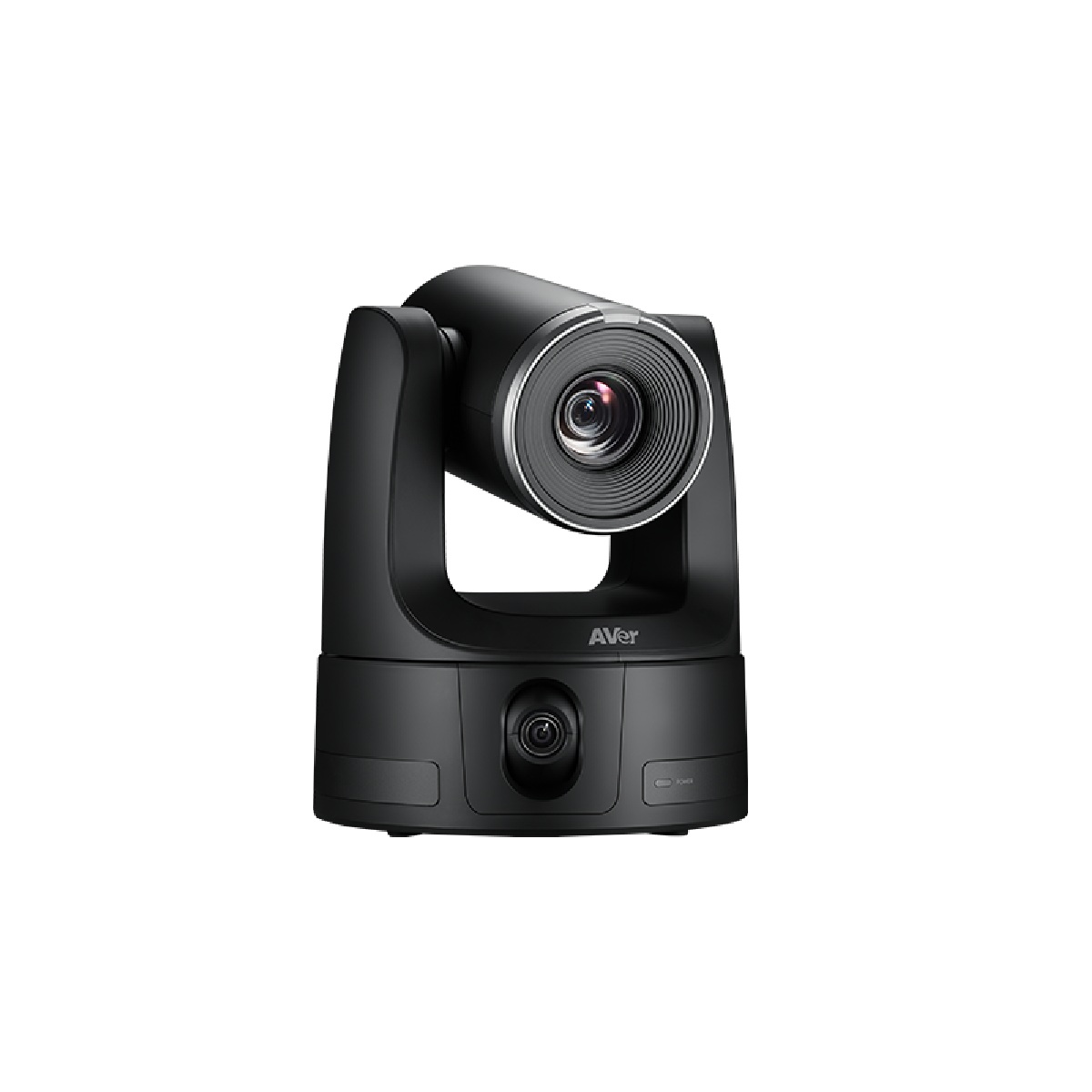

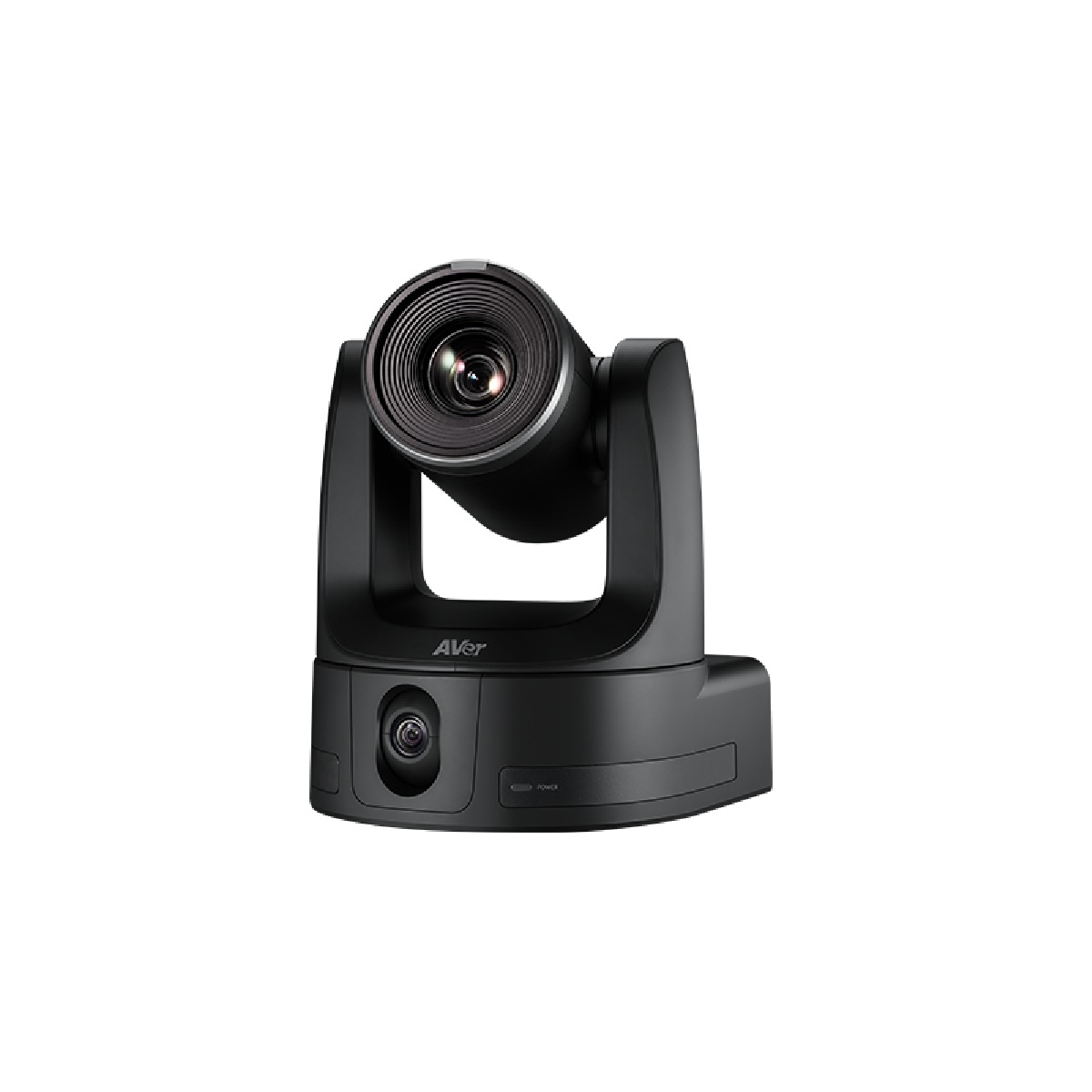

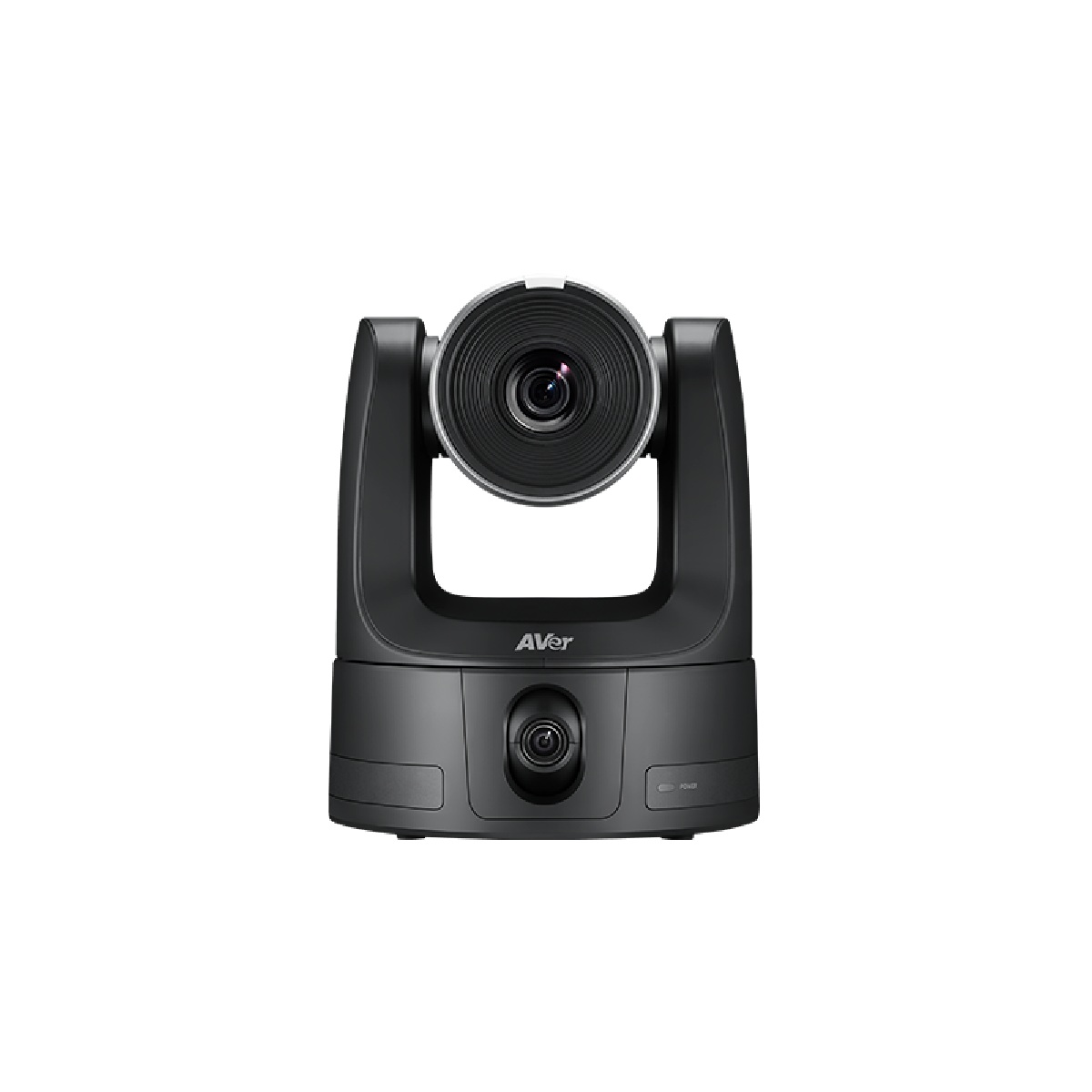

Dual Lens Auto Tracking Camera
Enter the future of streaming excellence with AVer’s TR535, featuring AI auto tracking capabilities for diverse applications. The TR535 offers a stellar 30X zoom and a sweeping wide-angle view. The wide-angle lens captures the whole scene while the 4K PTZ camera zooms in for close-ups, ensuring complete coverage. Fueled by four advanced AI-driven tracking modes, the TR535 delivers unparalleled precision for broadcasting, streaming, and recording environments.

Specifications
PTZ Camera
Image Sensor
1/2.8” 4K Sony Exmor CMOS
Effective Picture Elements
8 Megapixels
Output Resolutions
4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination
0.5 lux (IRE50, F1.6, 30fps)
S/N Ratio
≥ 50 dB
Gain
Auto, Manual
TV Lines
1600 (Center)
Shutter Speed
1/1 to 1/10,000 sec
Exposure Control
Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance
Auto, Manual, ATW, One Push, Indoor, Outdoor
Optical Zoom
30X
Digital Zoom
12X
Total Zoom
360X
Viewing Angles
DFOV: 69.2° (Wide) to 2.8° (Tele)
HFOV: 62.3° (Wide) to 2.5° (Tele)
VFOV: 37.3° (Wide) to 1.4° (Tele)
Focal Length
f = 4.5 mm (Wide) to 135 mm (Tele)
Aperture (Iris)
F = 1.8 (Wide) to 4.7 (Tele)
Minimum Working Distance
0.1 m (Wide)
1.2 m (Tele)
Pan / Tilt Angles
Pan : ±170°
Tilt : +90° / -30°
Pan / Tilt Speed (Manual)
Pan : 0.1° to 100° / sec
Tilt : 0.1° to 100° / sec
Preset Speed
Pan : 200° / sec
Tilt : 200° / sec
Preset Positions
10 (IR)
256 (RS-232, RS-422, IP)
Camera Control - Interfaces
RS-232 (DIN8)
RS-422 (RJ45)
IP
USB
Camera Control - Protocols
VISCA (RS-232 / RS-422 / IP)
PELCO-D & PELCO-P (RS-232 / RS-422)
CGI (IP)
USB
ONVIF
Image Processing
Noise Reduction (2D / 3D)
Flip
Mirror
WDR
BLC
Power Frequencies
50 Hz, 60 Hz

Wide Angle Camera
Image Sensor
1/2.8” 4K Sony Low Lux CMOS
Effective Picture Elements
8 Megapixels
Output Resolutions
4K/30
Focal Length
2.22 mm
White Balance
Auto
Exposure
Auto
Viewing Angles
DFOV: 113°
HFOV: 105°
VFOV: 71°
Pan / Tilt Angles
Tilt: +18° / -90°
AI Auto Tracking Functions
Tracking Modes
Presenter Mode
Zone Mode
Hybrid Mode
Segment Mode

Privacy Protection Mechanisms
Protection Mode
Sleep Mode

Audio
Channels
2ch Stereo
Codecs
AAC-LC (48 K)
Sample Rates
48 KHz

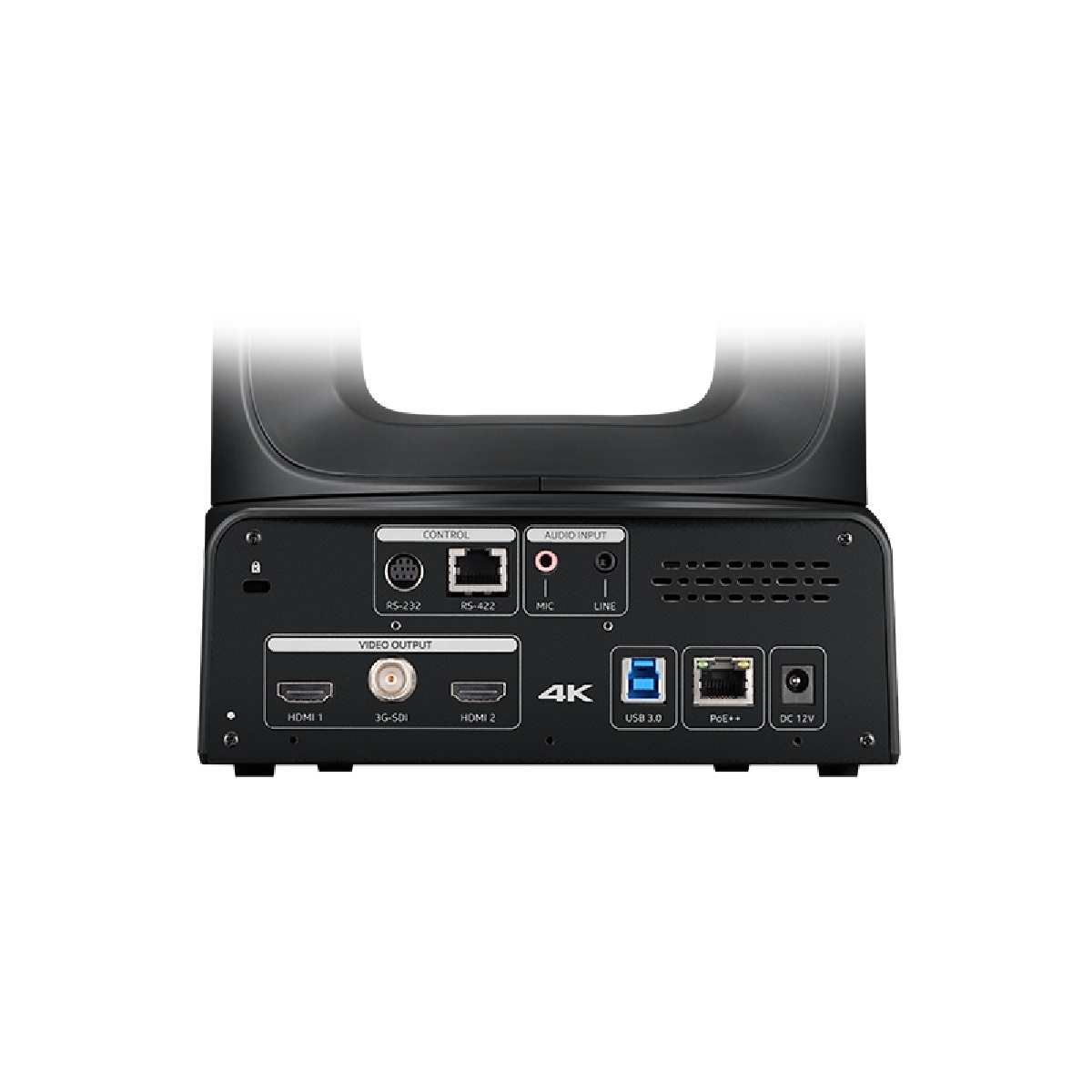

Interface
Video Outputs
3G-SDI, HDMI x 2, IP, USB
Audio Outputs
3G-SDI, HDMI x 2, IP, USB
Audio Inputs
MIC in, Line in

General
Power Requirement
AC 100 - 240V to DC 12V/5A
Power Consumption
29W
PoE
PoE++
Dimensions (W x H x D)
202.5 x 250.7 x 218.5 mm
Net Weight
3.6 (±0.1) kg
Application
Indoor
Tally Lamp
Yes
Security
Kensington Slot
Remote Control
Infrared
Operating Conditions
Temperature: 0 °C to +40 °C
Humidity: 20% to 80%
Storage Conditions
Temperature : -20 °C to +60 °C
Humidity: 20% to 95%
Sustainability
Plastic Material: ABS
Sustainability Method: PCR-PC
Recycled Content %: 30%
IP Streaming
Resolution
4K 60fps
Network Video Compress Formats
H.264, H.265, MJPEG
Network Audio Compress Formats
AAC-LC (48 K)
Maximum Frame Rate
2160p 60fps
Bit-Rate Control Modes
VBR, CBR (selectable)
Range of Bit-Rate Setting
512 Kbps to 64 Mbps
Network Interface
10 / 100 / 1000 / 2500 Base-T
Multi-Stream Capability
NDI® Mode: 10 / Dante AV-H Mode: 8
4K (NDI® Mode): RTSP (x2), HDMI (x2), USB (x2), NDI® High Bandwidth (x1), & NDI® HX2 (x2)
4K (Dante AV-H Mode): RTSP (x2), HDMI (x2), USB (x2), Dante AV-H (x1)
1080p: 3G-SDI
Network Protocols
IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
NDI®High Bandwidth
Yes
NDI®HX2
Yes
NDI®Genlock
N/A
NDI®Embedded Bridge
N/A
Dante AV-H
Yes
Camera Tracking Data Output
Supports Free-D Type D0 / D1

USB
Connector
USB 3.2 Gen 1
Video Formats
MJPEG, YUY2
Audio Format
PCM
Maximum Video Resolution
2160p
USB Video Class (UVC)
UVC 1.1
USB Audio Class (UAC)
UAC 1.0
Web UI
Live Video Preview
Yes
Camera PTZ Control
Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image Adjustment
Exposure, White Balance, Picture
Network Configuration
DHCP, IP Address, Gateway, Subnet Mask, DNS
Supported Web Browsers
Chrome™, Microsoft Edge, Safari®

Software Tools
IP Search and Configuration Tool
Support Windows® 7 or later
Enterprise Management (PTZ Management)
Support Windows® 10 or later
Control Panel
Supports iOS & iPadOS® 9 or later
PTZ Link
Supports Windows® 7 or later, macOS® 10.14 or later
OBS Plugin for PTZ Cameras
Supports Windows® 8 or later, macOS® High Sierra v10.13 or later
CaptureShare
Supports Windows® 7 or later, macOS® 10.14 or later
Cloud Management
Supports Chrome™ & Microsoft Edge browsers

Warranty
Camera
5 Years
Accessories
1 Year

Package Contents
Camera, Remote Control, RS-232 In/Out Cable, Din 8 To D-Sub 9 Cable, Power Adapter, Power Cord, Cable Tie (x 7), M2 x 4 mm Screw (x 5), M3 x 6 mm Screw (x3), 1/4'-20L 6.5mm Screw (x2), Cable Fixing Plate (x 2), Ceiling Mount Bracket (x 2), Drilling Paper, Quick Start Guide
Optional Accessories
AVer CL01 PTZ Camera Controller, L-Type Wall Mount
