Aver

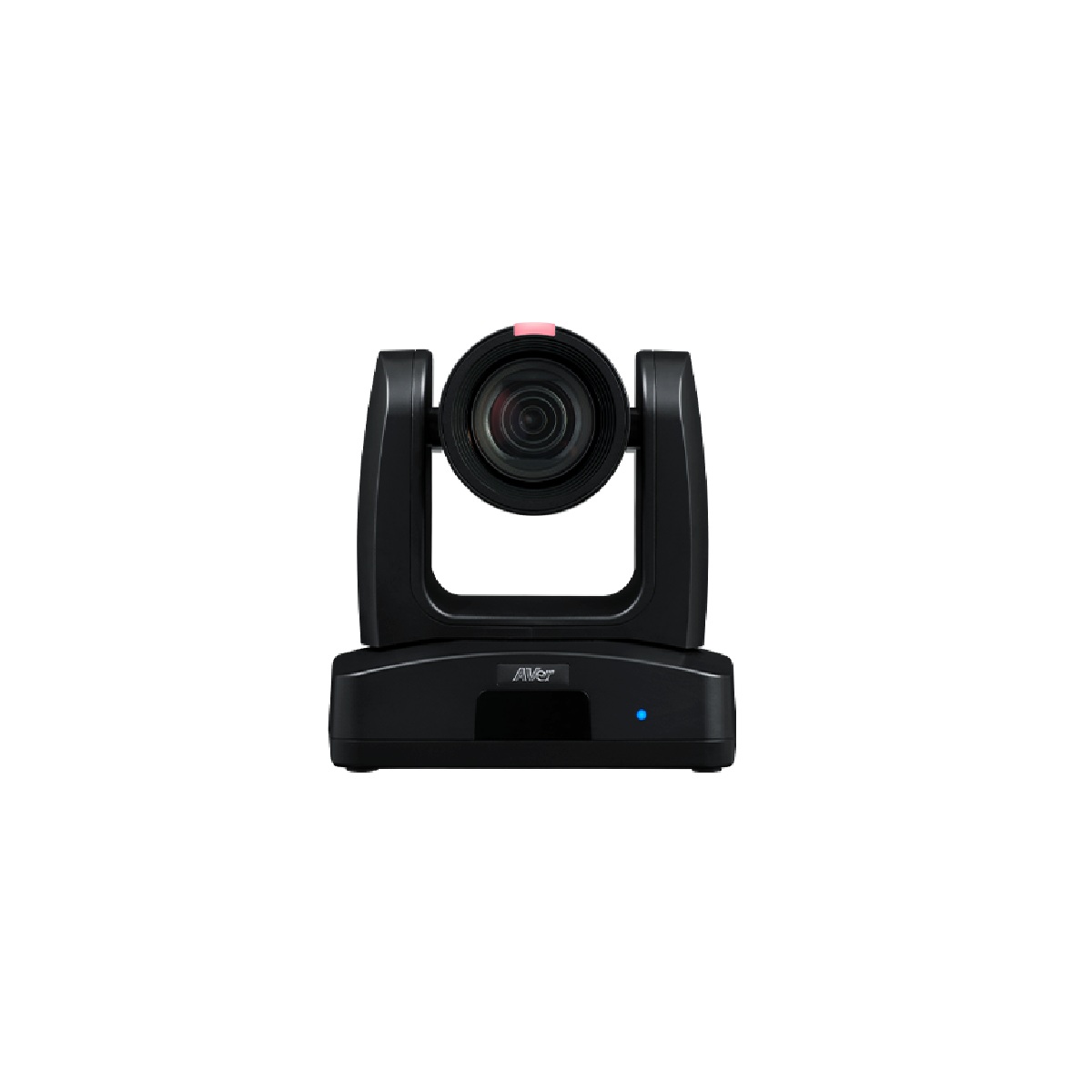

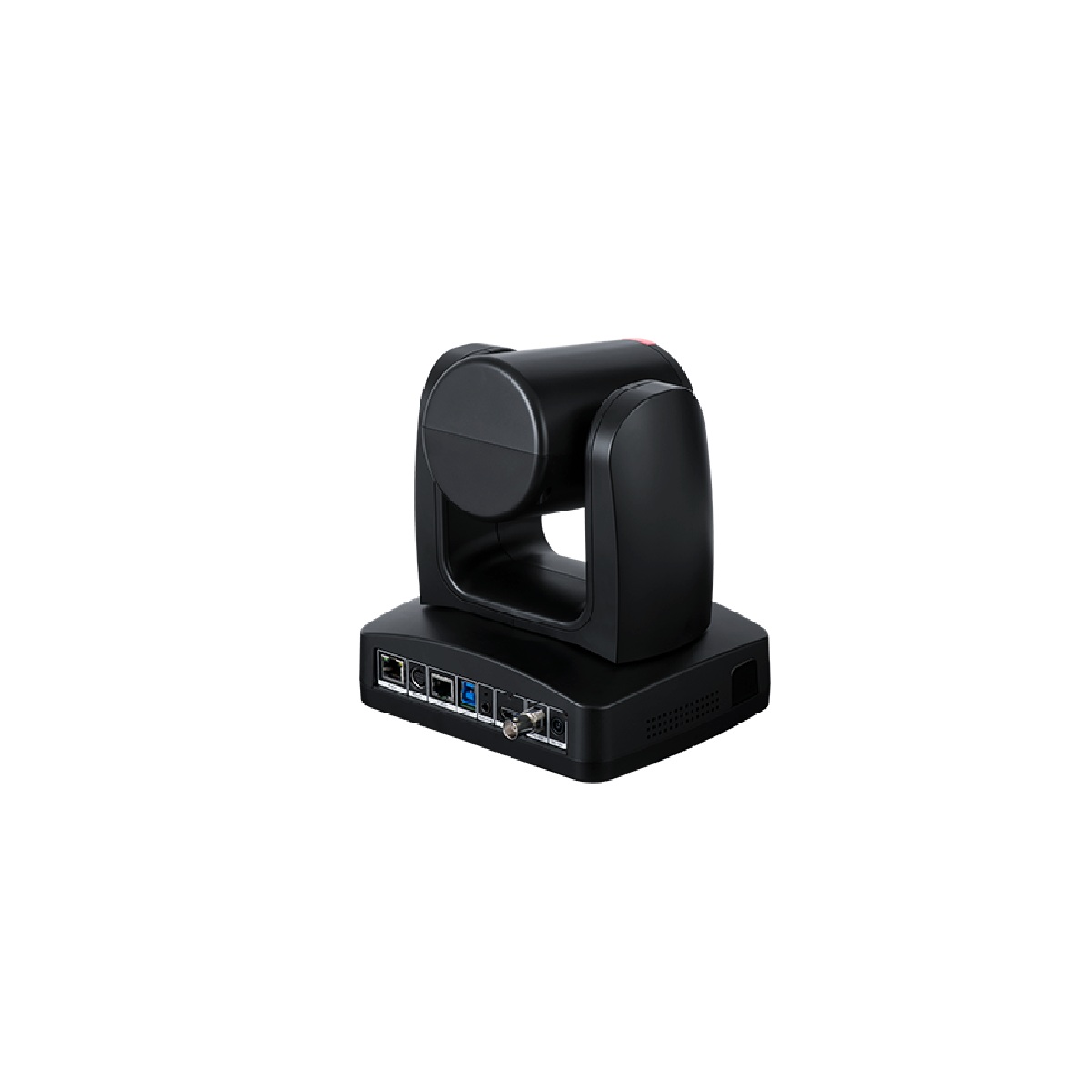

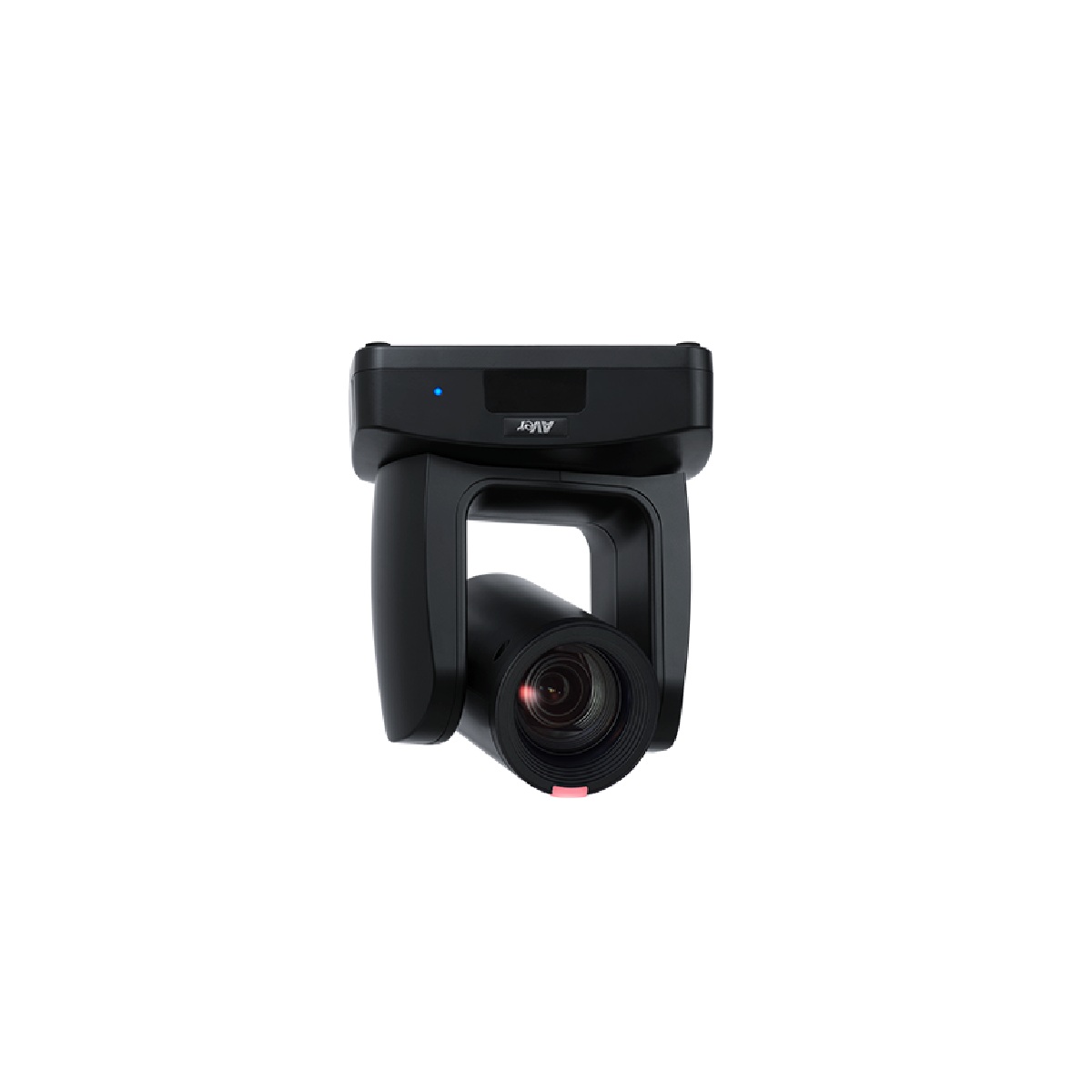

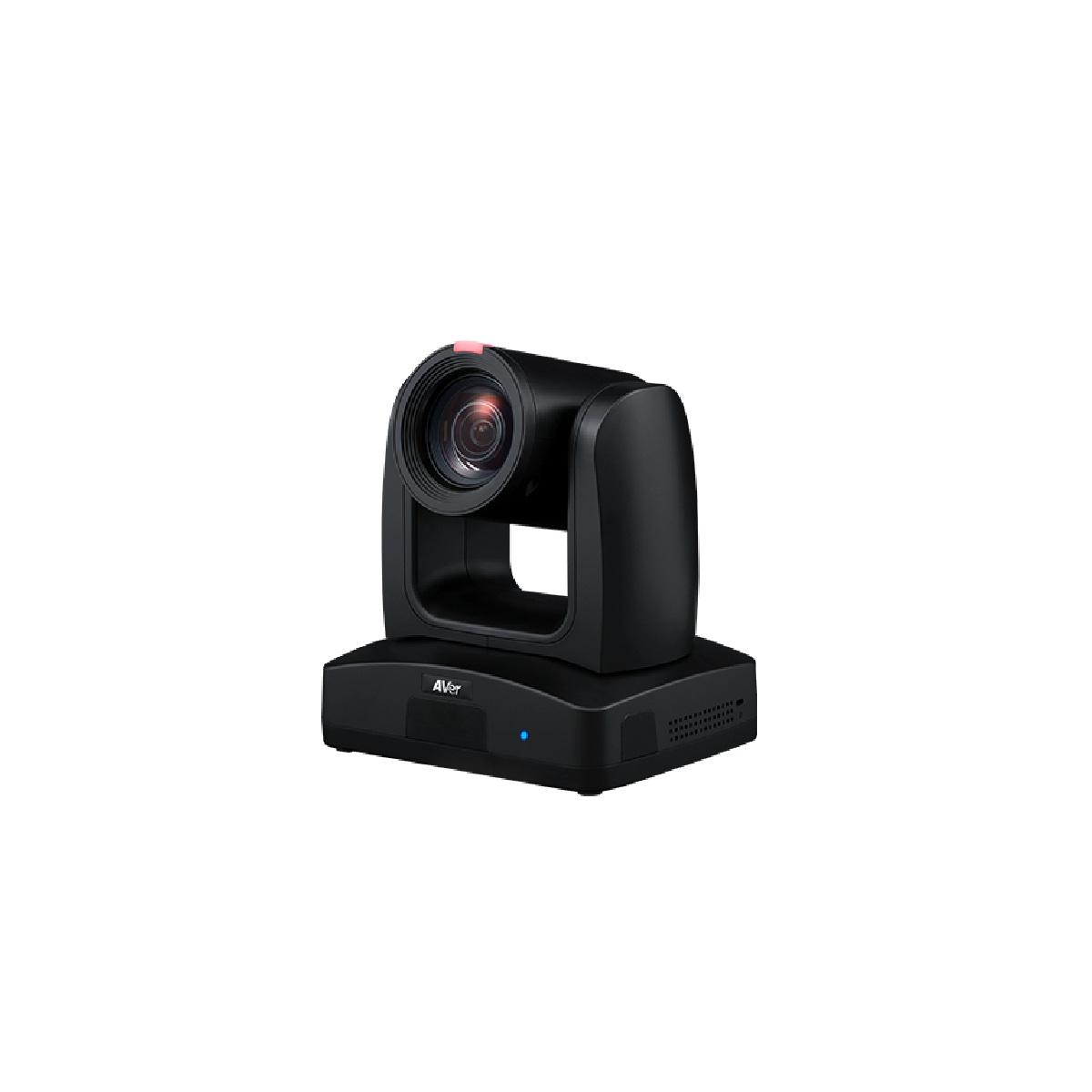

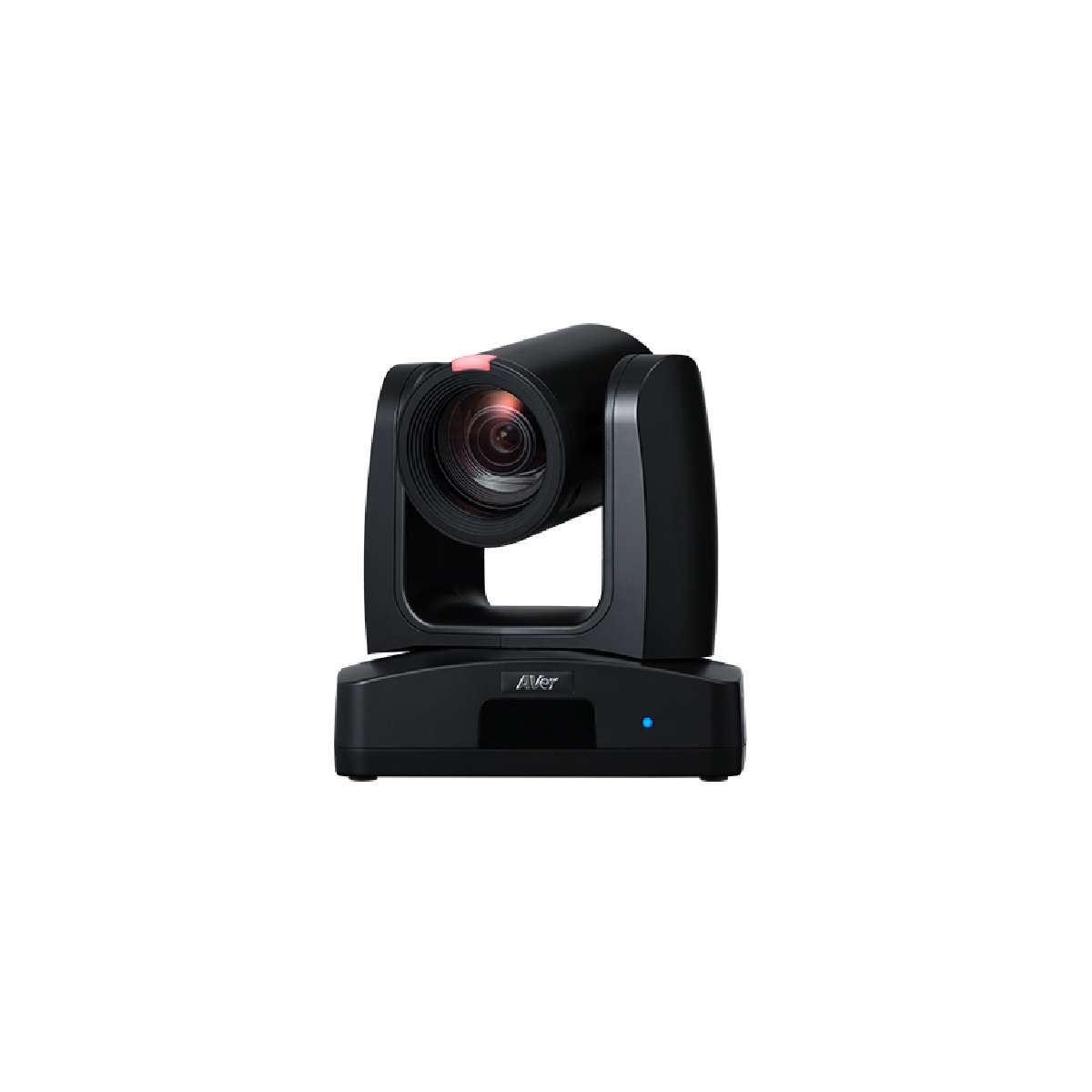

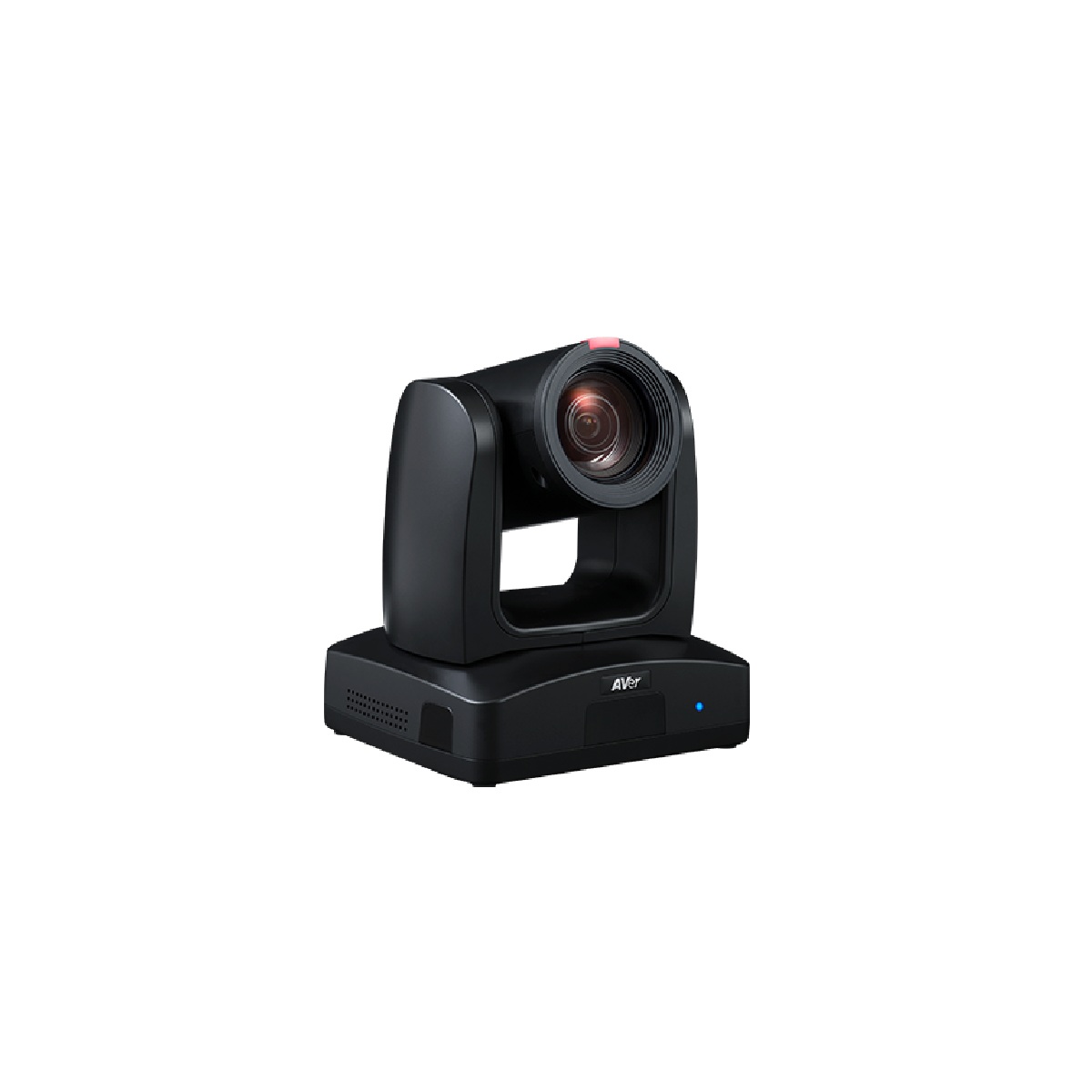

PTZ Kamera 4KP60,HDMI, 3GSDI, USB, IP, NDI HX3, Svart
Artikelnr:AVR-PTZ330UV2B
Tillverkarens artikelnr:PTZ330UV2B
Fråga ett proffs!
John Frisch
+46(0)10-188 25 78
john@audiovision.se
Professional PTZ Camera
Amaze your audience with AVer's PTZ330UV2 — the high-end PTZ camera that gives you full control of your streaming content. With 4K 60 fps HDMI/USB/IP outputs, a 30X optical zoom lens, and SmartShoot functionality, this advanced streaming solution is unmatched. Take your streams to the top and make a lasting impression with the PTZ330UV2!
Specifications
Camera
Image Sensor
1/2.8” 4K Sony Exmor CMOS
Effective Picture Elements
8 Megapixels
Output Resolutions
4K/60, 4K/59.94, 4K/50, 4K/30, 4K/29.97, 4K/25, 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 1080i/60, 1080i/59.94, 1080i/50, 720p/60, 720p/59.94, 720p/50
Minimum Illumination
0.5 lux (IRE50, F1.6, 30fps)
S/N Ratio
≥ 50 dB
Gain
Auto, Manual
TV Lines
1400 (Center/Wide)
Shutter Speed
1/1 to 1/32,000 sec
Exposure Control
Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance
Auto, Manual, ATW, One Push, Indoor, Outdoor
Optical Zoom
30X
Digital Zoom
12X
Total Zoom
360X
Viewing Angles
DFOV: 69.2° (Wide) to 2.8° (Tele)
HFOV: 62.3° (Wide) to 2.5° (Tele)
VFOV: 37.3° (Wide) to 1.4° (Tele)
Focal Length
f = 4.5 mm (Wide) to 135 mm (Tele)
Aperture (Iris)
F = 1.8 (Wide) to 4.7 (Tele)
Minimum Working Distance
0.1 m (Wide)
1.2 m (Tele)
Pan / Tilt Angles
Pan : ±170°
Tilt : +90° / -30°
Pan / Tilt Speed (Manual)
Pan : 0.1° to 100° / sec
Tilt : 0.1° to 100° / sec
Preset Speed
Pan : 200° / sec
Tilt : 200° / sec
Preset Positions
10 (IR)
256 (RS-232, RS-422, IP)
Camera Control - Interfaces
RS-232 (DIN8)
RS-422 (RJ45)
IP
Camera Control - Protocols
VISCA (RS-232 / RS-422 / IP)
PELCO-D & PELCO-P (RS-232 / RS-422)
CGI (IP)
ONVIF
Image Processing
Noise Reduction (2D / 3D)
Flip
Mirror
Power Frequencies
50 Hz, 60 Hz
AI Function
Mode
SmartShoot
Audio
Channels
2ch Stereo
Codecs
AAC-LC
Interface
Video Outputs
3G-SDI, HDMI, IP, USB
Audio Outputs
3G-SDI, HDMI, IP, USB
Audio Inputs
MIC in, Line in
General
Power Requirement
AC 100 - 240V to DC 12V/2A
Power Consumption
19W
PoE
PoE+
Dimensions (W x H x D)
180.0 x 192.0 x 145.0 mm
Net Weight
2.0 (±0.1) kg
Application
Indoor
Tally Lamp
Yes
Security
Kensington Slot
Remote Control
Infrared
Operating Conditions
Temperature : 0 °C to +40 °C ; Humidity : 20% to 80%
Storage Conditions
Temperature : -20 °C to +60 °C ; Humidity: 20% to 95%
IP Streaming
Resolution
4K 60fps
Network Video Compress Formats
H.264, H.265, MJPEG
Maximum Frame Rate
4K 60fps
Bit-Rate Control Modes
VBR, CBR (selectable)
Range of Bit-Rate Setting
512 Kbps to 120 Mbps
Network Interface
10 / 100 / 1000 Base-T
Multi-Stream Capability**
5
4K 60fps: RTSP, HDMI, USB & NDI® HX3 / Dante AV-H
1080p 60fps: 3G-SDI
Network Protocols
IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, HTTPS, DHCP, RTP / RTCP, RTSP, RTMP, SRT, HLS, NDI, LLDP, VISCA over IP
AV over IP Protocols
NDI® HX3 & Dante AV-H
NDI® Genlock
N/A
Camera Tracking Data Output
Supports Free-D Type D0 / D1
USB
Connector
USB 3.1
Video Formats
MJPEG, YUY2
Maximum Video Resolution
2160p
USB Video Class (UVC)
UVC 1.1
USB Audio Class (UAC)
UAC 1.0
Web UI
Live Video Preview
Yes
Camera PTZ Control
Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image Adjustment
Exposure, White Balance, Picture
Network Configuration
DHCP, IP Address, Gateway, Subnet Mask, DNS
Supported Web Browsers
Chrome™, Microsoft Edge, Safari®
Software Tools
IP Search and Configuration Tool
Support Windows® 7 or later
Enterprise Management (PTZ Management)
Supports Windows® 10 or later
Control Panel
Supports iOS & iPadOS® 11 or later
PTZ Link
Supports Windows® 7 or later, macOS® 10.14 or later
OBS Plugin for PTZ Cameras
Supports Windows® 8 or later, macOS® High Sierra v10.13 or later
CaptureShare
Supports Windows® 7 or later, macOS® 10.14 or later
Room Management (PTZApp 2)
Supports Windows® 7 or later, macOS® 11.6 or later
Cloud Management
Supports Chrome™ & Microsoft Edge browsers
Warranty
Camera
5 Years
Accessories
1 Year
Package Contents
Camera, Drilling Paper, Ceiling Mount Bracket (x2), Quick Start Guide, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), DIN 8 to D-Sub 9 Cable, RS-232 In/Out Y Cable, Cable Ties (x4)
Optional Accessories
AVer CL01 PTZ Camera Controller, L-Type Wall Mount
36 månaders garanti på samtliga produkter. Garantin kan kostnadsfritt förlängas med ytterligare 24 månader till totalt 60 månader via registrering av produkten. För mer information om Aver's garantipolicy klicka här.
