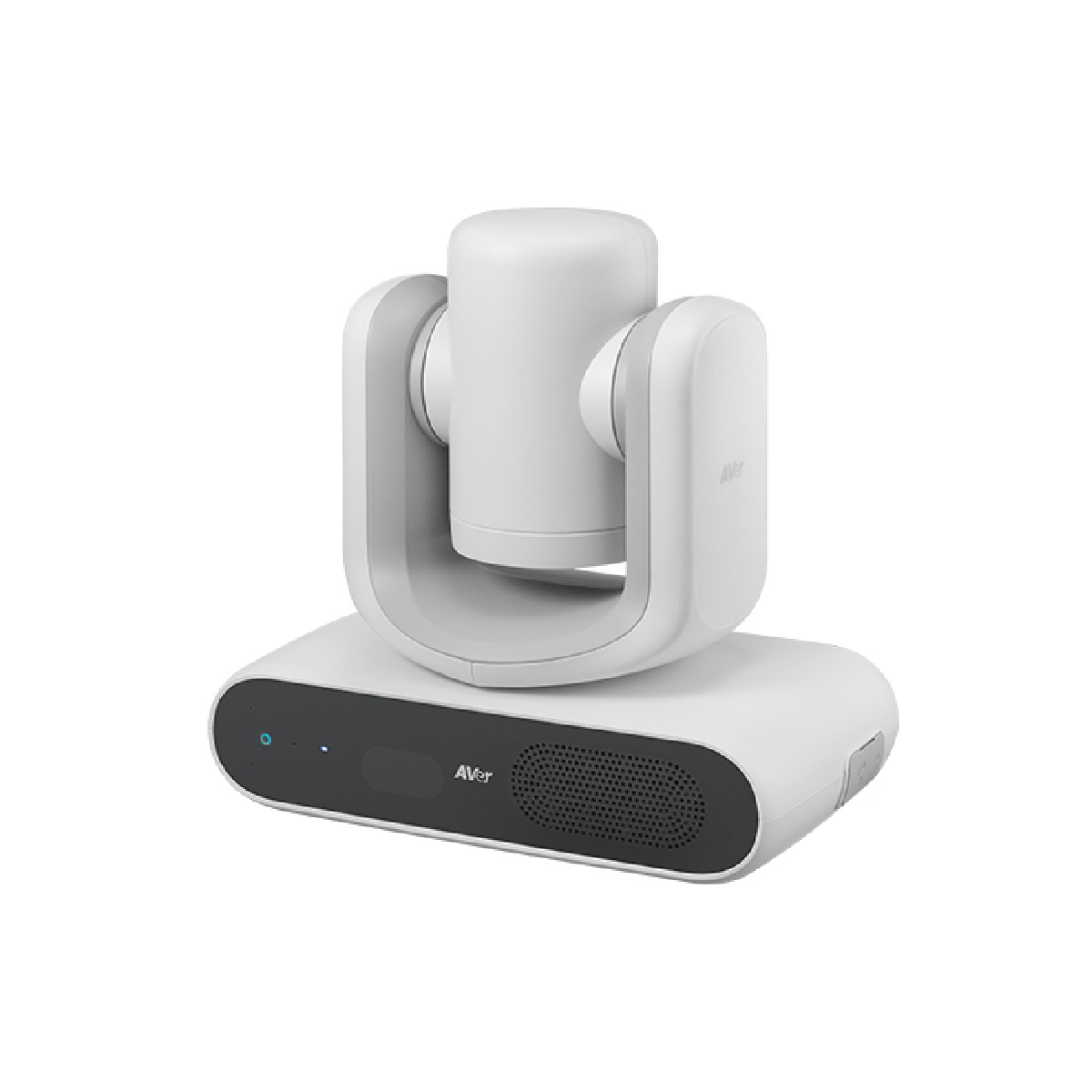

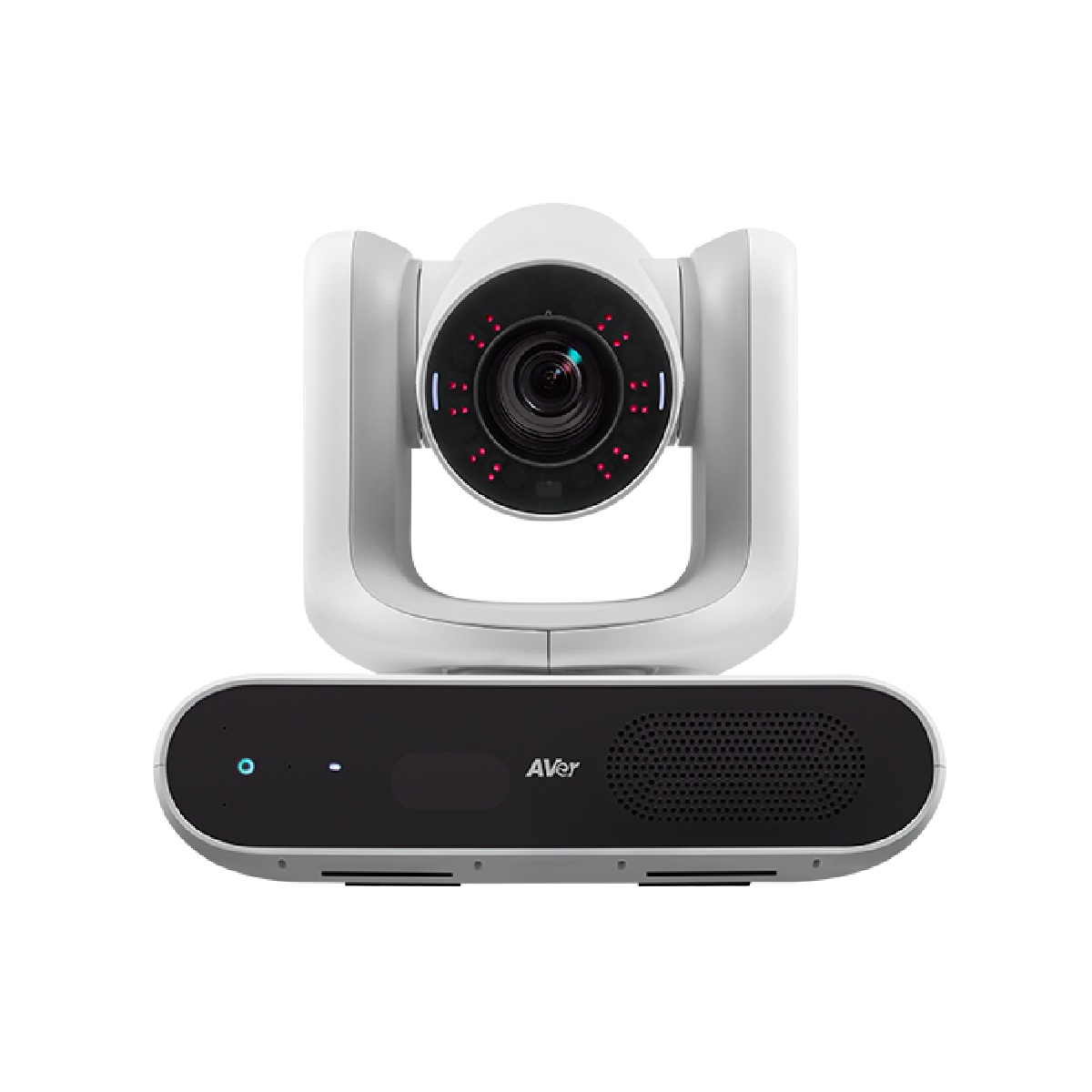

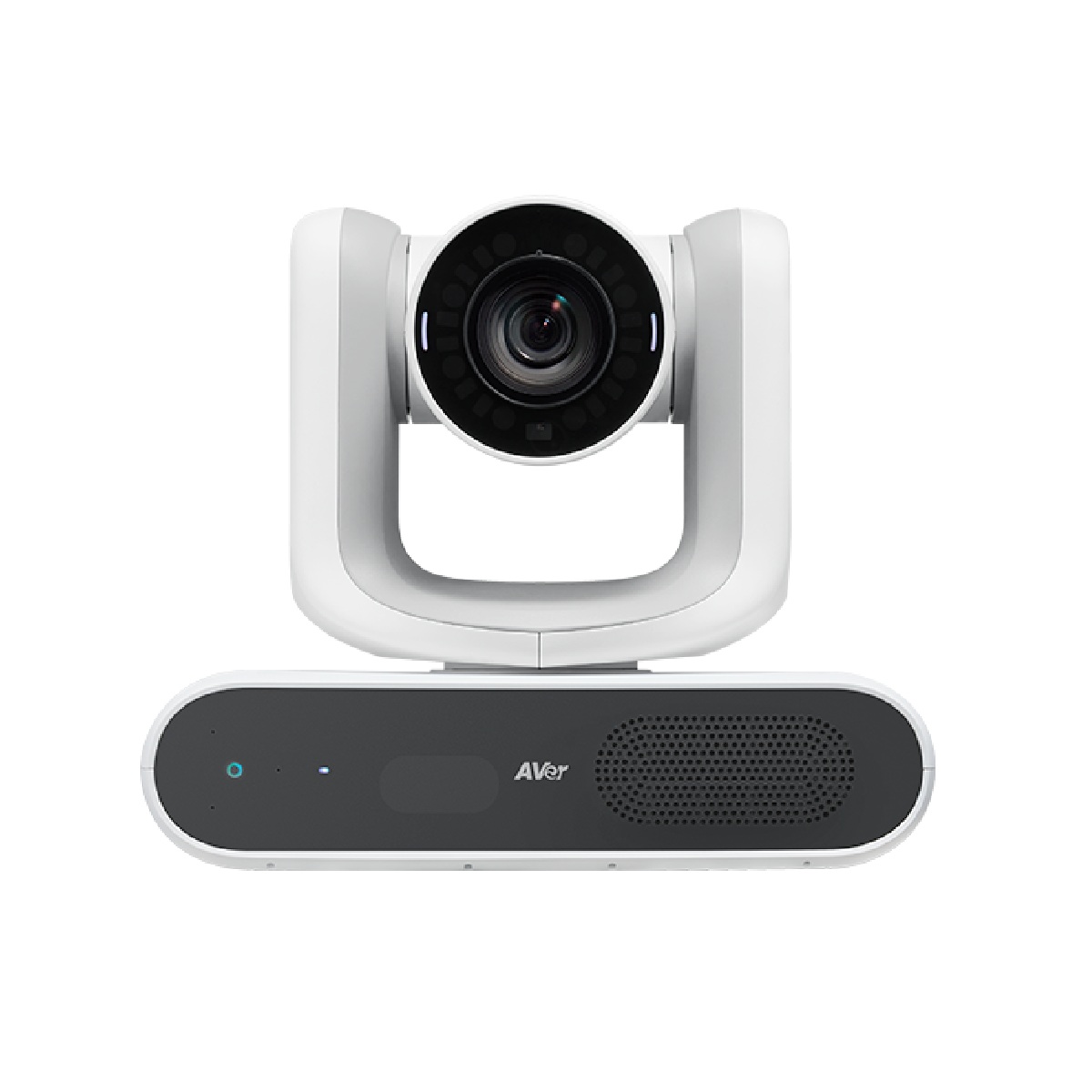

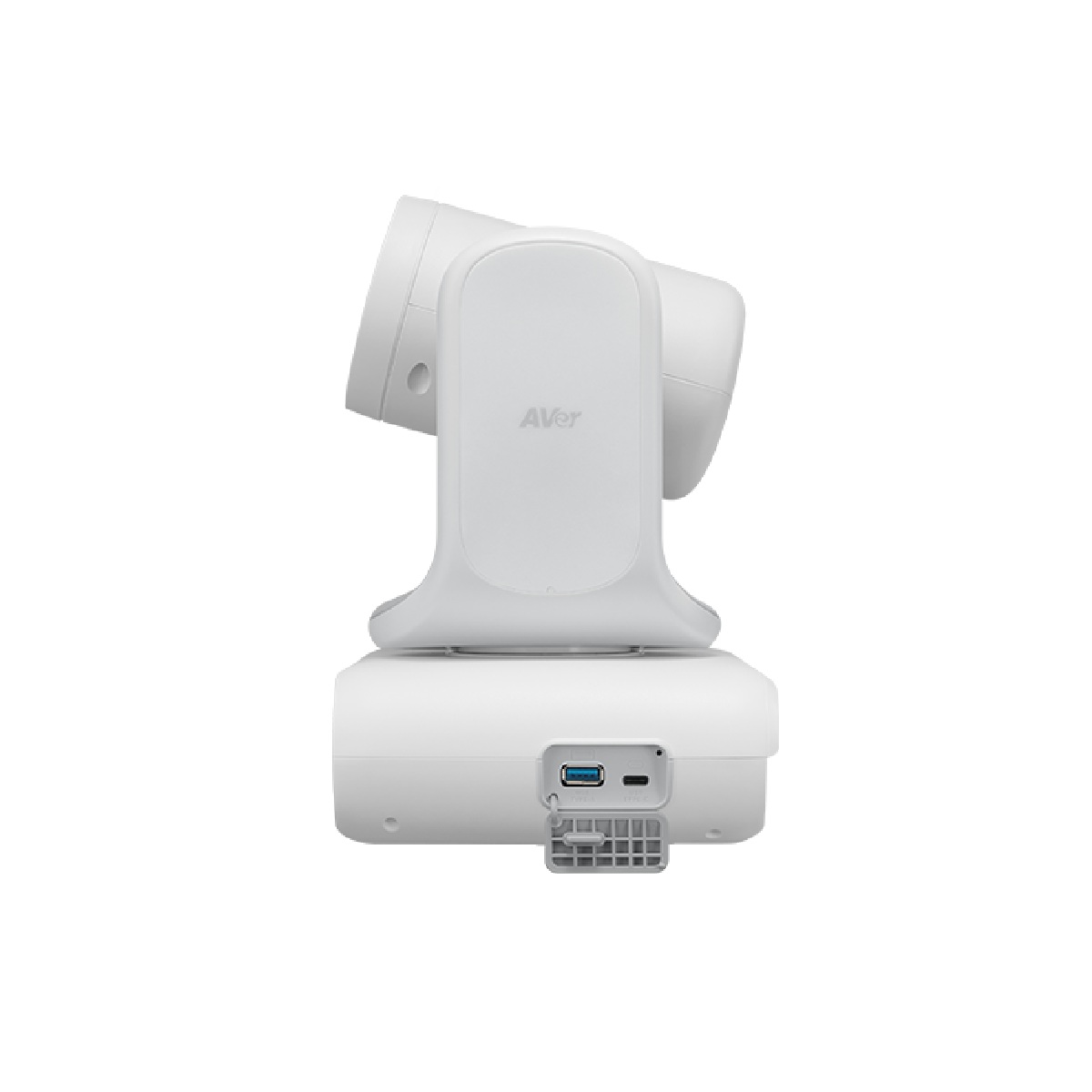

Medical Grade All-in-One PTZ Camera
Equipped with Edge-AI capabilities and a high-quality two-way audio system, the MD720UIS is more than just a PTZ camera—it is a powerful tool that extends beyond telemedicine, enhancing patient care and unlocking limitless possibilities for telehealth delivery.

Specifications
Camera
Image Sensor
1/2.8” CMOS
Effective Picture Elements
8 Megapixels
Output Resolutions
4K/30p, 1080p/60, 1080p/30, 1080p/25, 720p/60, 720p/30, 720p/25
Minimum Illumination
0.5 lux (IRE50, F1.6, Max. AGC, 1/30)
S/N Ratio
≥ 50 dB
Gain
Auto, Manual
Shutter Speed
1/1 to 1/10,000 sec
Exposure Control
Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance
Auto, Manual
Optical Zoom
20X
Viewing Angles
DFOV: 69.2° (Wide) to 4.1° (Tele)
HFOV: 62.3° (Wide) to 3.6° (Tele)
VFOV: 37.3° (Wide) to 2.1° (Tele)
Focal Length
f = 4.5 mm (Wide) to 90 mm (Tele)
Aperture (Iris)
F = 1.8 (Wide) to 4.7 (Tele)
Minimum Working Distance
0.1 m (Wide) , 1.2 m (Tele)
Pan / Tilt Angles
Pan: ±170°, Tilt: +90° / -90°
Pan / Tilt Speed (Manual)
Pan: 0.1° to 100° / sec, Tilt: 0.1° to 100° / sec
Preset Speed
Pan: 200° / sec, Tilt: 200° / sec
Preset Positions
256 (IP / USB)
Camera Control - Protocols
VISCA (IP), CGI (IP)
Image Processing
Mirror / Flip / Freeze / WDR / BLC
Power Frequencies
50 Hz, 60 Hz

AI Functions
Modes
Face / Eyes Tracking, Fall / Bed Egress Detection

Privacy
Protection Mode
Local Privacy Mode, Mosaic Function

General
Power Requirement
AC100-204V to DC 12V / 5A and above
Power Consumption
40W
POE
POE++(IEEE 802.3bt)
Dimensions (W x H x D)
273.57 x 233.4 x 160 mm
Net Weight
3kg
Application
Indoor
Privacy indicator light
Yes
Security
Kensington Slot
Remote Control
Infrared
Operating Conditions
Temperature: 0 °C to +40 °C ; Humidity: 20% to 80%
Storage Conditions
Temperature: -20 °C to +60 °C ; Humidity: 20% to 95%

Audio
Embedded Speaker
Yes
Microphone
Yes, Microphone Array
AI Noise Reduction
Yes

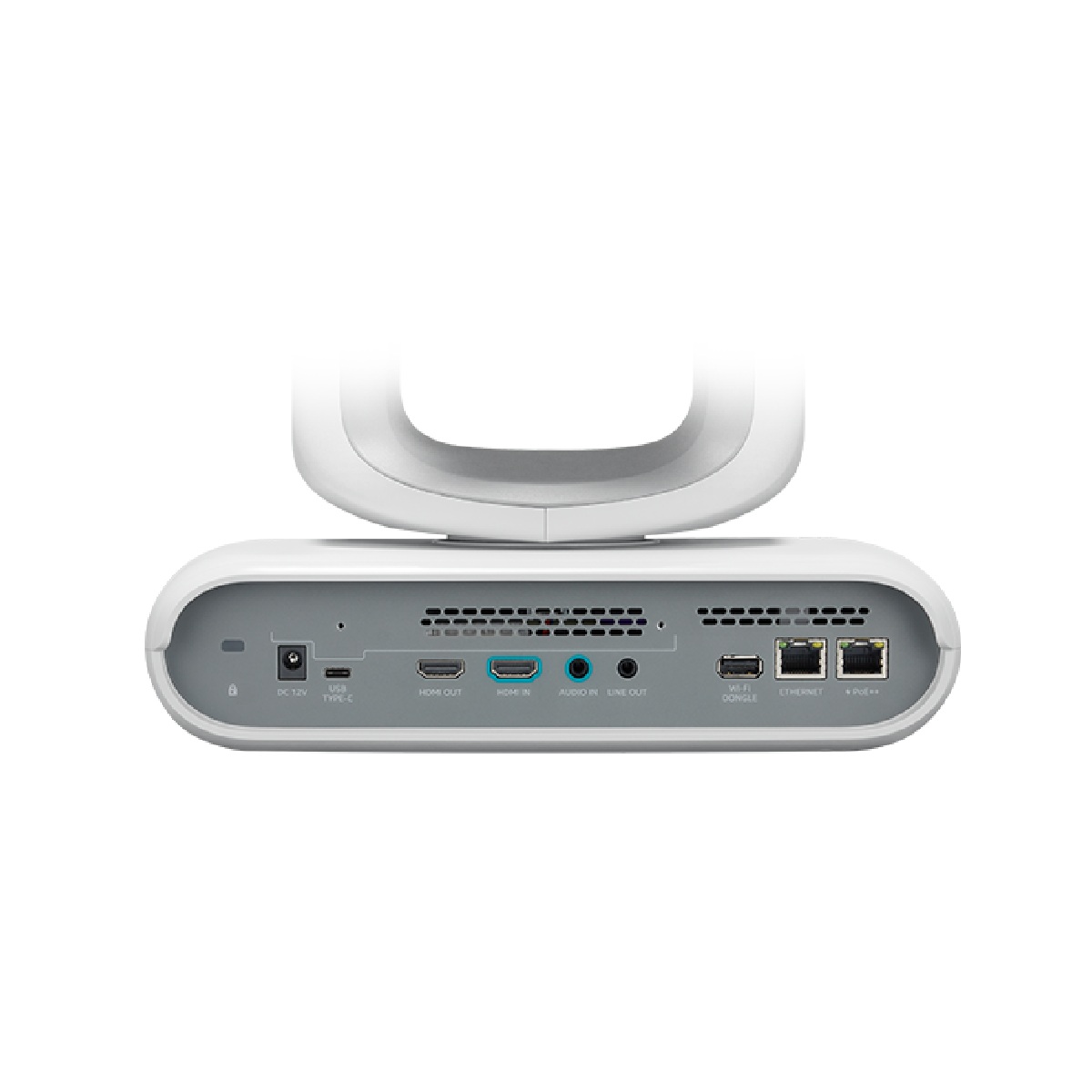

Interface
Video Outputs
HDMI, IP, USB-C (Rear)
Audio Outputs
HDMI, IP, USB-C, Line-out (Rear)
*May vary depending on actual application scenarios
IP Streaming
Resolution
4K 30fps
Network Video Compress Formats
H.264, H.265
Maximum Frame Rate
4K 30fps
Network Interface
10 / 100 / 1000 Base-T
Multi-Stream Capability
2 (RTSP / Web Page), 4K 30fps (max.)
Network Protocols
IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, VISCA over IP
USB
Connector
USB 3.0
Video Format
MJPEG / YUY2
USB Video Class (UVC)
UVC 1.1
USB Audio Class (UAC)
UAC 1.0
Web UI
Live Video Preview
Yes
Camera PTZ Control
Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image Adjustment
Exposure, White Balance, Image Process
Network Configuration
DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
IP Search and Configuration Tool
Supports Windows® 7 or later
ViewCare
Supports Windows® 7 or later
PTZ Control Panel
Supports iOS & iPadOS® 11 or later

Warranty
Camera
3 Years
Accessories
1 Year

Package Contents
Camera, Remote Control, Power Adapter, Power Cord, Cable Fixing Plate, Cable Tie (x6), M2 x 4mm Screw (x2), Quick Start Guide
