Aver
PTZ kamera 4KP60, Sjukv rds applikationer, LED, L s basenhet
Artikelnr:AVR-MD330U
Tillverkarens artikelnr:MD330U
Fråga ett proffs!
John Frisch
+46(0)10-188 25 78
john@audiovision.se

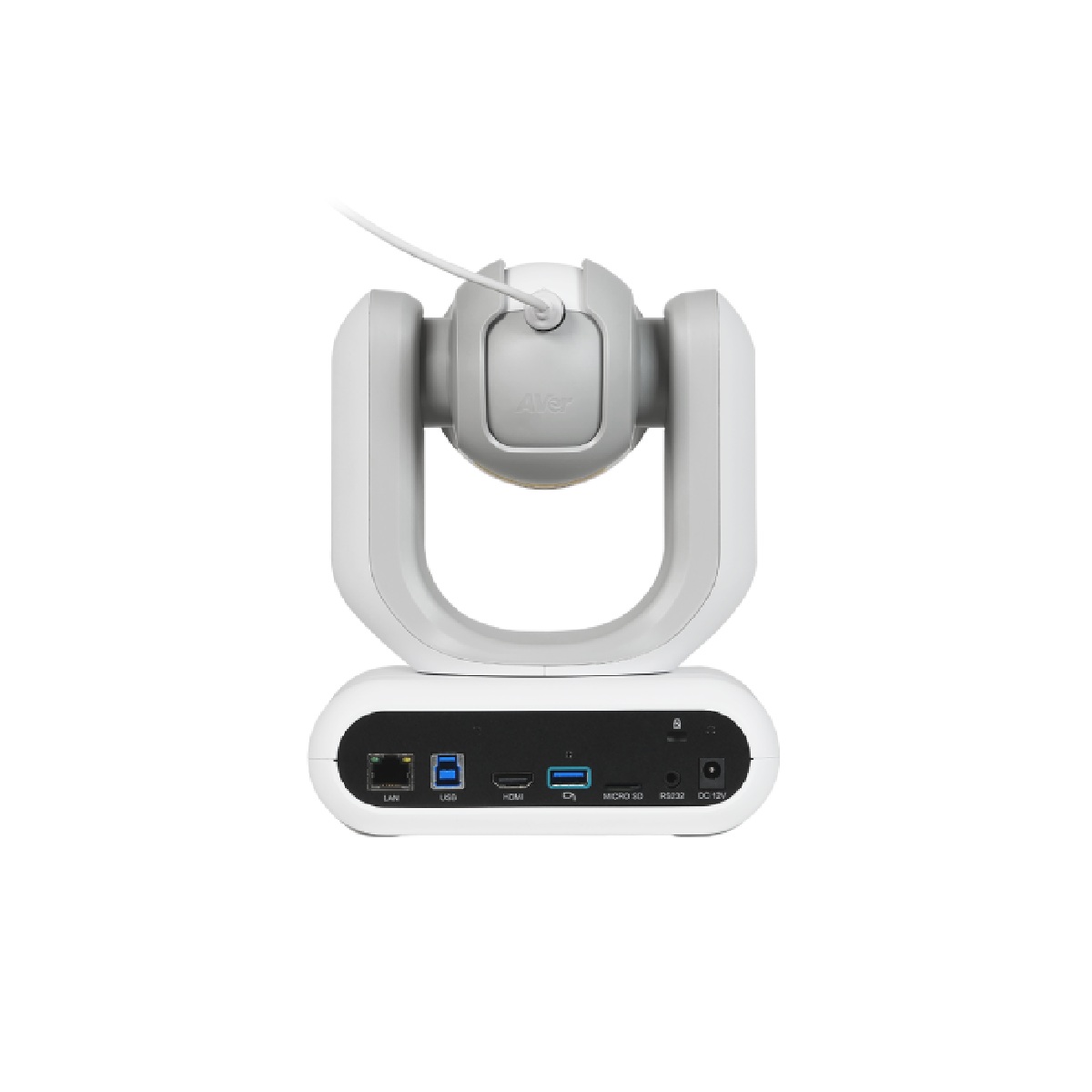

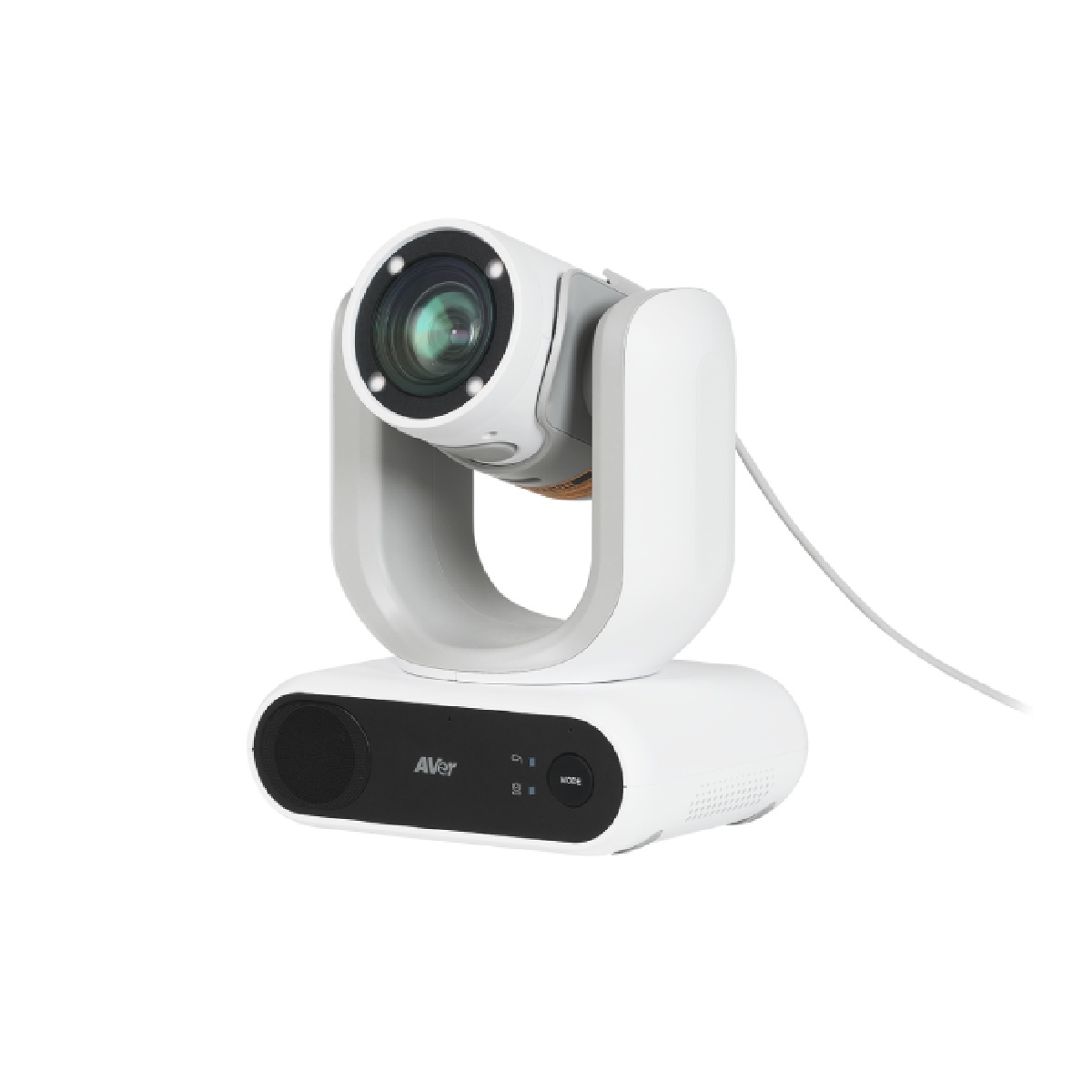

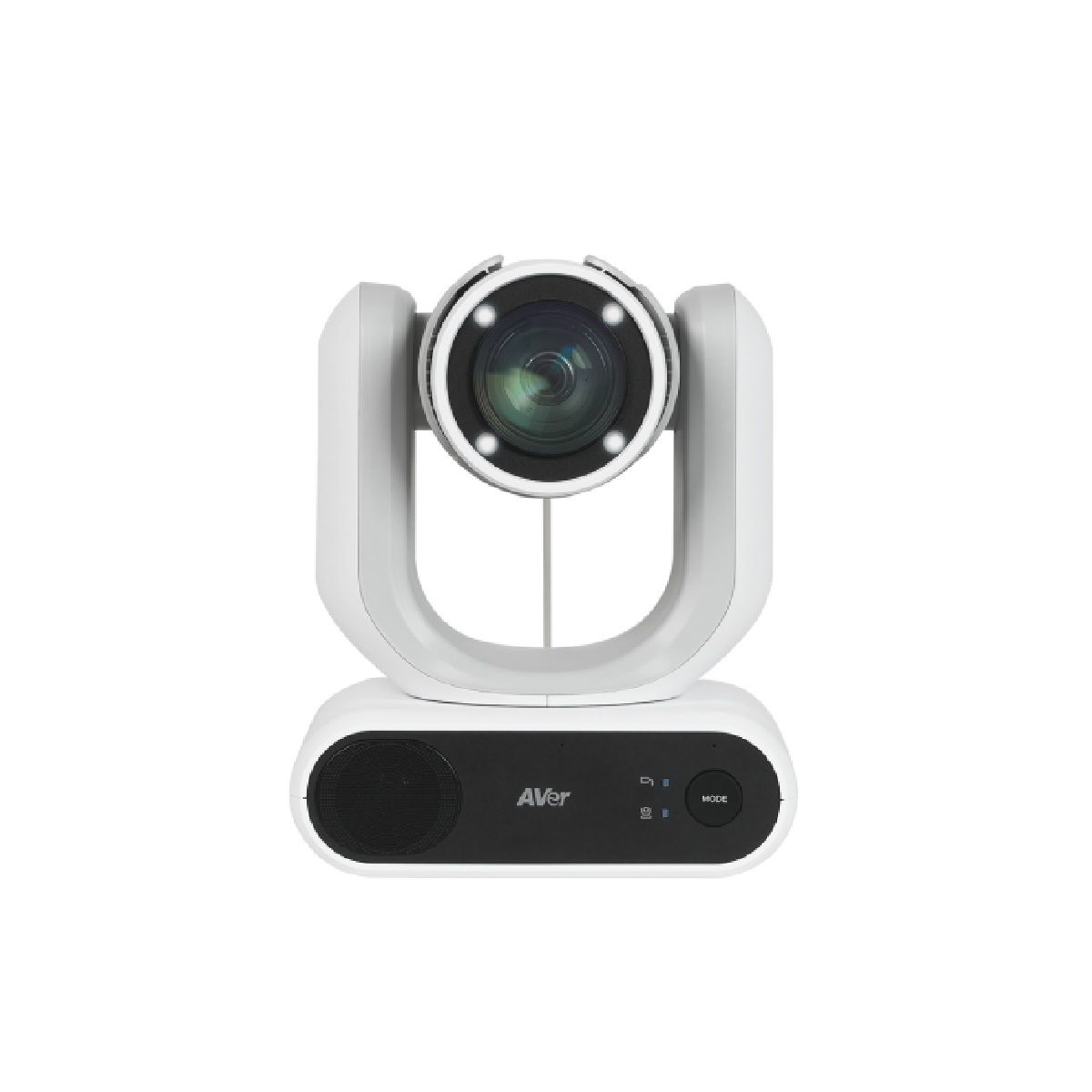

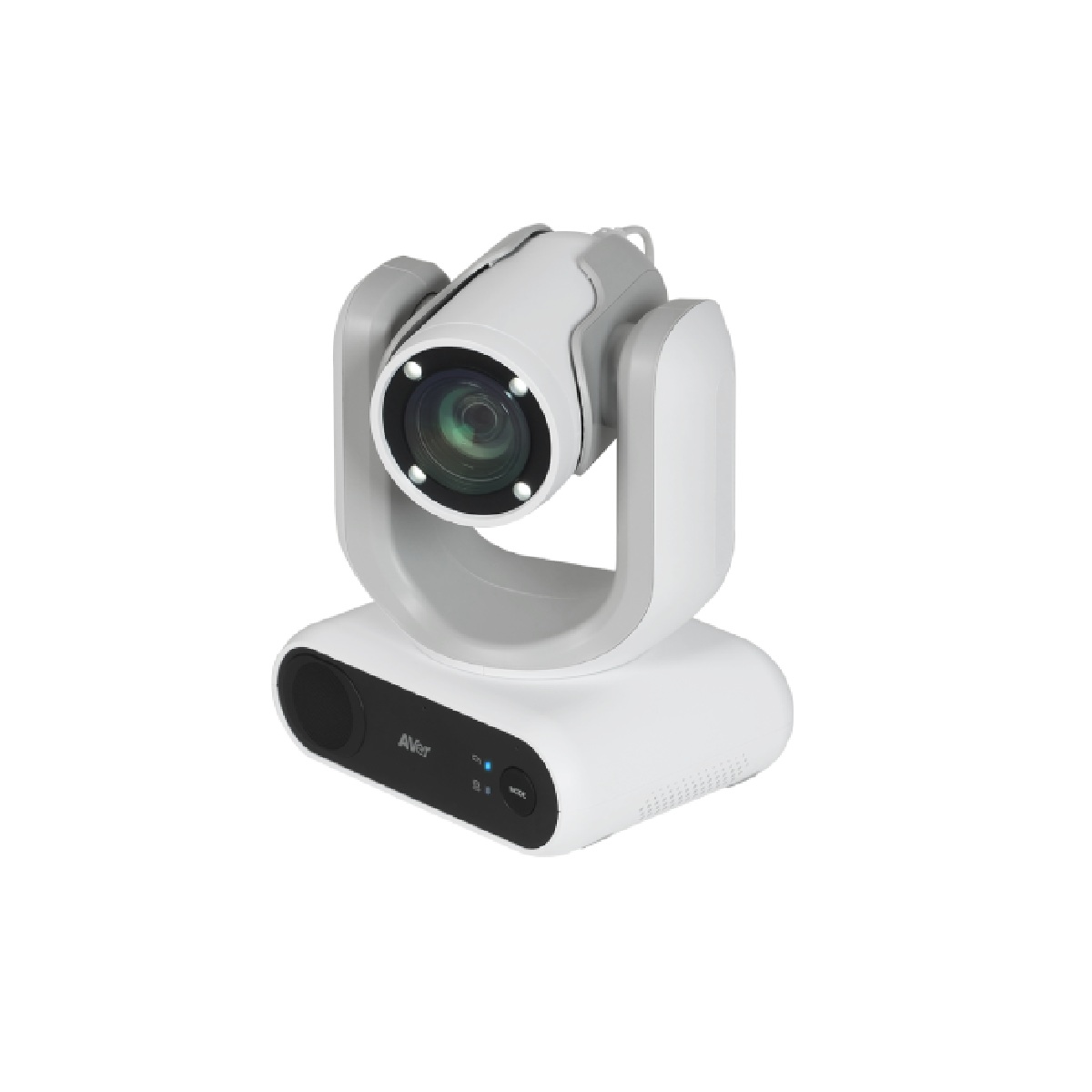

Medical Grade PTZ Camera
AVer MD330U is specially designed and medically certified for Telemedicine with the IEC 60601-1-2 Medical Certification. The 30X optical zoom lens with 4K output resolution delivers superb image quality. AI Noise Reduction offers a face-to-face communication experience for patients and doctors. A first in the industry, the detachable camera head makes 360-degree angle close-up shooting and snapshots possible.
Specifications
Camera
Image Sensor
1/2.8' 4K Exmor CMOS
Effective Picture Elements
8 Megapixels
Output Resolutions
4K/30 (IP/UVC only), 1080p/60, 1080p/59.94, 1080p/50, 1080p/30, 1080p/29.97, 1080p/25, 720p/60, 720p/59.94, 720p/50, 720p/30
Minimum Illumination
0.7 lux (IRE50, F1.6, 30fps)
S/N Ratio
≥ 50 dB
Gain
Auto, Manual
Shutter Speed
1/1 to 1/10,000 sec
Exposure Control
Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance
Auto, Manual
Optical Zoom
30X
Viewing Angles
DFOV: 75.5° (Wide) to 3.1° (Tele)
HFOV: 68.0° (Wide) to 2.7° (Tele)
VFOV: 41.7° (Wide) to 1.5° (Tele)
Focal Length
f = 4.3 mm (Wide) to 129 mm (Tele)
Aperture (Iris)
F = 1.6 (Wide) to 4.7 (Tele)
Minimum Working Distance
0.01 m (Wide), 1.2 m (Tele)
Pan / Tilt Angles
Pan: ±170°, Tilt: +90° / -35°
Pan / Tilt Speed (Manual)
Pan: 0.1° to 100° / sec, Tilt: 0.1° to 100° / sec
Preset Speed
Pan: 200° / sec, Tilt: 200° / sec
Preset Positions
10 (IR), 256 (RS-232 / IP)
Camera Control - Protocols
VISCA (RS-232 / IP), PELCO-D & PELCO-P (RS-232), CGI (IP)
Image Processing
Noise Reduction (2D / 3D), Flip, Mirror, WDR, BLC
Power Frequencies
50 Hz, 60 Hz
Speaker
Embedded Speaker
Yes
SPL
77 dB SPL (1W / 1m)
Maximum SPL
90 dB SPL at 0.5 m
Microphone
Built-in Microphone
2 (Omnidirectional)
AI Noise Reduction
Yes
Pickup Range
5 m
Sensitivity
-33 dBFS
Frequency Response
20 Hz to 20 KHz
Maximum SPL
133 dB SPL at 0.5 m
Loop Recording
Resolution
Up to 4K
Length of Video
5 minutes
Recording Modes
Loop & continuous
Loop Mechanism
Wipe the oldest clip
Interface
Video Outputs
HDMI, IP, USB
Audio Outputs
HDMI, IP, USB
General
Power Requirement
AC 100 - 240V to DC 12V/3.34A
Power Consumption
36W
Dimensions (W x H x D)
168.0 x 205.0 x 126.0 mm
Net Weight
1.95 kg
Application
Indoor
Tally Lamp
N/A
Security
Kensington Slot
Remote Control
Infrared
Operating Conditions
Temperature: 0 °C to +35 °C
Humidity: 20% to 80%
Storage Conditions
Temperature: -20 °C to +60 °C
Humidity: 20% to 95%
IP Streaming
Resolution
4K 30fps
Network Video Compress Formats
H.264, H.265
Maximum Frame Rate
4K 30fps
Network Interface
10 / 100 / 1000 Base-T
Multi-Stream Capability
2 (RTSP / Web Page), 4K 30fps (max.)
Network Protocols
IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP / RTCP, RTSP, RTMP, VISCA over IP
USB
Connector
USB 3.0
Video Format
MJPEG, YUY2
Audio Format
PCM
USB Video Class (UVC)
UVC 1.1
USB Audio Class (UAC)
UAC 1.0
Software Tools
IP Search and Configuration Tool
Support Windows® 7 or later
Warranty
Camera
3 Years
Accessories
1 Year
Package Contents
Camera, Remote Control, Power Adapter, Power Cord, 1/4”-20, L=7.5mm Screw (x2), USB 3.0 Type-A to B Cable (1.5m), On-Camera Lens Cable (Standard, 180 cm), Short Lens Cable (45 cm), Quick Start Guide
36 månaders garanti på samtliga produkter. Garantin kan kostnadsfritt förlängas med ytterligare 24 månader till totalt 60 månader via registrering av produkten. För mer information om Aver's garantipolicy klicka här.
AVer är en global tillverkare av professionella videolösningar med särskilt fokus på utbildning, företagsmöten och hybridkommunikation. Företaget är välkänt för sina innovativa dokumentkameror och videokonferenssystem som kombinerar smart funktionalitet med hög bildkvalitet och enkel användning.
Inom företagssegmentet erbjuder AVer ett brett utbud av certifierade konferenskameror och ljud-/bildsystem för plattformar som Microsoft Teams, Zoom och Google Meet. Produkterna har ofta AI-funktioner som auto-framing, talarspårning och presets – vilket gör dem idealiska för moderna mötesrum, oavsett storlek.
