Aver
PTZ kamera 4KP60, Sjukv rds applikationer, IR m rkerseende
Artikelnr:AVR-MD120UI
Tillverkarens artikelnr:MD120UI
Fråga ett proffs!
John Frisch
+46(0)10-188 25 78
john@audiovision.se

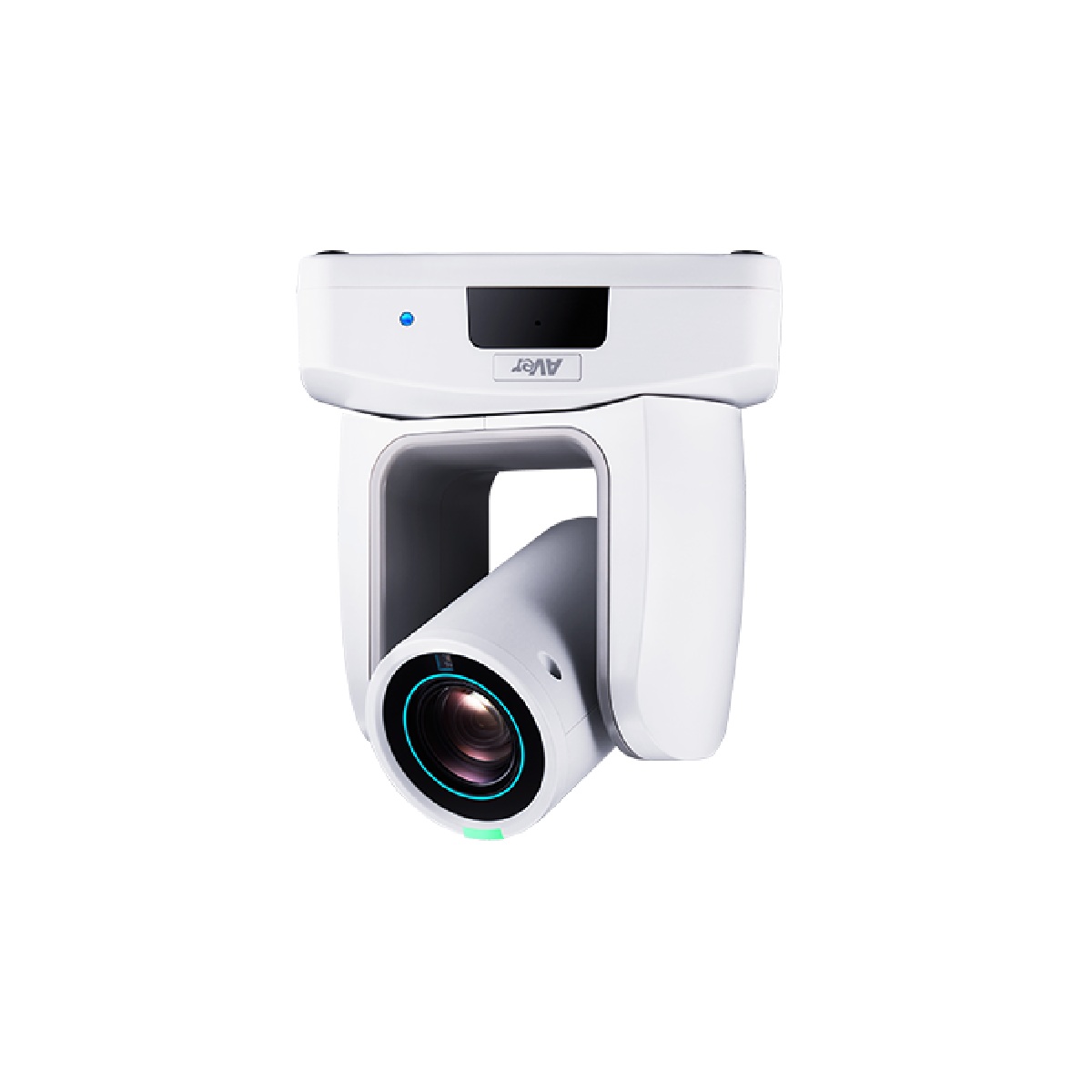

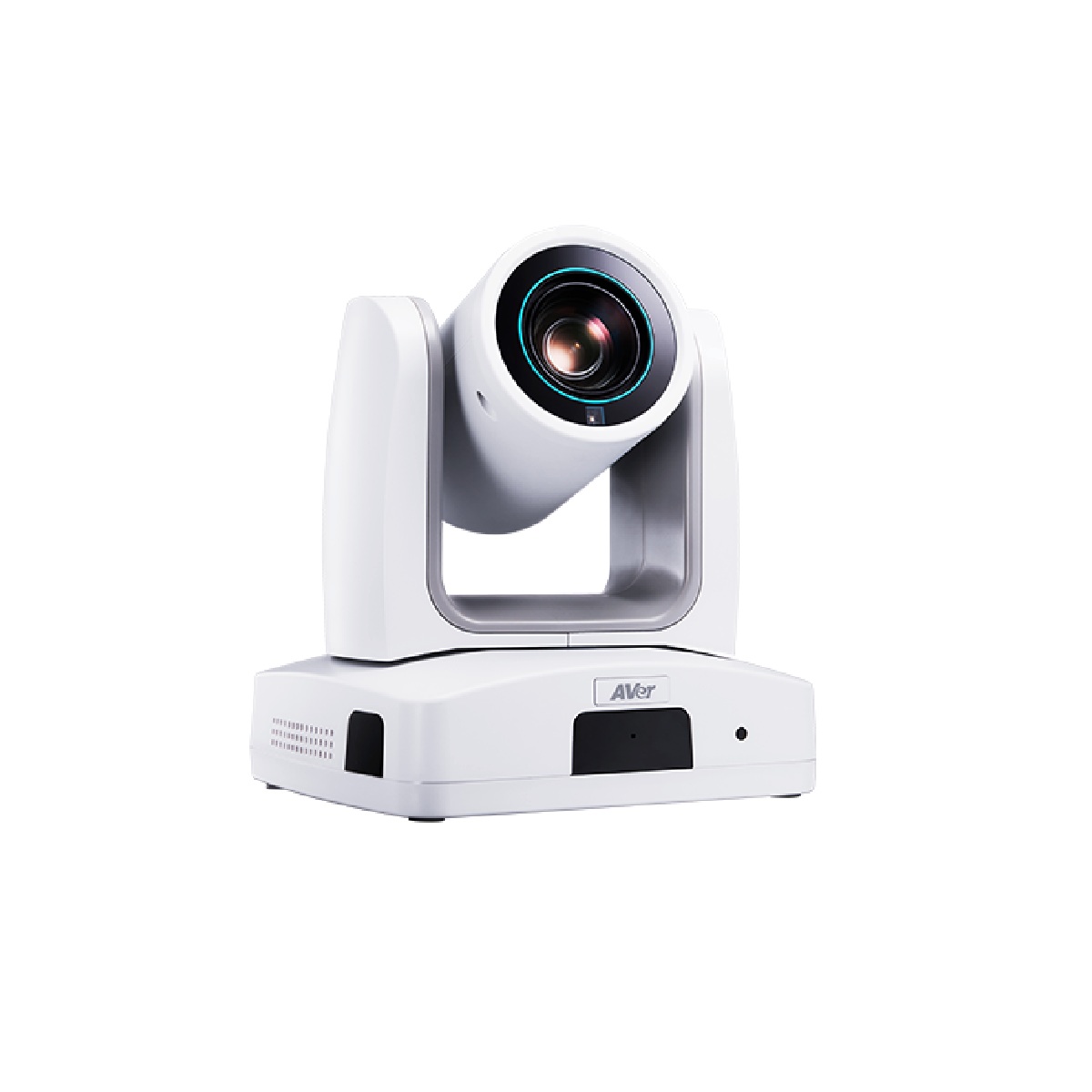

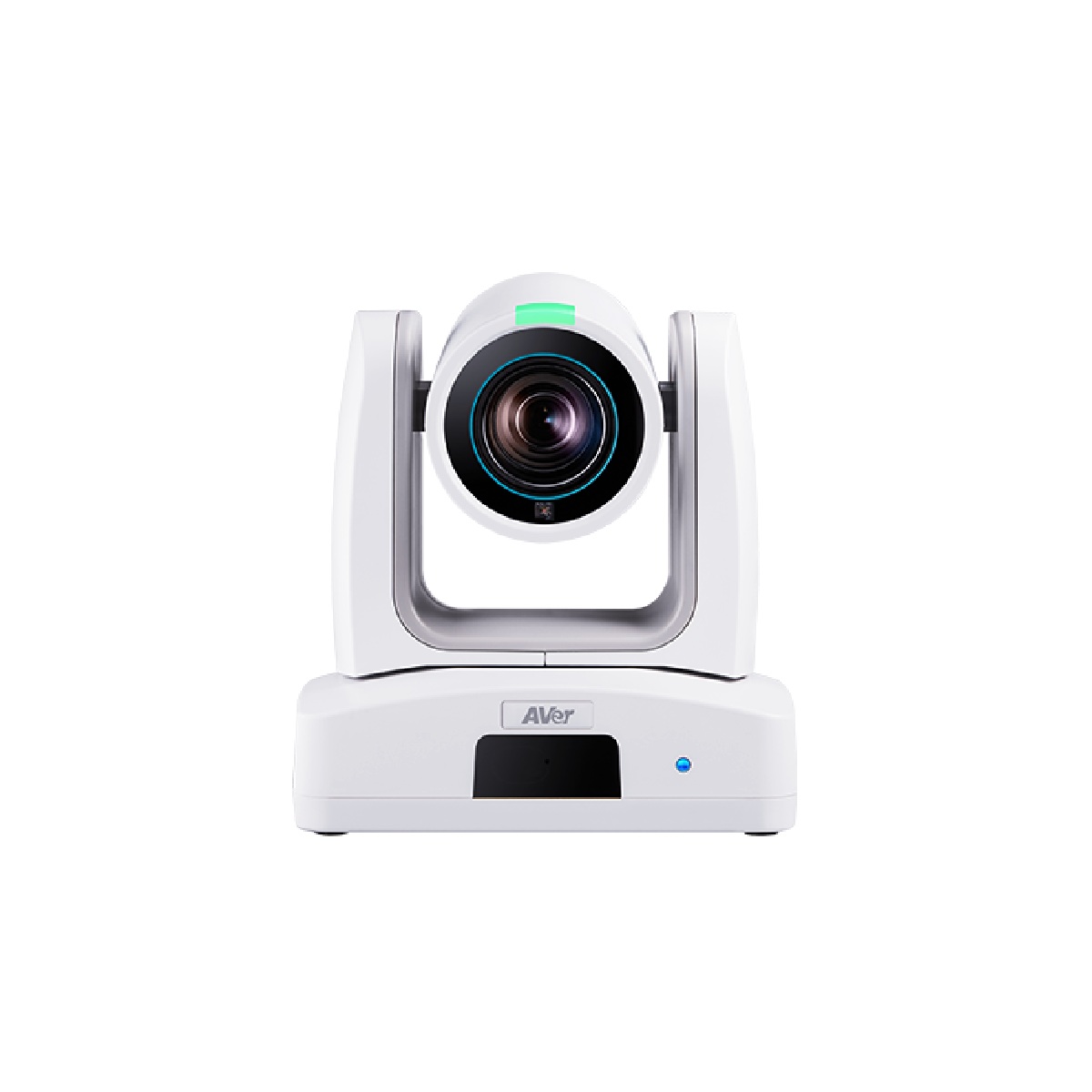

Medical Grade PTZ Camera
The AVer MD120UI is the world's first PTZ camera specifically designed for patient monitoring. Powered by advanced AI technologies, monitoring patients has become a breeze, allowing healthcare providers to stay vigilant and attentive to their patients' needs. 20X optical zoom & 4K imaging capabilities along with IR night view function provide crystal-clear visual monitoring of patients, enabling 24-hour patient monitoring with no blind spots.
Specifications
Camera
Image Sensor
1/2.8' CMOS
Effective Picture Elements
8 Megapixels
Output Resolutions
Resolutions: 4K / 1080p / 720p
Frame Rates: 60 / 59.94 / 50 / 30 / 29.97 / 25
Minimum Illumination
0.5 lux (50 IRE, F1.6, Max. AGC, 1/30)
S/N Ratio
≥ 50 dB
Gain
Auto, Manual
TV Lines
1000 (Center / Wide)
Shutter Speed
1/1s to 1/10,000s
Exposure Control
Auto, Manual, Priority AE (Shutter, IRIS), BLC, WDR
White Balance
Auto / Manual
Optical Zoom
20X
Digital Zoom
1X
Total Zoom
20X
Viewing Angles
DFOV: 69.2° (Wide) to 4.1° (Tele)
HFOV: 62.3° (Wide) to 3.6° (Tele)
VFOV: 37.7° (Wide) to 2.1° (Tele)
Focal Length
f = 4.5 mm (Wide) to 90 mm (Tele)
Aperture (Iris)
F = 1.8 (Wide) to 4.7 (Tele)
Minimum Working Distance
0.1 m (Wide) , 1.2 m (Tele)
Pan / Tilt Angles
Pan: ±170°, Tilt: +90° / -30°
Pan / Tilt Speed (Manual)
Pan: 0.1° to 100° / sec, Tilt: 0.1° to 100° / sec
Preset Speed
Pan: 200° / sec, Tilt: 200° / sec
Preset Positions
10 (IR), 256 (RS-232, RS-422, IP)
Camera Control - Interfaces
RS-232 / RS-422 / Ethernet
Camera Control - Protocols
VISCA (RS-232 / RS-422 / IP), CGI (IP)
Image Processing
Mirror / Flip / Freeze / WDR / BLC
Power Frequencies
50 Hz, 60 Hz
AI Function
Mode
Eye Tracking
Privacy
Protection Mode
Privacy Mode, Privacy Indicator
General
Power Requirement
12V
Power Consumption
24W
PoE
PoE+ (IEEE802.3at)
Dimensions
180(W) x 145(D) x 183.5(H) mm
Net Weight
1.7 ± 0.1 kg
Housing Material
Anti-UV
Application
Indoor
IR Night Vision
Yes
Security
Kensington Slot
IR Remote Control
Yes
Operating
Temperature: 0 °C to +40 °C
Humidity: 20% to 80%
Storage Conditions
Temperature: -20 °C to +60 °C
Humidity: 20% to 95%
Audio
Channels
2ch Stereo
Codec
AAC-LC (48K)
Built-in Microphone
1 (Omni-Directional)
Interface
Video Outputs
HDMI, IP, USB
Audio Outputs
HDMI, IP, USB
Audio Inputs
N/A
IP Streaming
Resolution
4K 60fps
Network Video Compress Formats
H.264, H.265, MJPEG
Maximum Frame Rate
4K 60fps
Bit-Rate Control Modes
VBR, CBR
Range of Bit-Rate
512Kbps to 64Mbps
Network Interface
10 / 100 / 1000 Base-T
Multi-Stream Capability
2 (RTSP / Web page), 4K 60fps Max.
Network Protocols
IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP RTP/RTCP, RTSP, RTMP,VISCA over IP
USB
Connector
USB 3.0 (Type-B)
Video Formats
MJPEG
Maximum Video Resolution
2160p
USB Video Class (UVC)
UVC 1.1
USB Audio Class (UAC)
UAC 1.0
Web UI
Live Video Preview
Yes
Camera PTZ Control
Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image Adjustment
Exposure, White Balance, Picture
Network Configuration
DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
IP Search and Configuration Tool
Support Windows® 7 or later
ViewCare
Support Windows® 7 or later
PTZ Control Panel
Supports iOS & iPadOS® 11 or later
Camera Setting Tool
Supports Windows® 7 or later, macOS® 10.14 or later
Warranty
Camera
3 Years
Accessories
1 Year
Package Contents
Camera, Drilling Paper, Ceiling Mount Bracket, QR Code Card, Cable Fixing Plate, M2 x 4 mm Screw (x3), Power Adapter & Power Cord, 1/4”-20 L=6.5 mm Screw (x2), Remote Control, M3 x 6 mm Screw (x3), USB Cable (Type-B)
Optional Accessories
AVer CL01 PTZ Camera Controller, L-Type Wall Mount
36 månaders garanti på samtliga produkter. Garantin kan kostnadsfritt förlängas med ytterligare 24 månader till totalt 60 månader via registrering av produkten. För mer information om Aver's garantipolicy klicka här.
