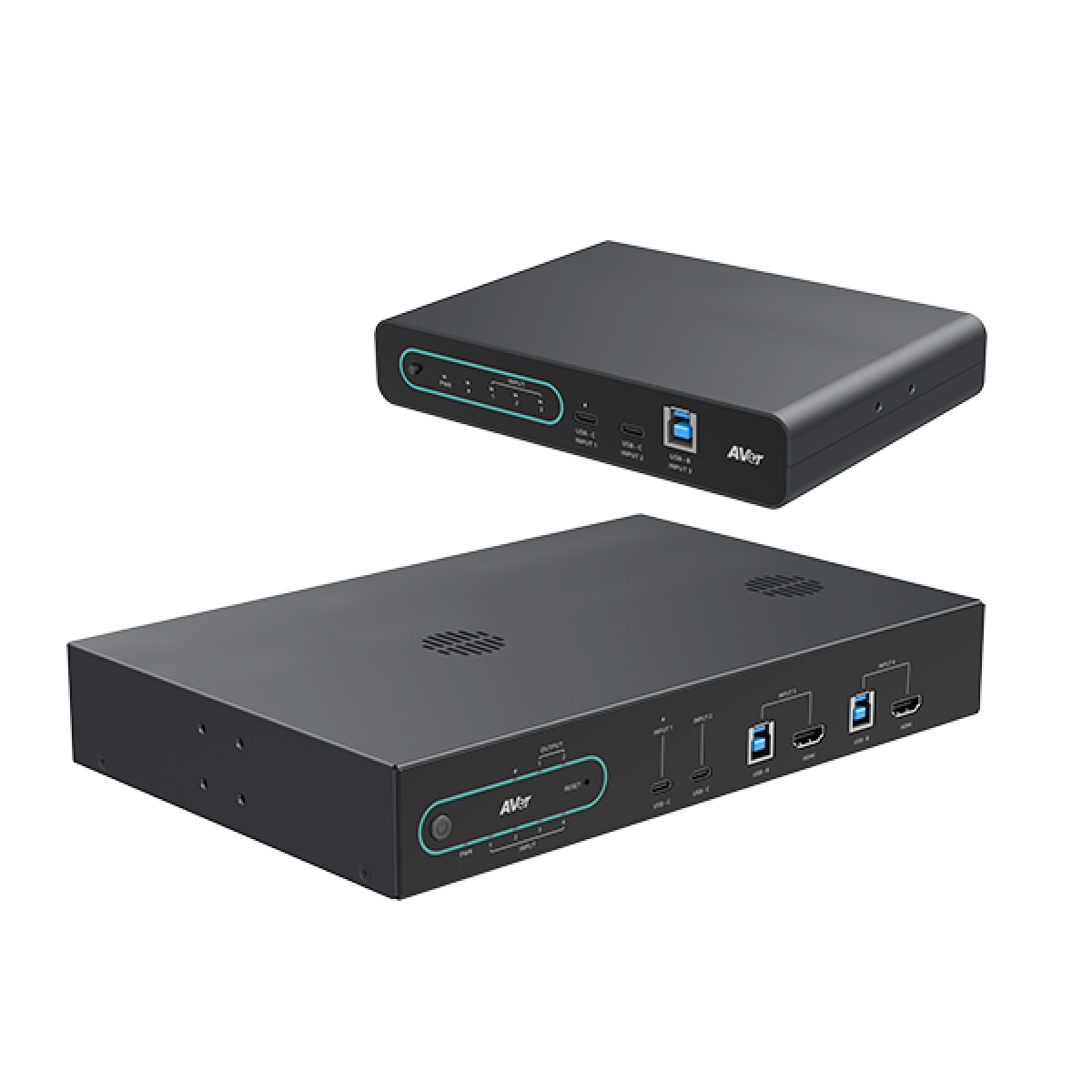

4K BYOM Matrix Switcher Kit
Level up collaboration with the AVer HUB35-EXT35, a 4K BYOM Matrix Switcher Kit. For corporate meetings, hybrid learning, and live events, it offers USB-C connectivity for 4K video, audio, and high-speed power delivery. With four to five inputs, dual-screen support, and the AVer CP10 G2 touch control, enjoy dual AVer camera switching for dynamic, multi-angle video experiences. Equipped with a 4K USB extender for long-distance peripheral connectivity, it's ideal for large and extra-large spaces.

Specifications

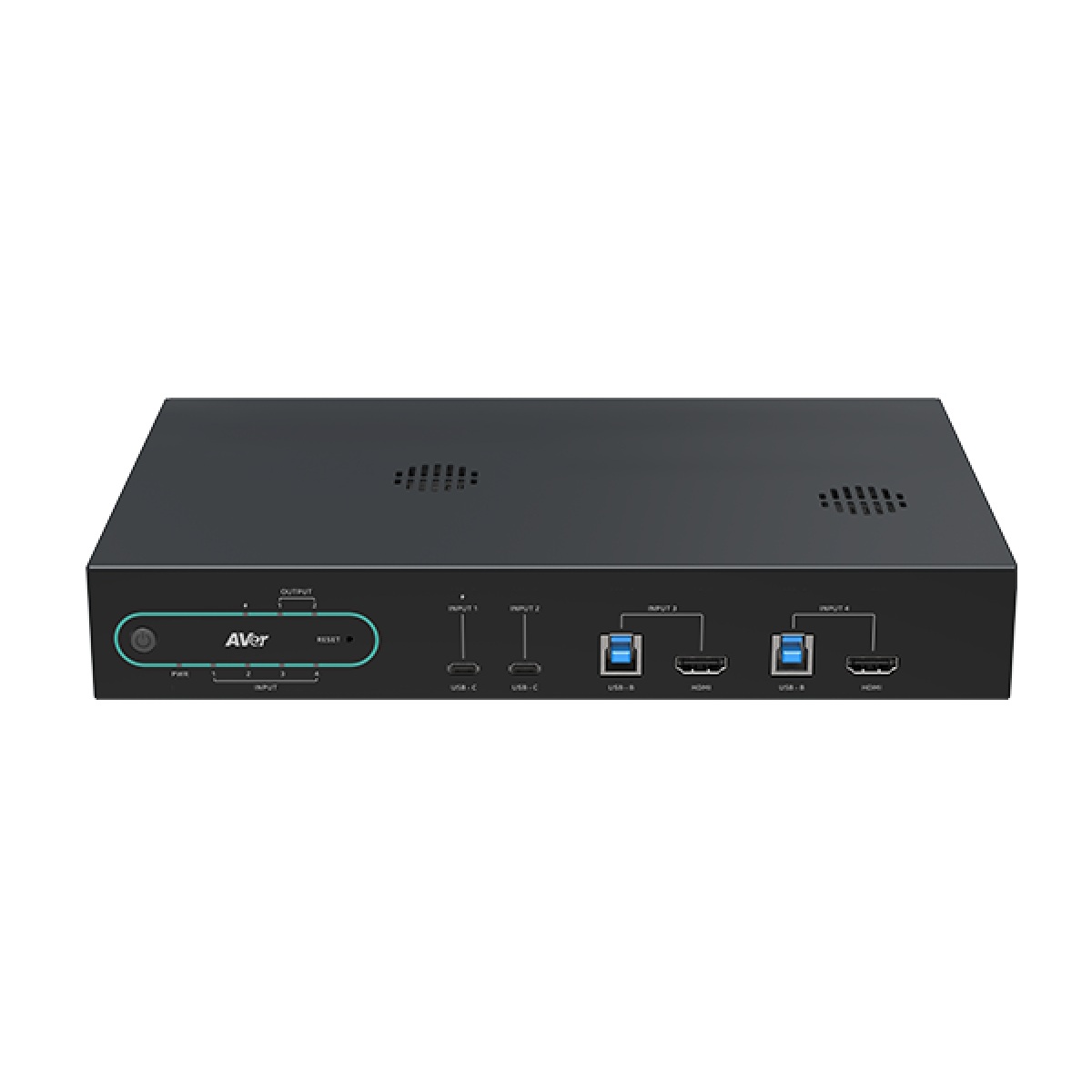

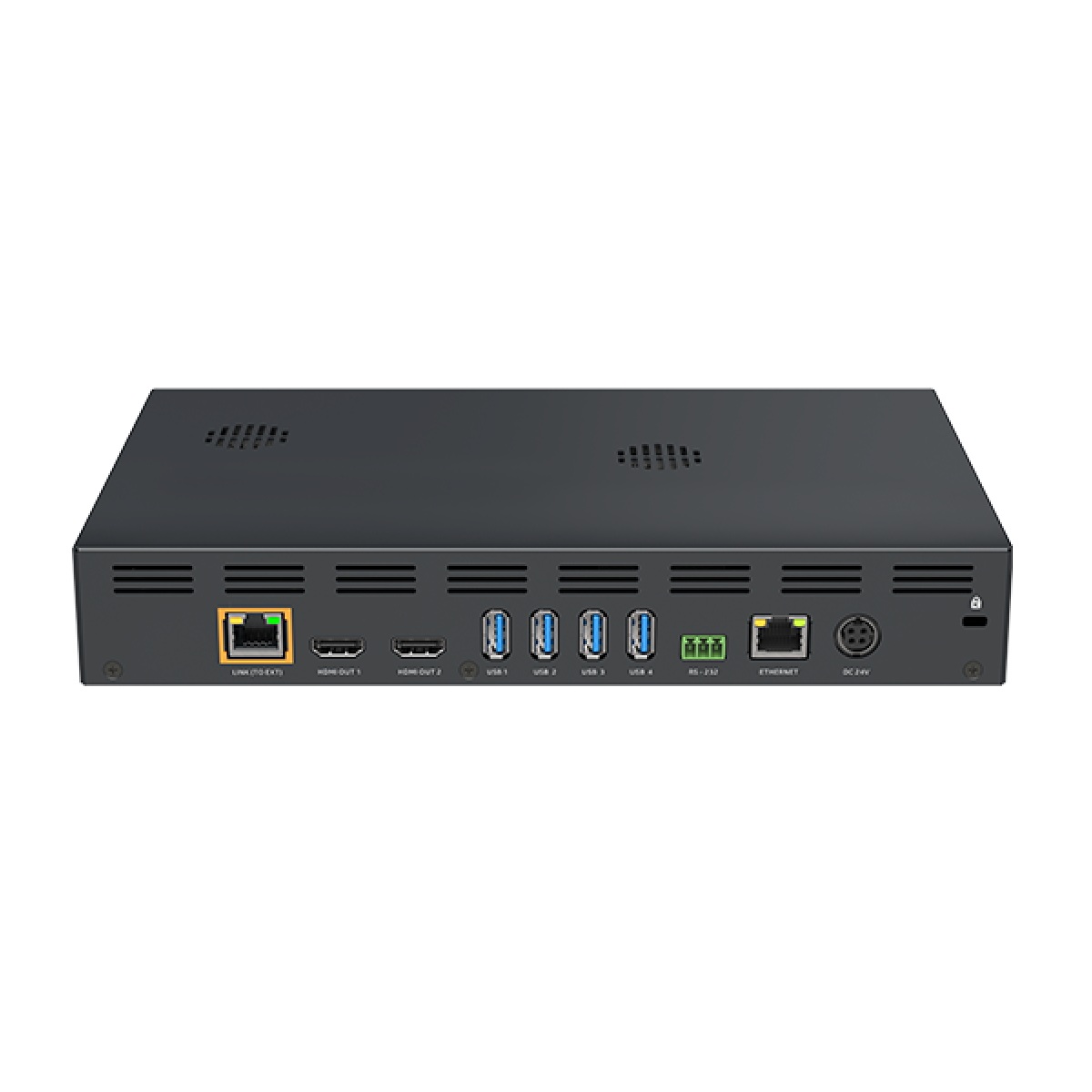

HUB35
Host
Input 1: USB Type-C x 1 (PD Charging, 100W Max.)
Input 2: USB Type-C x 1
Input 3: USB Type-B x 1; HDMI x 1
Input 4: USB Type-B x 1; HDMI x 1
USB-C Charging: Yes
USB Devices
Connections: USB Type-A x 4
USB Pass-Through: Yes
HDMI Display Outputs
Output: 2
HDMI Display Output Modes: 2
Audio HDMI: Yes
Video
Resolution: Up to 4K Ultra HD
Signal Type: DP Alt Mode, HDMI 2.0
HDMI CEC: Yes
Color Space: RGB, YCbCr
Audio
Transmit Mode: Audio Pass-Through from Input to Output
Format: HDMI 2.0
Control Interfaces
Ethernet: 1
RS-232: 1
Touch Control Panel: Yes, Can Be Paired with AVer CP10 G2 via BYOM Controller App
Link
Range: USB Type-C: 100 m (328 ft.)
Medium: CAT6a U/FTP
General
Power Requirement: AC 100 - 240V to DC 24V/7.5A
Power Consumption: 152W
Powering: External 180W Power Supply
Dimensions (W x H x D): 270.0 x 42.4 x 175.0 mm
Net Weight: 1.34 (±0.1) Kg
Security: Kensington Slot
Operating Conditions: Temperature: 0 °C to +45 °C; Humidity: 20% to 80%
Storage Conditions: Temperature: -20 °C to +60 °C; Humidity: 20% to 95%
Installation Methods: Rack Mounted, Under the Table, Inside the Podium, Behind the Display
LED Indicators
Power/Status LED:
- Orange: Standby
- Green: Operating
- Green (Flashing): Firmware Upgrading
USB Type-C Charging/Status LED:
- Green: Charging
Input 1/2/3/4:
- Green: Connected
Output 1/2:
- Green: Connected
Interfaces
USB Type-A x 4, USB Type-B x 2, USB Type-C x 2, HDMI In x 2, HDMI Out x 2, RJ-45 x 1, LINK (TO EXT) x 1, RS-232 x 1, Power Input x 1, Button x 2 (Power, Reset)
Warranty
3 Years
Package Contents
HUB35, Power Adapter, Power Cord, Cable Fixing Plate (x 2), Cable Tie (x 18), M3 x 5.0 mm Truss Head Screw (x 8), M3 x 10 mm Screw (x 4), Rack Mount Bracket (x 2), USB 3.0 Type-A to Type-B Cable, USB 3.1 Type-C to Type-C Cable, Terminal Block 3-Pole, Quick Start Guide

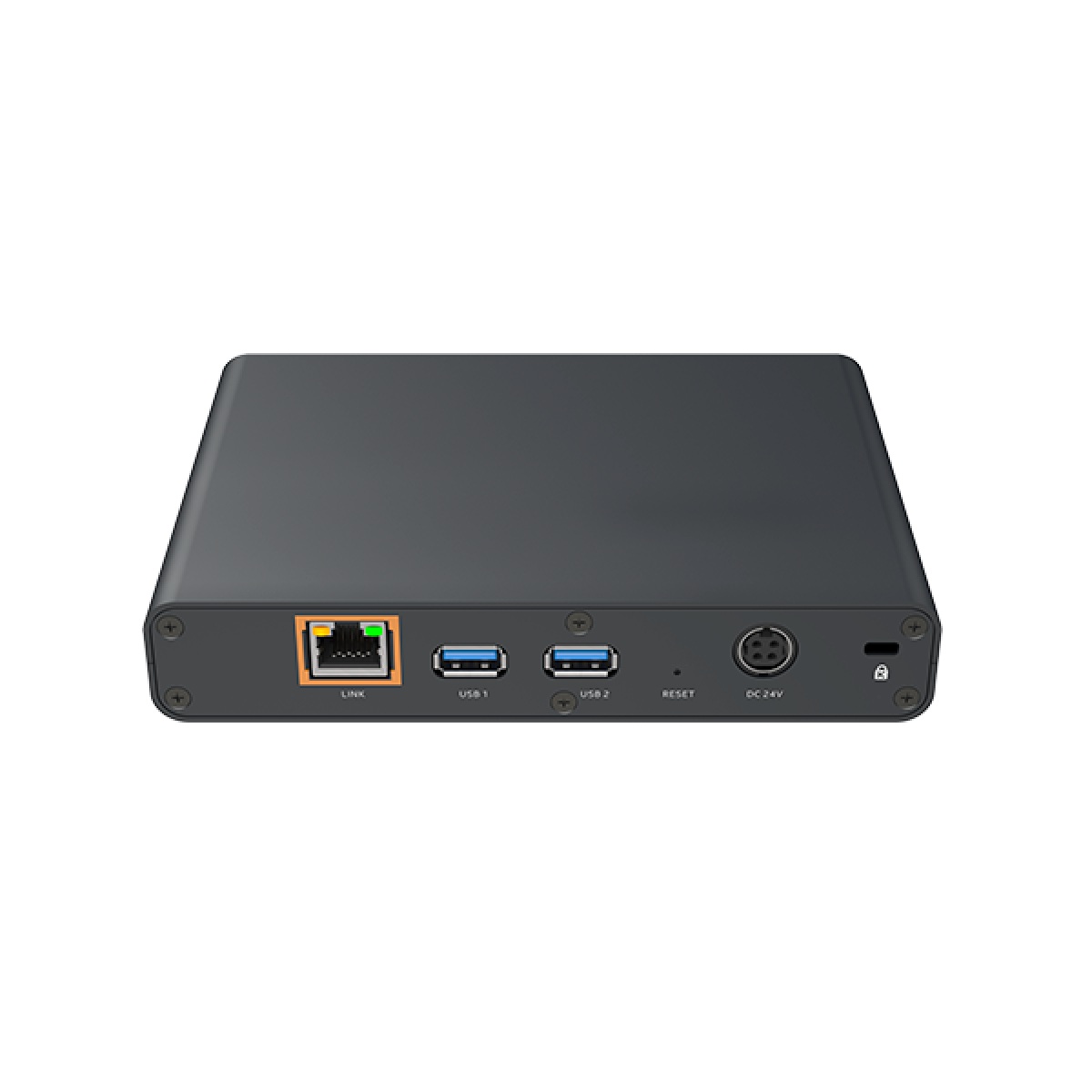

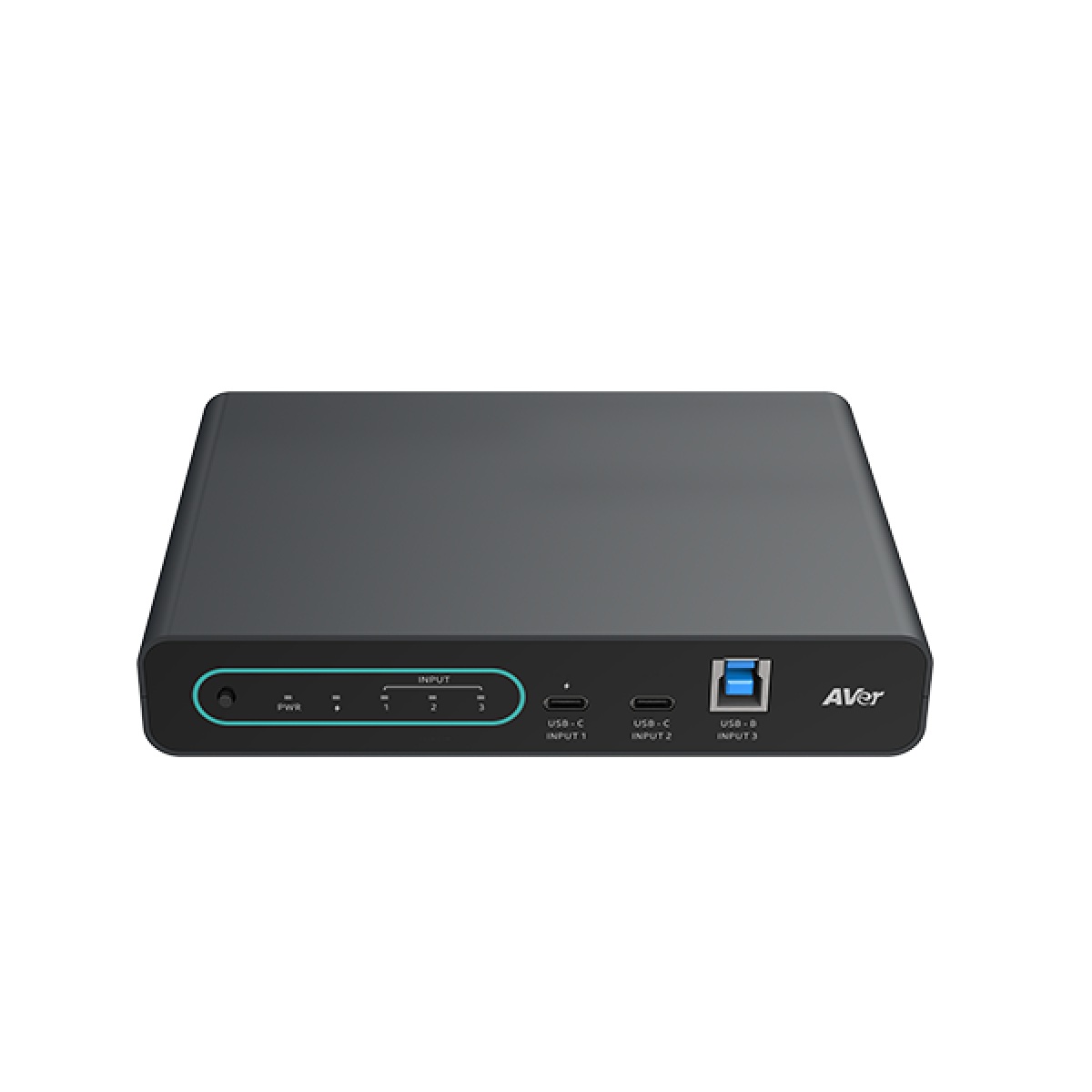

EXT35
Host
Input 1: USB Type-C x 1 (PD Charging, 60W Max.)
Input 2: USB Type-C x 1
Input 3: USB Type-B x 1
USB-C Charging: Yes
USB Devices
Connections: USB Type-A x 2
Video
Input Resolution: Up to 4K Ultra HD
Input Signal Type: DP Alt Mode, USB Type-B
Color Space: RGB, YCbCr
Audio
Transmit Mode: Audio Pass-Through from Input to Output
Format: HDMI 2.0
General
Power Requirement: AC 100 - 240V to DC 24V/7.5A
Power Consumption: 126W
Powering: External 180W Power Supply
Dimensions (W x H x D): 164.0 x 30.0 x 118.0 mm
Net Weight: 0.66 (±0.1) Kg
Security: Kensington Slot
Operating Conditions: Temperature: 0 °C to +45 °C; Humidity: 20% to 80%
Storage Conditions: Temperature: -20 °C to +60 °C; Humidity: 20% to 95%
Installation Methods: Rack Mounted, Under the Table, Inside the Podium, Behind the Display
LED Indicators
Power/Status LED:
- Orange: Standby
- Green: Operating
- Green (Flashing): Firmware Upgrading
USB Type-C Charging/Status LED:
- Green: Charging
Input 1/2/3:
- Green: Connected
Interfaces
USB Type-A x 2, USB Type-B x1, USB Type-C x 1, LINK x 1, Power Input x 1, Button x 2 (Power, Reset)
Warranty
3 Years
Package Contents
EXT35, Power Adapter, Power Cord, M3 x 5.0 mm Truss Head Screw (x 4), M3 x 10 mm Screw (x 4), Rack Mount Bracket (x 2), USB 3.0 Type-A to Type-B Cable, USB 3.1 Type-C to Type-C Cable

HUB35-EXT35
Optional Accessories
AVer CP10 G2 Collaboration Touch Panel
