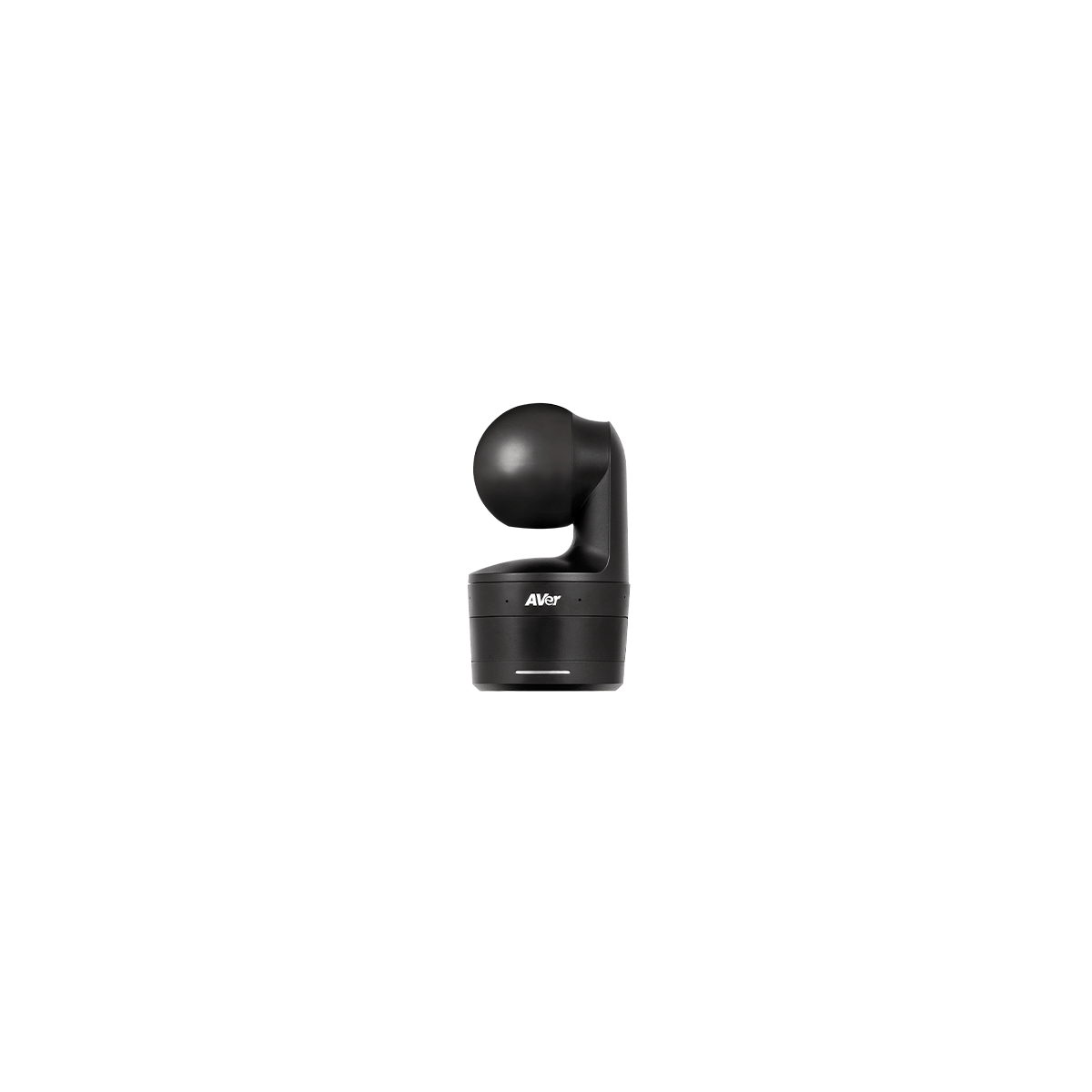

Distance Learning Tracking Camera
Equipped with high portability and a lightweight design, any educator can use the DL10 to directly connect to his/her laptop via USB port to start distance teaching anywhere. Featuring a Full HD 1080p resolution and a 2 megapixels camera, the DL10 delivers premium image quality. Through the DL10’s three AI auto tracking modes and intuitive gesture control, teachers can easily setup different modes to create perfect classes. Thanks to the built-in noise suppression microphones, the DL10 actively detects the teacher’s speech and eliminates intrusive background noises. After class, teachers can truly switch off with DL10 Sleep Mode functionality, where it automatically turns itself off when online class is dismissed.

Specifications
Camera
Image Sensor
1/2.8' 1080p Low Lux CMOS
Effective Picture Elements
2 Megapixels
Output Resolutions
1080p/60 (IP Streaming & USB)
Minimum Illumination
0.5 Lux (IRE50, F2.0, 30fps)
S/N Ratio
≥ 50 dB
Gain
Auto, Manual
TV Lines
800 (Center/Wide)
Shutter Speed
1/4 to 1/10,000 sec (60 Hz)
1/3 to 1/10,000 sec (50 Hz)
Exposure Control
Auto, Manual, WDR
WDR
Yes
White Balance
Auto, Manual
Optical Zoom
3X
Digital Zoom
2X
Viewing Angles
DFOV: 90° (Wide) to 35.8° (Tele)
HFOV: 82° (Wide) to 31.7° (Tele)
VFOV: 51° (Wide) to 17.9° (Tele)
Focal length
f = 3.3 mm (Wide) to 9.7 mm (Tele)
Aperture (Iris)
F = 2.0 (Wide) to 3.7 (Tele)
Minimum Working Distance
0.5 m (Wide), 1.0 m (Tele)
Pan/Tilt Angles
Pan : ±170°, Tilt : ±90°
Pan/Tilt Speed (Manual)
Pan: 1° to 100°/sec
Tilt: 10.8° to 100°/sec
Preset Speed
Pan : 200°/sec, Tilt : 200°/sec
Preset Positions
10 (IR), 256 (IP & USB)
Camera Control - Interfaces
IP, USB
Camera Control - Protocols
VISCA (IP), CGI (IP), USB
Image Processing
Noise Reduction (2D/3D), Flip, Mirror, WDR
Power Frequencies
50 Hz, 60 Hz

AI Auto Tracking Functions
Tracking Modes
Presenter Mode, Zone Mode, Hybrid Mode
Gesture Control
Yes (Tracking On/Off, Full/Upper Body)
Privacy Protection Mechanisms
Protection Modes
Privacy Mode, Sleep Mode

Audio
Channels
Line in: 2ch Stereo
Mic in: Mono
Codecs
AAC-LC (48, 32, 16, 8K), PCM (48K)
Sample Rates
48, 32, 16, 8 KHz

Microphones
Built-in Microphones
2 (Omnidirectional)
Noise Suppression
Yes
Pickup Range
5 m
Sensitivity
-33 dBFS
Frequency Response
30 Hz to 20 KHz
Maximum SPL
129 dB SPL at 0.5 m
Interface
Video Outputs
IP, USB
Audio Outputs
IP, USB
Audio Inputs
Line in, Mic in

General
Power Requirement
AC 100 - 240V to DC 12V/2A
Power Consumption
11W
PoE+
N/A
Dimensions (W x H x D)
92.4 x 164.0 x 94.4 mm
Net Weight
0.76 kg
Application
Indoor
Tally Lamp
N/A
Security
Kensington Slot
Remote Control
Infrared
Operating Conditions
Temperature: 0°C to 40°C
Humidity: 20% to 80%
Storage Conditions
Temperature: -20°C to 60°C
Humidity: 20% to 95%

IP Streaming
Resolution
1080p 60fps
Network Video Compress Formats
H.264, MJPEG (Web Page)
Network Audio Compression Formats
AAC-LC
Sample Rates
48, 32, 16, 8 KHz
Maximum Frame Rate
1080p 60fps
Bit-Rate Control Modes
VBR, CBR
Bit-Rate Range Setting
512 Kbps to 32 Mbps
Network Interface
10/100 Base-T
Multi-Stream Capability
2 (1 for IP Streaming, 1 for Web Page), (1 for USB, 1 for Web Page),1080p 60fps (max.)
3 (1 for IP Streaming, 1 for Web Page, 1 for USB), 1080p 30fps (max.)
Network Protocols
IPv6, IPv4, TCP, UDP, ARP, ICMP, IGMP, HTTP, DHCP, RTP/RTCP, RTSP, RTMP, VISCA over IP
NDI®|HX Capability
N/A

USB
Connector
USB 3.1 Gen 1 Type-B
Video Formats
MJPEG, YUY2
Maximum Video Resolution
1080p
USB Video Class (UVC)
UVC 1.1
USB Audio Class (UAC)
UAC 1.0

Web UI
Live Video Preview
Yes
Camera PTZ Control
Pan, Tilt, Zoom, Focus, Preset Control
Camera / Image Adjustment
Exposure, White Balance, Picture
Network Configuration
DHCP, IP Address, Gateway, Subnet Mask, DNS
Software Tools
IP Search and Configuration Tool
Supports Windows® 7 or later
Enterprise Management (PTZ Management)
Supports Windows® 10 or later
PTZ Control Panel
Supports iOS & iPadOS® 9 or later
OBS Plugin for PTZ Cameras
Supports Windows® 8 or later, macOS® 10.13 or later
CaptureShare
Supports Windows® 7 or later, macOS® 10.14 or later

Warranty
Camera
3 Years
Accessories
1 Year
Package Contents
Camera
Remote Control
Power Adapter
Power Cord
USB Cable
Cable Ties (x3)
Cable Fixing Plate
M2 x 4mm Screws (x2)
1/4'-20L 7.5mm Screw (x1)
Quick Start Guide
