Murideo
HDMI 2.1, 720p, 1080p, 4K, 8K, 4K/120 fps, OLED display, 50-Pack
Artikelnr:AV-MU-STIX-G50
Tillverkarens artikelnr:MU-STIX-G50
Välj variant
Fråga ett proffs!
Johan Näslund
+46(0)10-188 25 71
johan@audiovision.se

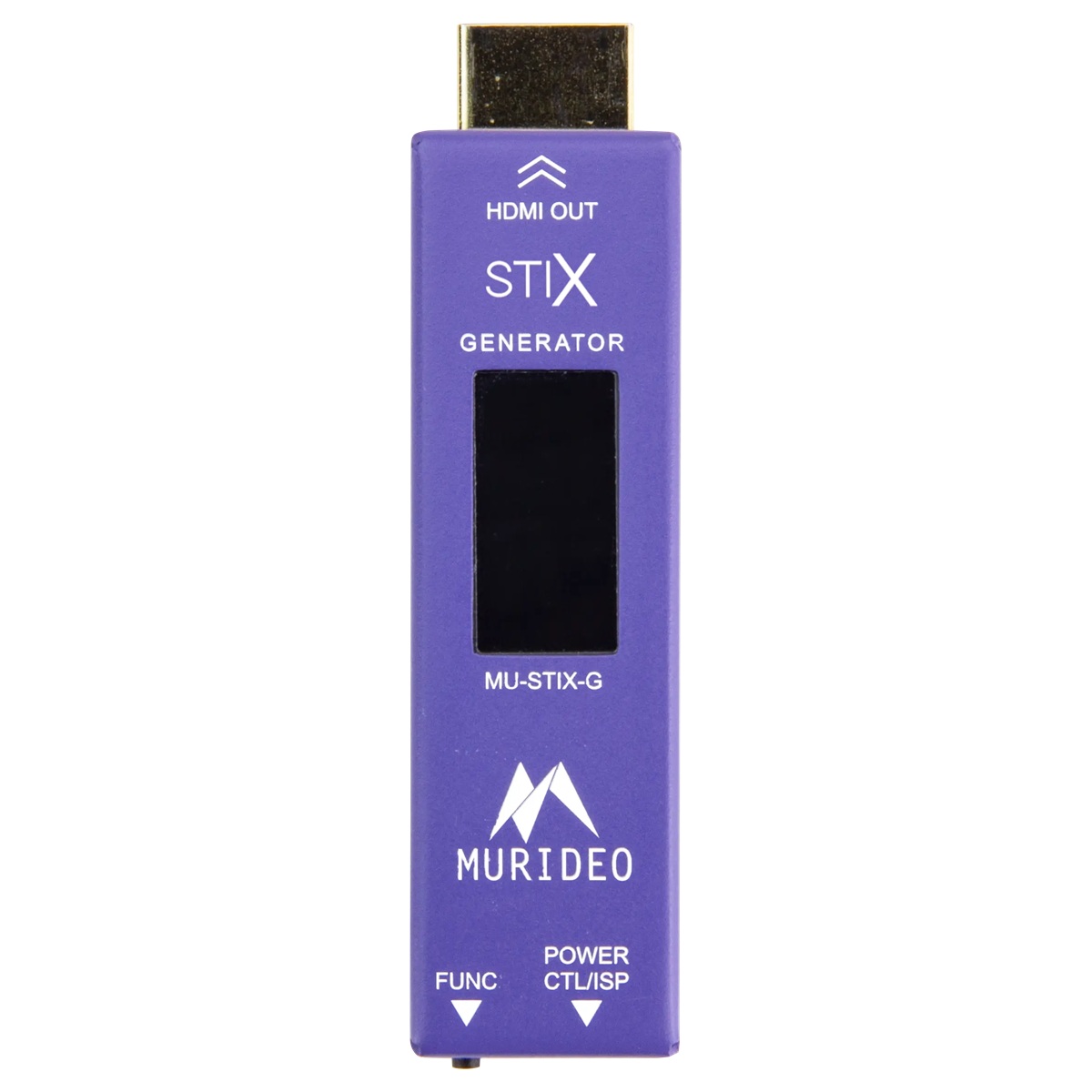

STIX Test Ecosystem Signal Generator
HDMI 2.1b, 8K 48 Gbps (FRL) compliant
Generates 720p, 1080p, 4K and 8K signal timings at 8-, 10-, and 12-bit Color Depths, in RGB, 4:2:0, 4:2:2, and 4:4:4 Color Spaces
HDCP selectable at Off, 1.4, and 2.3 (1.4 is TDMS only)
12 test patterns, including Pseudo-Random Binary Sequence, a diagnostic tool to identify transmission-related issues such as bit errors, signal attenuation, or timing problems.
The STIX Ecosystem is compatible with any brand of HDMI devices
Low-cost, flexible output source
Match pattern generation with common output timings used by HDMI-based entertainment sources at low cost and with flexible configuration. Toggle through settings instead of switching sources.
Seven available signal timings
720p and 1080p @ 60 fps, 4K @ 30 fps, 60 fps, and 120 fps, and 8K 30 fps.
Selectable Color Depth
8-, 10-, and 12-bit color depth
Selectable Color Space
RGB, 4:2:0, 4:2:2, and 4:4:4 color space options are available

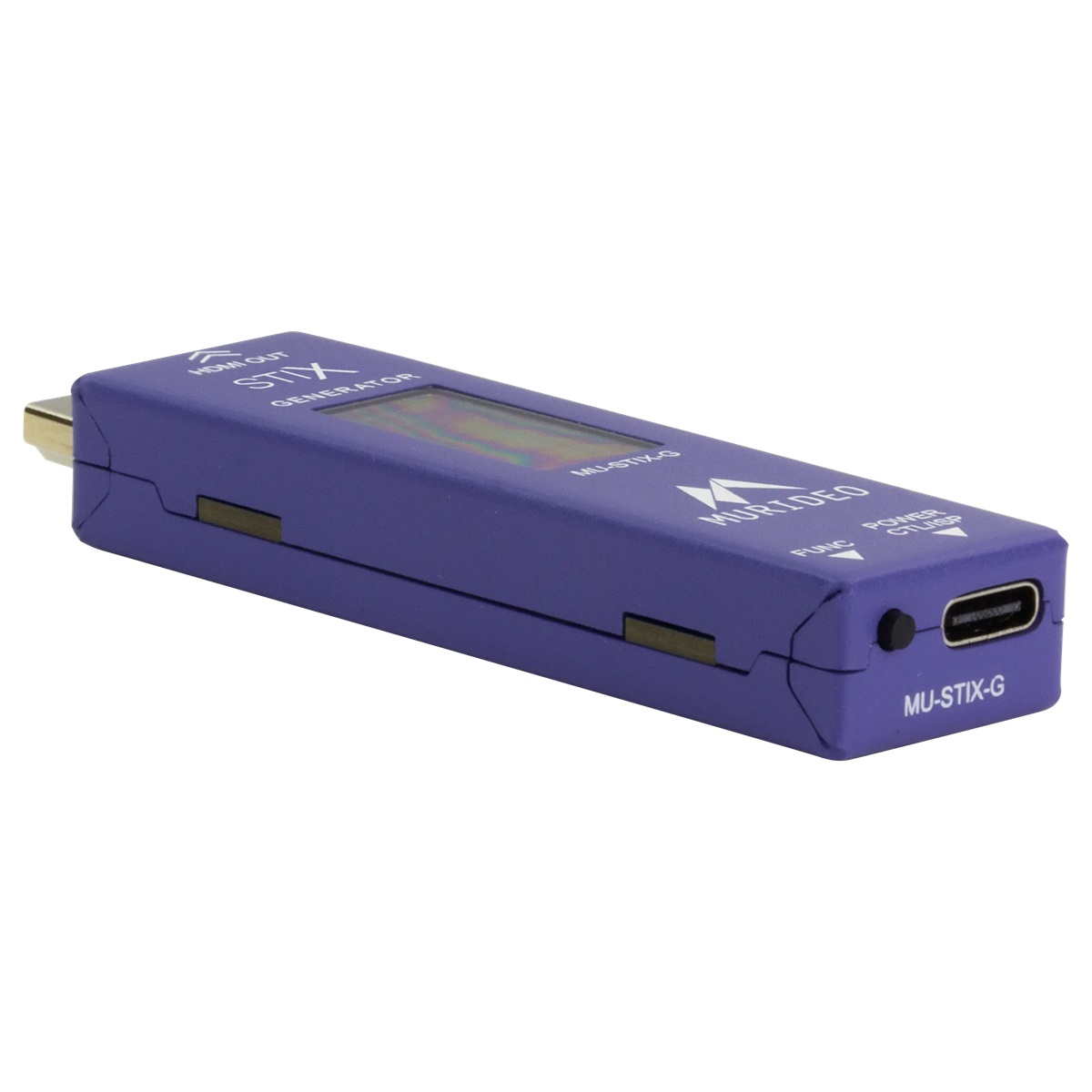

Ultra-compact Form Factor

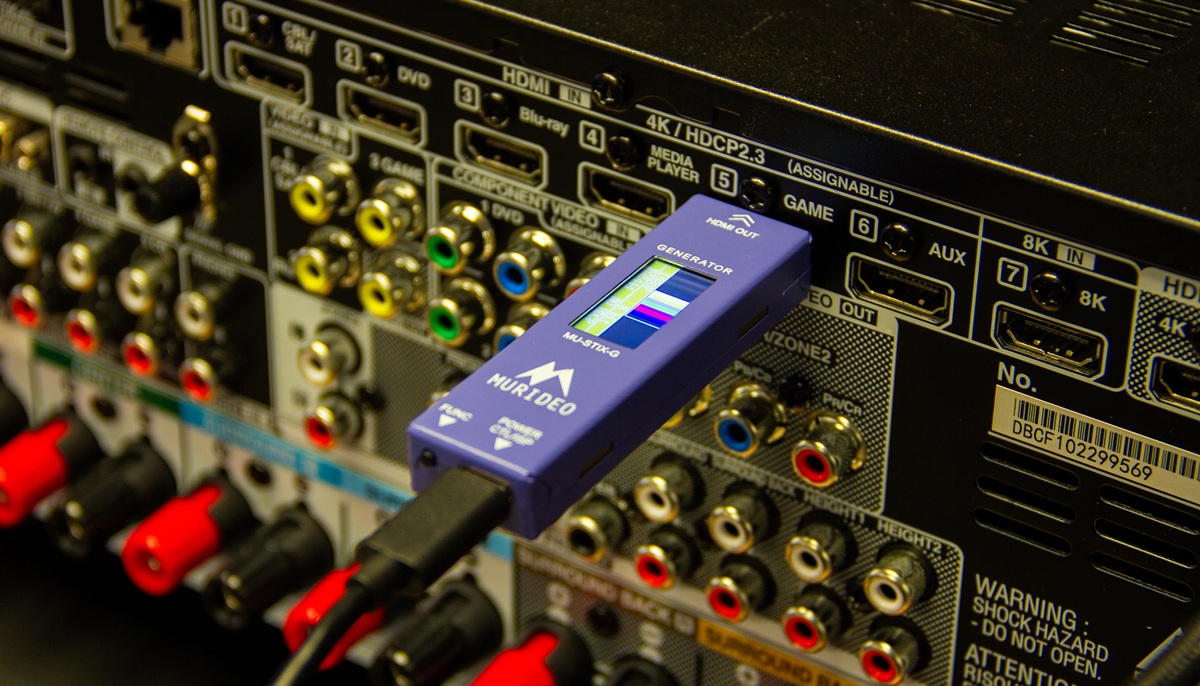

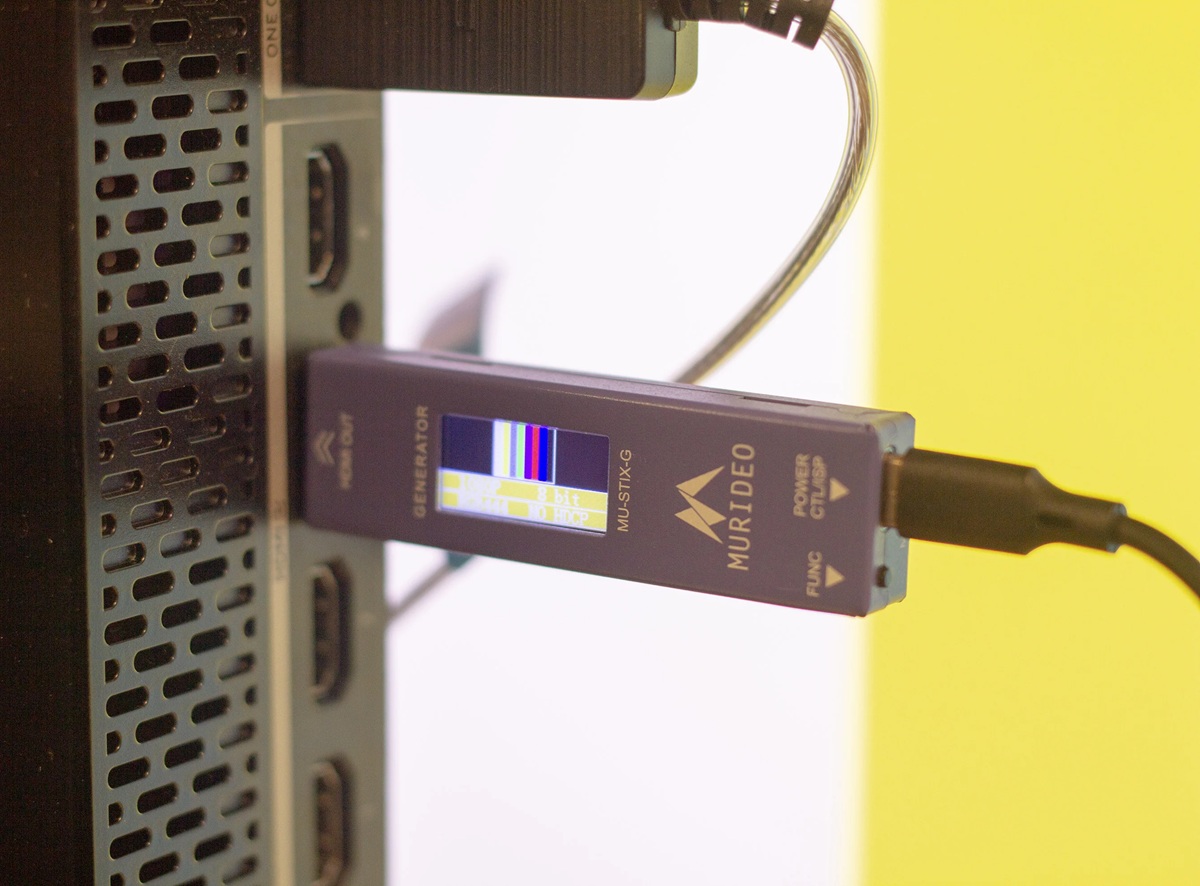

The HDMI headshell-sized footprint enables easy connectivity in tight spaces after racks are built. It can also be conveniently stored with tools or in a computer bag for any time troubleshooting.
Integral component of the STIX Ecosystem

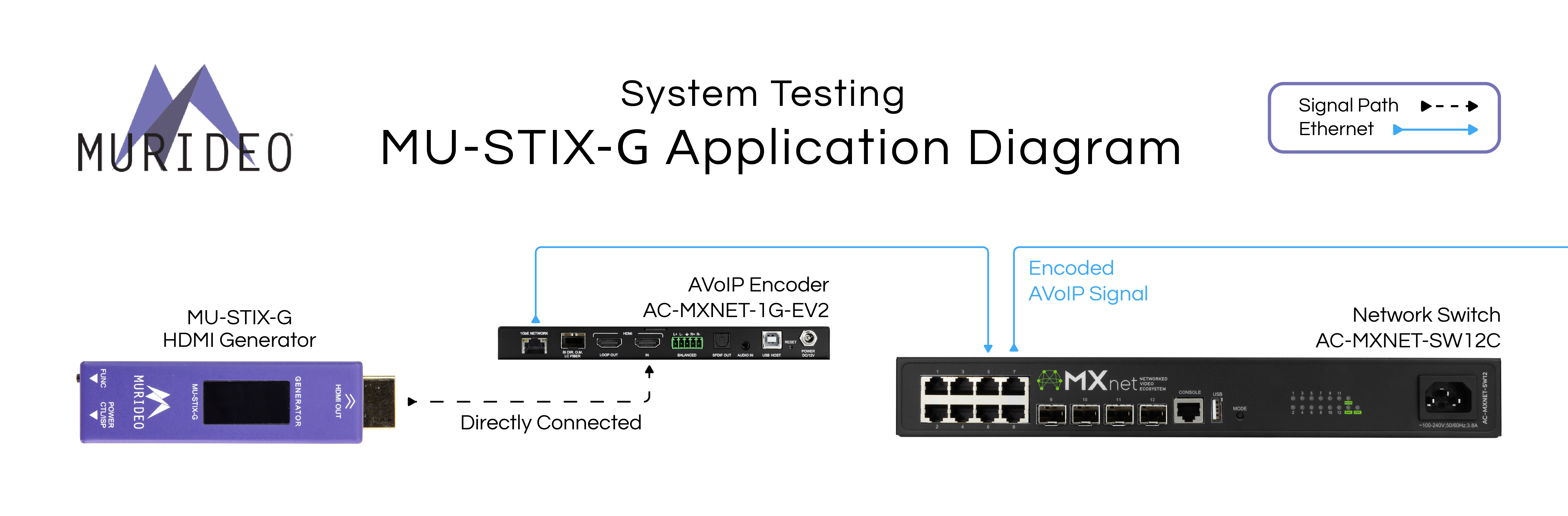

The STIX Ecosystem allows for asymmetrical scalability for MU-STIX-G deployment in end-to-end testing scenarios. Customized testing protocols may be configured based on the required source count and available MU-STIX-CTL slots.
Produktblad
Övrigt
24 månaders garanti på samtliga produkter.
