Murideo
HDMI 2.1, 720p, 1080p, 4K, 8K, 4K/120 fps, OLED display, 25-Pack
Artikelnr:AV-MU-STIX-A25
Tillverkarens artikelnr:MU-STIX-A25
Välj variant
Fråga ett proffs!
Johan Näslund
+46(0)10-188 25 71
johan@audiovision.se

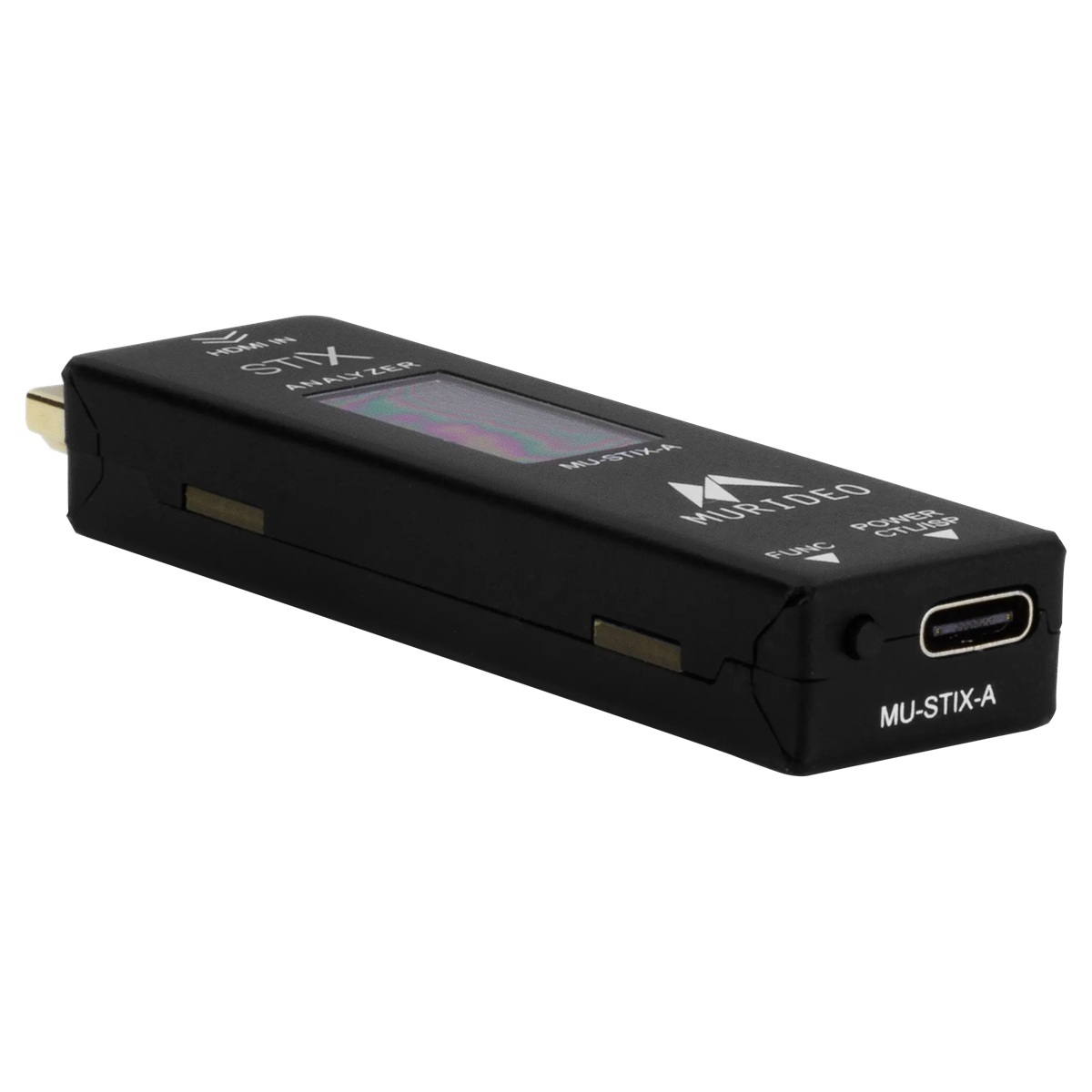

STIX Test Ecosystem Signal Analyzer
HDMI 2.1b, 8K 48 Gbps (FRL) compliant
Accepts 720p, 1080p, 4K and 8K signal timings at 8-, 10-, and 12-bit Color Depths, in RGB, 4:2:0, 4:2:2, and 4:4:4 Color Spaces
Detects signal changes, sync losses, and logs loss time
OLED screen displays incoming video image, source timing, FRL version or TDMS, color space, color depth, and HDCP version
Displays audio information, including incoming sampling frequency, bit rate size, and audio type
The STIX Ecosystem is compatible with any brand of HDMI devices
Low-cost, flexible analyzer

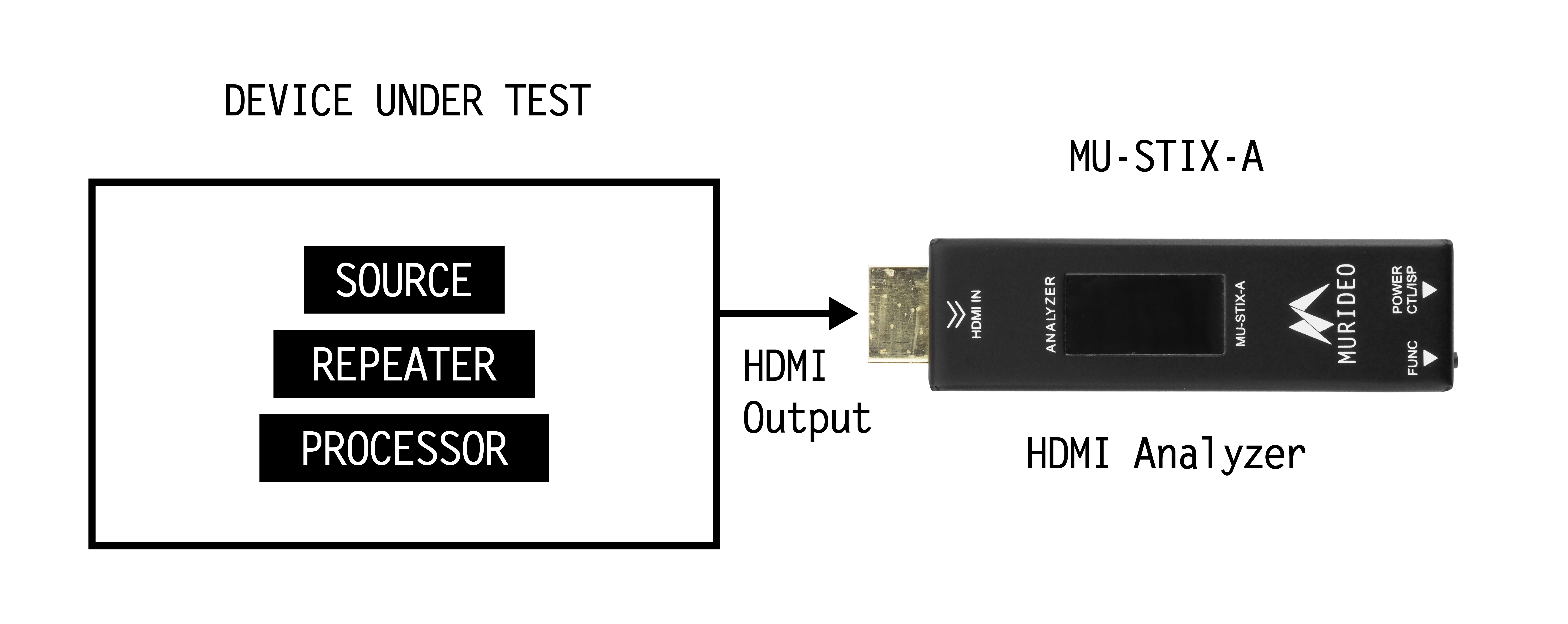

Verify common output timings used by HDMI-based entertainment sources at low cost. Sources can be MU-STIX-G generated or in-field from installation source devices. Additional signal-related information is also captured and displayed on the MU-STIX-A OLED screen, or when a part of the STIX Ecosystem, virtually on the MU-STIX-CTL GUI.
Analyzes seven common signal timings
720p and 1080p @ 60 fps, 4K @ 30 fps, 60 fps, and 120 fps, and 8K 30 fps, 60 fps.
Displays additional source information
8-, 10-, and 12-bit color depth is detected and displayed, along with RGB, 4:2:0, 4:2:2, and 4:4:4 color spaces.

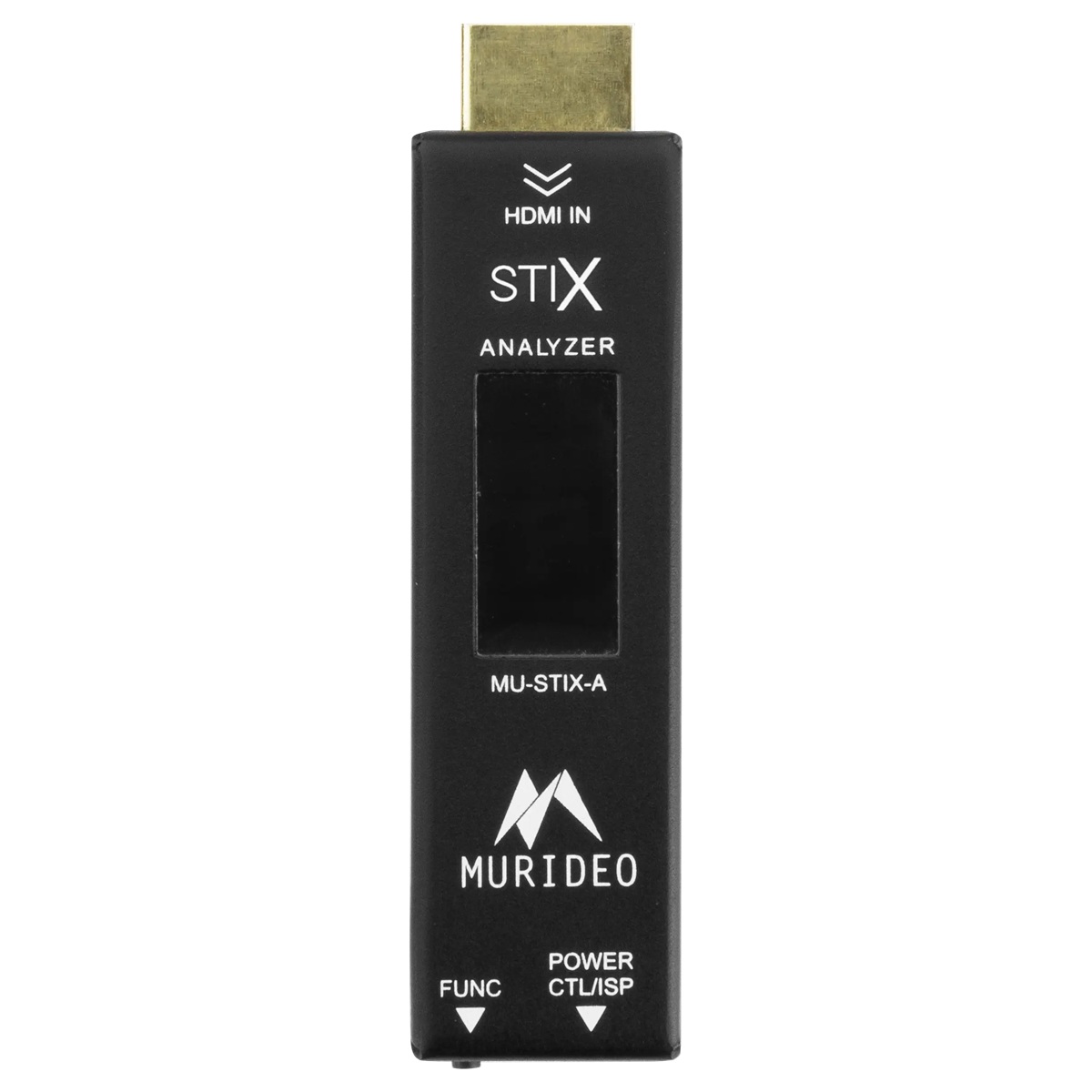

Ultra-compact Form Factor
The HDMI headshell-sized footprint enables easy connectivity in tight spaces after racks are built. It can also be conveniently stored with tools or in a computer bag for any time troubleshooting.

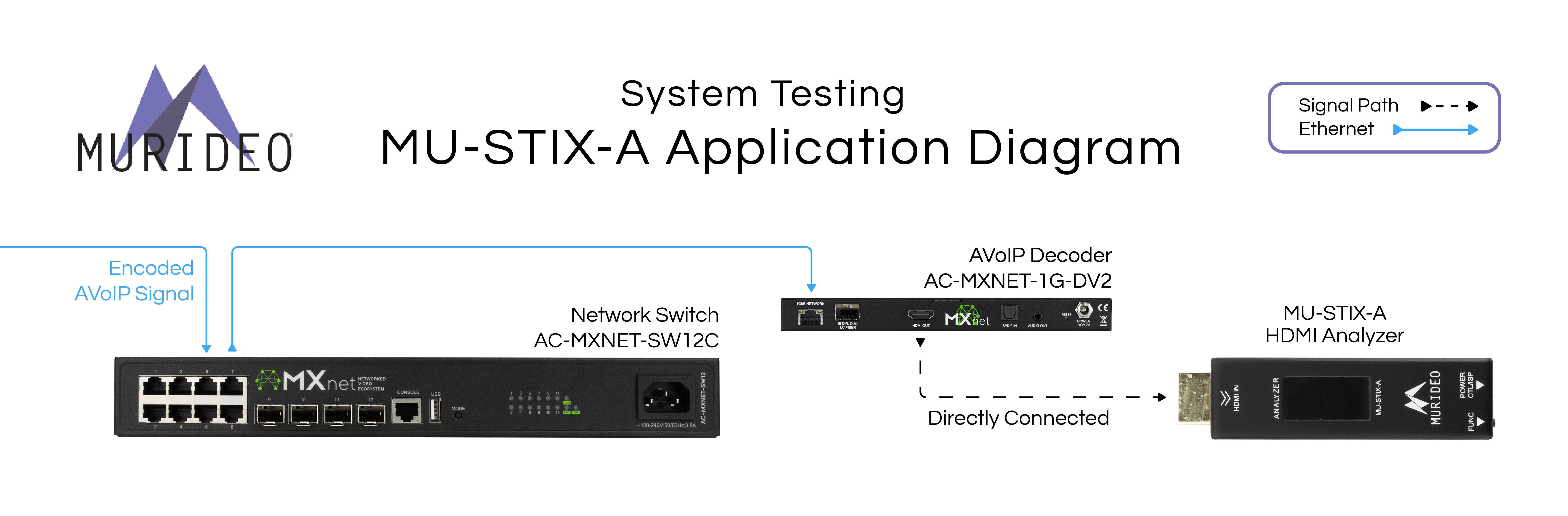

Integral component of the STIX Ecosystem
The STIX Ecosystem allows for asymmetrical scalability for MU-STIX-G deployment in end-to-end testing scenarios. Customized testing protocols may be configured based on the required source count and available MU-STIX-CTL slots.
