Audac
Väggpanel: Programmerbar, 4 Touch, 1 Vridreglage PoE, Vit
Artikelnr:AUD-NCP105-W
Tillverkarens artikelnr:NCP105/W
Fråga ett proffs!
Rikard Larsson
+46(0)10-188 25 67
rikard@audiovision.se
NCP105
Universal network/PoE wall panel controller
Compatible with most TCP-IP supported AV equipment
Transparent window for name tag (4x)
All-in-one free design & control platform - AUDAC Touch™
Flexible & scalable software architecture
Quick to learn, fast to deploy
4 adjustable buttons and push rotary* with RGB ring indicator (*not for third party equipment)
The NCP105 is a universal network wall panel controller, with 4 programmable capacitive touch buttons and a programmable push rotary encoder. Each button is provided with an RGB LED indicator, while the RGB LED ring indicator gives the user feedback on the selected settings or audio level.
The IP-based communication makes it future-proof while also being backward compatible with many existing products.
Besides the elegant design, the front panel of NCP105 is finished with high-quality fingerprint-resistant glass and a name tag window for each button that allows a custom name tag to be added behind the panel, offering a neat finish while having a clear overview of the configured functions.
The configuration of the button functions and the rotary dial is entirely flexible, with full compatibility of all AUDAC Touch functionalities.

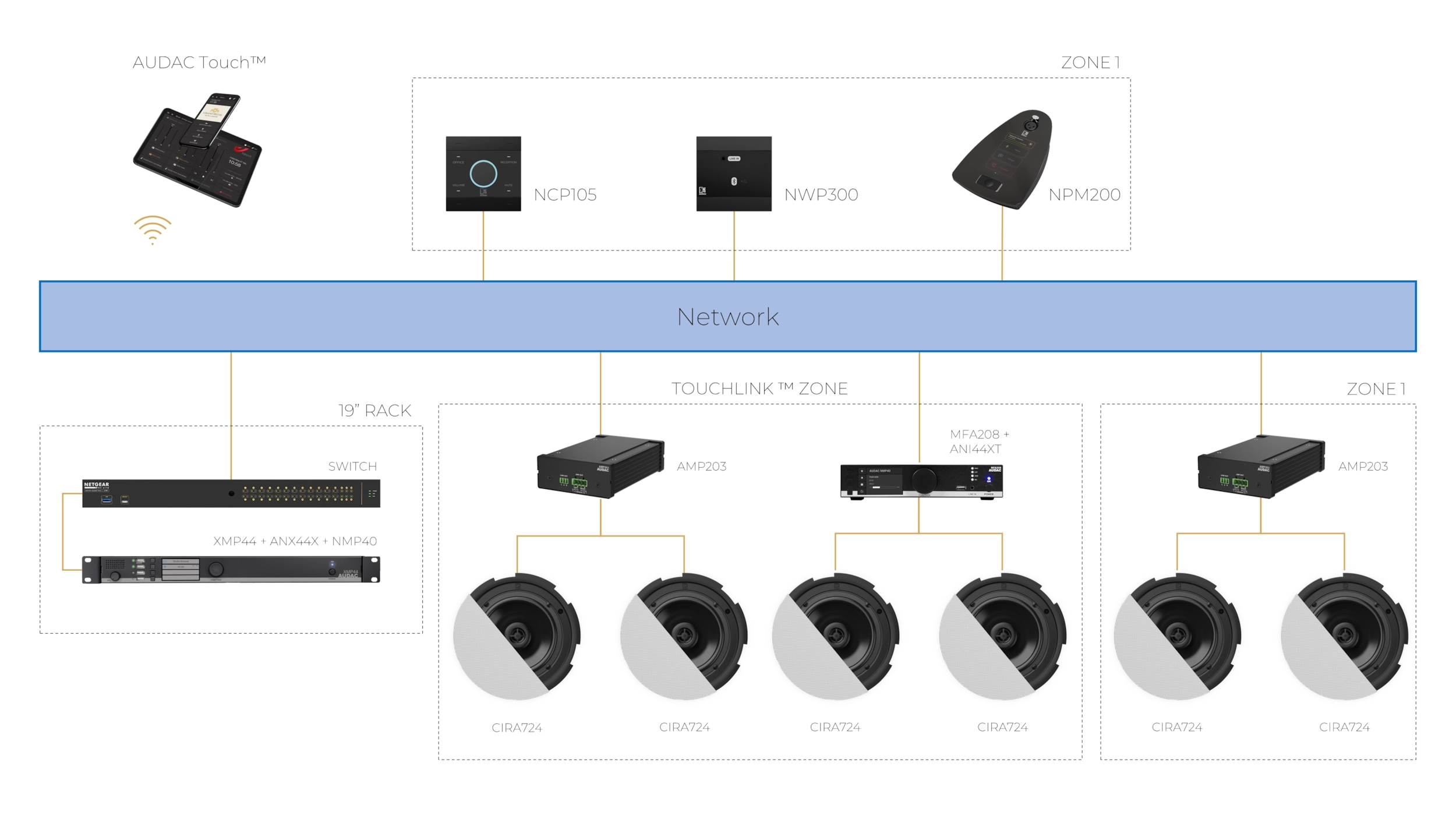

The design of NCP105 allows it to be used in many network-based applications done with Atellio family products or any third-party device, from amplifiers to speakers and processors, the choice is yours.
The wall panels are compatible with EU-style standard or 1-gang US standard in-wall boxes, making the wall panel the ideal solution for solid and hollow walls. Black and white colour options are available to blend into any architectural design.
Technical specifications
Available models
NCP105/B
Black version - EU-style standard
NCP105/W
White version - EU-style standard
Expected models
NCP105US/BComing soon
Black version - 1-gang US standard
NCP105US/WComing soon
White version - 1-gang US standard
System specifications
Control
4 programmable touch buttons (transparent window name tag)
Programmable rotary encoder
Indicators
RGB LED’s (each button)
360° RGB LED light bar (16 LED)
Configurable settings
Fully configurable button & rotary functions - Routing
Fully configurable button & rotary functions - Volume up / down
Fully configurable button & rotary functions - Mute
Fully configurable button & rotary functions - Toggle relay
Configuration
Audac Touch™
Power
Supply
PoE powered (IEEE 802.3af)
Connectors

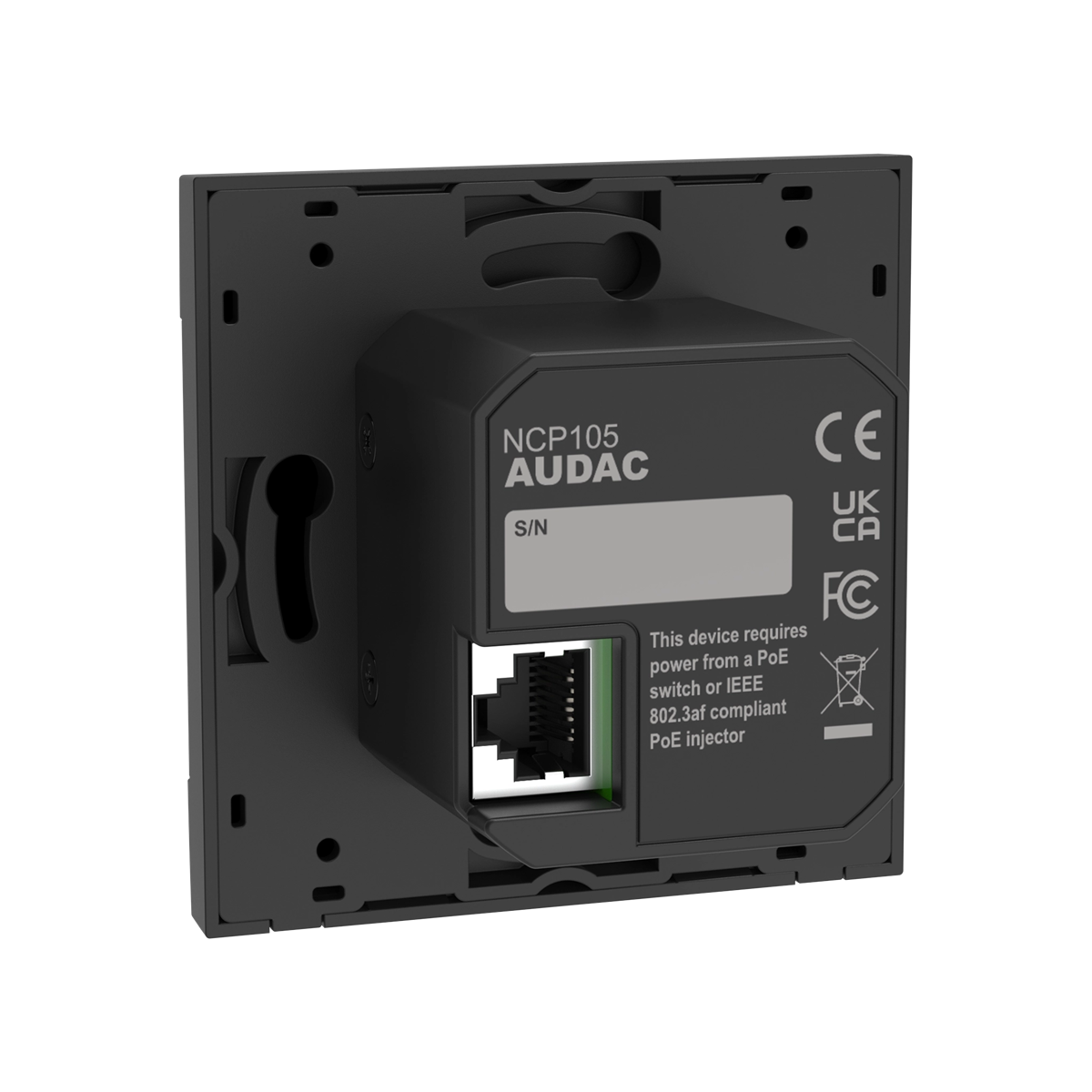

RJ45 (network + PoE)
Product Features
Dimensions
80 x 80 mm (W x H) (Remote wall panel)
Colours
Black (RAL9005) (NCP105/B)
White (RAL9003) (NCP105/W)
Front finish
Elegant ABS front panel with glass
Accessories
Optional
Surface mount Installation boxes
WB200 - Surface mount wall box for WP & NWP series
Flush mount Installation boxes
Flush mount box for 45 x 45 mm wall panel - Solid wall - WB45SI/FS
Flush mount box for 45 x 45 mm wall panel - Hollow wall - WB45S/FG
Construction
ABS
Installation standard
Compatible with EU installation materials
1-gang US standard (NCP105US)
Recommended applications
Corporate
Sporting facilities
Hotels
Education
Government facilities
Bars & Restaurants
Produktblad
Certifikat
Ritningar
