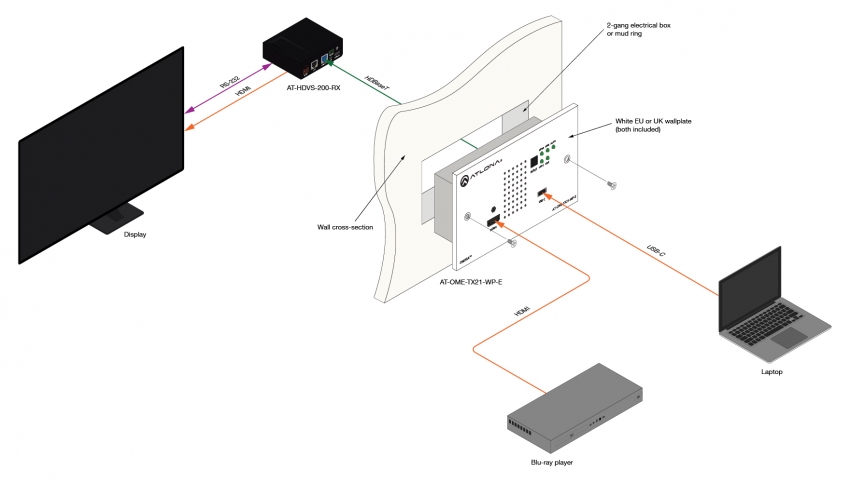

The AT-OME-TX21-WP-E is ideal for 4K/UHD extension to the AT-UHD-EX-100CE-RX-PSE receiver, and can also provide remote 4K/UHD input switching for Atlona HDBaseT-equipped switchers and matrix switchers. Additionally, the AT-OME-TX21-WP-E is compatible with the AT-HDVS-200-RX receiver and HD scaler.

The Atlona AT-OME-TX21-WP-E is a 2ࡧ switcher and HDBaseT transmitter with HDMI and USB-C inputs. It is designed for commercial installations in Europe. The OME-TX21-WP-E includes interchangeable EU and UK faceplates and brackets, with white faceplates for each version. The USB-C input is ideal for AV interfacing with Mac^®, Chromebook™, and Windows^®PCs, as well as smartphones and tablets. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded audio and control can be transmitted up to 330 feet (100 meters). The OME-TX21-WP-E is HDCP 2.2 compliant. It is designed for use with Omega™ Series receivers and switchers, select HDVS Series receivers, the AT-UHD-EX-100CE-RX-PSE receiver, and other Atlona switchers with HDBaseT inputs. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control. It is remotely powered by Atlona HDBaseT-equipped devices through Power over Ethernet (PoE).

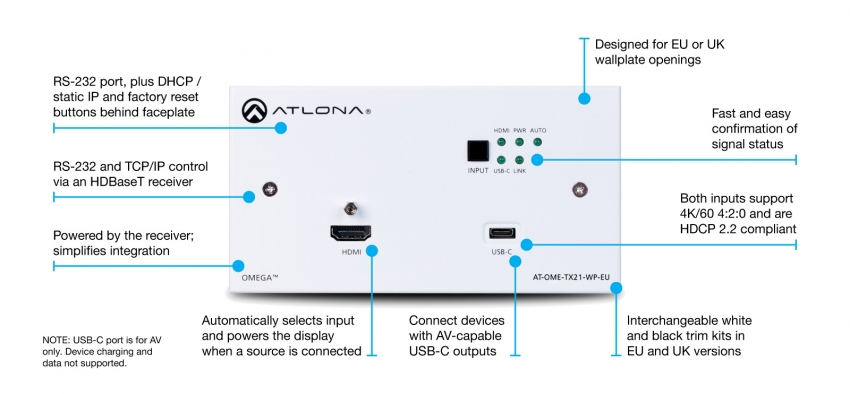

All-in-One Switcher, Controller, and Extender
The OME-TX21-WP-E combines the benefits of auto-switching, integrated display control, and HDBaseT signal transmission. It also enables input selection, volume, and display on/off control from external RS-232 or TCP/IP commands. The OME-TX21-WP-E incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces.

Automatic Display Control
The OME-TX21-WP-E provides control to a display through RS-232 or CEC, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the OME-TX21-WP-E can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the OME-TX21-WP-E forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The OME-TX21-WP-E display control capability can also be triggered by an external control system.

Reliable Auto-Switching
The OME-TX21-WP-E automatically selects an input source based on detection of the 5 volt hot plug detect (HPD) signal, as well as active video. This ensures reliable auto-switching operation for all video sources, including DVRs, DisplayPort / Mini DisplayPort adapters, and other devices that always maintain the HPD line at the 5 volt “high” state but may not be delivering active video.
