Produktinformationexpand_more

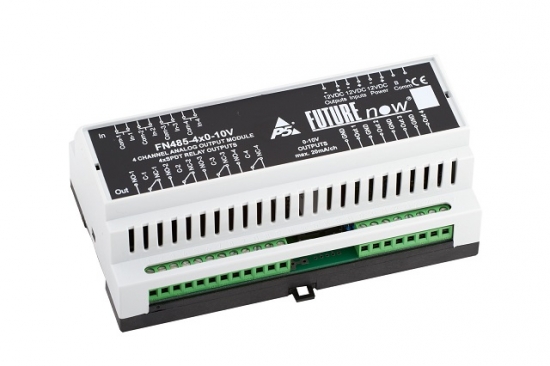

• Control via RS485 or local inputs • 4 optically isolated, analog, 0-10V outputs for dimming 4 circuits • 4 heavy duty relays to cut power off from the loads at zero dim level • 4 optically isolated multi-purpose inputs • Standard DIN rail mount • Outputs can be directly operated via local inputs without a controller • 100 dim levels • Dim level memory - Modules can remember their last dim level. When next powered on, lights will return to the last remembered value • Soft start/stop with adjustable ramp rate • Dim with adjustable ramp rate • Bus command support for setting dim levels to discrete values • Preset dim level • 100+ bus commands for setting dim levels (discrete or relative), scene presets and recall, input modes of operation, timer values of day, delayed commands, etc. • 26 groups/scenes • Flashing mode
Garantierexpand_more
24 månaders garanti på samtliga produkter.
Utvalda artiklar och tillbehör

P5
Nätaggregat
Nätaggregat med DIN-skena, 85%, 12V, 1.25A, 15W, Justerbar
