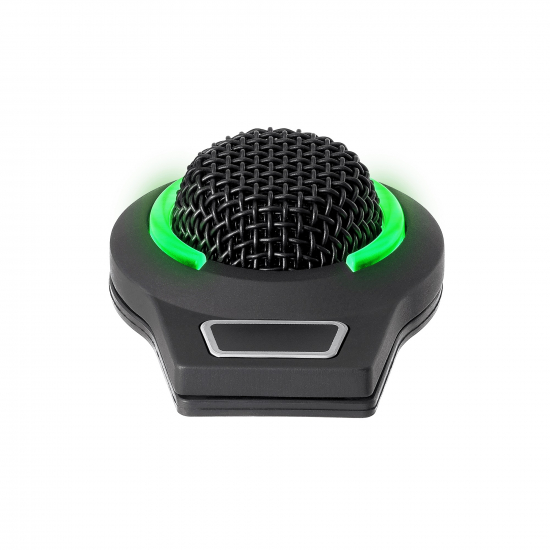

This phantom-powered omnidirectional condenser boundary microphone features a 3-pin XLR output connector with a capacitive touch switch that enables local muting of the microphone.

Designed for clear, highly intelligible conferencing, recording, monitoring and other demanding sound pickup applications, the ES945O/FM3 mounts unobtrusively in tabletops or panels, but includes a highly visible two-state RGB LED ring (7 selectable colors + OFF) to indicate mute status.

The microphone’s omnidirectional polar pattern provides 360° coverage. A rugged all-metal case with a two-layer steel mesh grille protects the microphone element, while our UniGuard® RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI).

The ES945O/FM3 is equipped with a self-contained power module, eliminating the need for an external one, and comes with a pair of rubber isolators for optional mechanical isolation from the mounting surface.

See below for the entire family of ES945O and ES947C boundary microphones:

ES945O/XLR
Water-resistant Omnidirectional Condenser Boundary Microphone with XLR Output

ES947C/XLR
Water-resistant Cardioid Condenser Boundary Microphone with XLR Output

ES945O/TB3
Miniature Omnidirectional Condenser Boundary Microphone with TB3-to-XLR Output

ES947C/TB3
Miniature Cardioid Condenser Boundary Microphone with TB3-to-XLR Output

ES945O/FM3
Omnidirectional Condenser Boundary Microphone with 3-Pin XLR Output and Local Muting

ES947C/FM3
Cardioid Condenser Boundary Microphone with 3-Pin XLR Output and Local Muting

ES945O/FM5
Omnidirectional Condenser Boundary Microphone with 5-Pin XLR Output and Remote Muting

ES947C/FM5
Cardioid Condenser Boundary Microphone with 5-Pin XLR Output and Remote Muting

Designed for surface-mount applications such as conferencing, recording, monitoring and other demanding sound pickup applications
Capacitive touch switch enables local muting of the microphone
Highly visible two-state RGB LED ring (7 selectable colors + OFF) indicates mute status
Low-profile element provides uniform omnidirectional polar pattern with 360° acceptance angle
Mounts unobtrusively in tabletops and panels
Self-contained power module with 3-pin XLR output connector
Rugged all-metal case with a two-layer steel mesh grille
Rubber Isolators provide mechanical dampening of mounting-surface vibration
Requires 11V to 52V DC phantom power
UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
RoHS compliant—free from all substances specified in the EU directive on hazardous substances

Specifications

Microphone
Element	Fixed-charge back plate, permanently polarized condenser
Polar Pattern	Omnidirectional
Frequency Response	60-15,000 Hz
Open Circuit Sensitivity	-33 dB (0 dB = 1V/Pa, 1 kHz)
Output Impedance	60 ohms
Maximum Input Sound Level	130 dB SPL (1 kHz at 1% THD)
Dynamic Range	(typical) 109 dB (1 kHz at max SPL)
Signal-to-Noise Ratio	73 dB (1 kHz at 1 Pa, A-weighted)
Phantom Power Requirements	11-52V DC, 7.5 mA
Weight	59 g (2.1 oz)
Dimensions	38.0 mm (1.50") W x 48.0 mm (1.89") D x 84.8 mm (3.34") H
Output Connector	3-pin XLRM-type
Accessories Included	Rubber isolators (two types), nut
