Attero Tech by QSC
4 kanals I/O Interface, Logic I/O, AES67, USB, 2x5W, PoE+
Artikelnr:QSC-A4FLEX
Tillverkarens artikelnr:A4FLEX
EAN:684284083739
Fråga ett proffs!
Jonas Örn
+46(0)10-188 25 61
jonas@audiovision.se
AtteroTech 4 Channel I/O Interface w/ Logic I/O, AES67, USB, 2x5W Amplifier, PoE+, 1/3rd rack width w/mounting ears (rack tray kit sold separately)
AES67 scalable mic/line connectivity interface (Attero Tech by QSC)

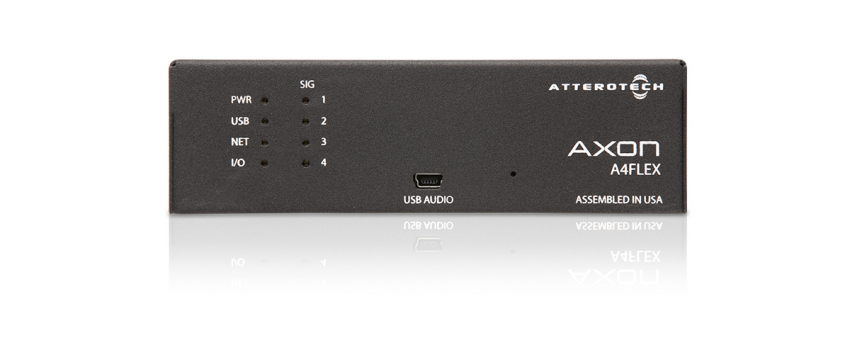

The Attero Tech by QSC Axon A4FLEX is a compact and scalable mic/line connectivity solution for the Q-SYS™ Ecosystem and other third-party AES67 networked audio systems. It features four mic/line inputs (two of which are software-configurable as outputs), USB and AES67 audio and control interfaces, logic I/O and a two-channel power amplifier.
The Axon A4FLEX is equally suited to act as a standalone integration solution for the huddle space, small conference room or network audio I/O endpoint for a networked AV&C system in a wide range of applications.
Key Features
• AES67 audio networking or standalone operation with network control
• 4 x 0, 3 x 1, 2 x 2 mic/line analog audio I/O
• 2 x 2 USB audio interface, configurable device name and terminal type
• Available fixed architecture DSP
• 2 x 10 W power amplifier output (2 x 5 W on PoE+)
• 1/3 RU with table and rack mounting accessories
• PoE+ powered
• Configurable and network assignable logic I/O
• Available Q-SYS control plugin – no programming required
Specifications:
Audio Inputs (Mic/Line)
Connector type 3.81 mm Euro-block, 3 position (16-28 AWG)
Gain -8 dB to +34 dB gain, 1 dB increments
Maximum input level -8 dB Gain, max input = +16.5 dBu (+24 dBu w/pad)
Phantom power +48 V, software selectable per channel
Audio Outputs (mic/line)
Connector type 3.81 mm Euro-block, 3 position (16-28 AWG)
Maximum output levels +24 dBu (-15.5 dBU w/pad)
Phantom power +48 V, software selectable per channel
Dynamic range 100 dB
Network
Connector (s) Dual RJ-45
Cable quality CAT-5e or better, UTP
Transmission speed 1 Gbps
General
Dimensions (HWD) 1.6 x 5.4 x 7.9 in
(41 x 137 x 200 mm)
Weight 1.8 lb (0.83 kg)
Mounting options Rack-mountable, 1 RU 1/3-rack width
Surface-mountable
*All mounting hardware offered as accessories
36 månaders garanti på samtliga produkter.
Attero Tech var en amerikansk tillverkare specialiserad på nätverksbaserade ljud- och kontrollgränssnitt för fasta AV-installationer, numera ingår varumärket i Q-SYS sortiment. Företaget är särskilt känt för sina kompakta, installerbara enheter för Dante™- och AES67-baserade ljudsystem, vilket förenklar anslutning av mikrofoner, linjesignaler och styrning i professionella miljöer som konferensrum, utbildningslokaler och arenor.
info@audiovision.se
AES67
