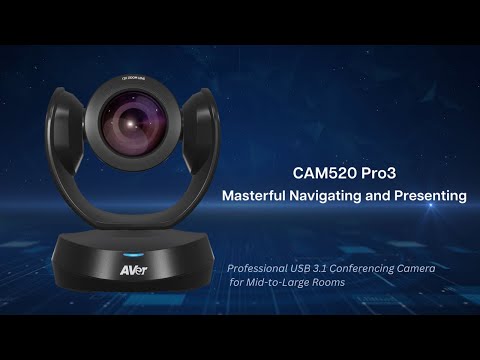

Professional USB 3.1 Conferencing Camera for Mid-to-Large Rooms
The AVer CAM520 Pro3 is extremely versatile, offering users a 36X total zoom PTZ camera, upgraded AVer SmartFrame, Preset Framing, and a Sony WDR Sensor. In addition, 3-way outputs — including an HDMI connection — deliver more streaming options. But what makes the CAM520 Pro3 truly special is Smart Composition, an embedded AI function that quickly captures meeting participants’ images to facilitate productive video conferences in mid-to-large meeting rooms.

Master the Details with a 36X* Total Zoom Lens and Boost Your Business
Create error-free meetings with the CAM520 Pro3 PTZ lens. Capture wide shots with an 80° diagonal field of view, and focus on presenters, attendees, content on whiteboards, or physical objects with flexible pan and tilt controls. Powerfully handle every detail with a 12X optical lens and a 36X* total zoom. Additionally, the CAM520 Pro3 uses 24X lossless zoom to deliver outstanding clarity to remote participants, making it the ideal conferencing camera for mid-to-large rooms!

Specifications

Camera
Sony super-low-light 8M pixel sensor, clear and natural imaging in low-light conditions, providing ultra FHD image quality.
Resolution: (16:9) 1920 x 1080, 1280 x720 at 60, 30, 15fps; 1600 x 900, 960 x 540, 848 x 480, 800 x 448, 640 x 360, 424 x240, 320 x 180 at 30, 15fps; (4:3) 1280 x 960, 800 x 600, 640 x 480, 480 x 360, 320 x 240 at 30,15fps
SmartFrame for automatic FOV adjustment to fit all participants

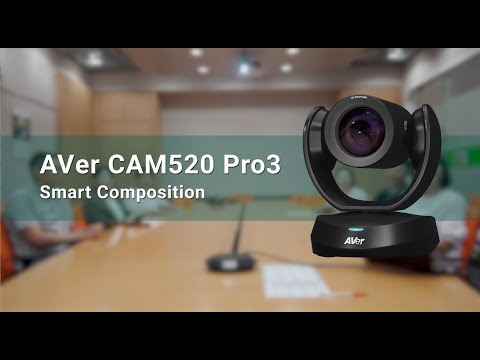

Smart Composition function offers great visibility for individual participant in the meeting room
Innovative Preset Framing: Follow presenter based on preset areas
WDR: Superb backlight compensation technology for optimizing light balance in high-contrast conditions
Zoom: 36X* total zoom (12X optical zoom)
Field of view(D/H/V): 80.5°/72.8°/44.1°
Lens focal length: 3.9 mm (wide) ~ 46.8 mm (tele)
Lens F#: 1.6 (wide) ~ 2.8 (tele)
Mirror, flip, AE, white balance: auto/manual override via Room Management (PTZApp 2)
Minimum focus distance: 1m
Standard tripod screw holes and Kensington slot
People-counting API: enterprises and third-party software providers can obtain people-counting data for better understanding of meeting-space usage
*Please use Room Management (PTZApp 2) to set up 36X zoom.

Motorized Pan & Tilt Movement
Pan: ±170°
Tilt: +90° (up) -30° (down)
10 camera presets (via remote control)
Fast and quiet pan & tilt movement

Video Format
YUV, YUY2, MJPEG
Network video compression format: H.264
Network protocol: RTSP, RTMP

Control
IR remote control
VISCA/pelco P/pelco D via RS232 (128 preset points via VISCA command)
Remote side: VISCA over IP, IP (RJ45)
UVC plug and play
WebUI: Browser IP access via Chrome (Does not support Internet Explorer)
Room Management (PTZApp 2)

Connectivity
12V/2A power adaptor
Type Non-B Mini DIN 9 for RS232 in & out connection (VISCA, control panel and camera daisy chain)
USB 3.1 type-B
IP (RJ45)
HDMI 1.4

USB
3.1 Gen 1 Type-B, backward compatible with USB 2.0
UVC 1.1 (USB video), UVC1.5*
* UVC1.5 requires an additional firmware upgrade. Please contact technical support for more details.

Mount
Camera wall-mount bracket included
Optional foldable TV mount
Optional ceiling mount

System Requirements
Windows® 7/10/11
Mac OS X 10.14 or later
Google Chromebox 3 version 94.0.4606.114 or later

PC Hardware Requirement
3.2 GHz Intel® Core™ i5-4460 processor
8 GB RAM or more
USB 3.1 port , backward compatible with USB2.0 port

Environmental Data
Operation temperature: 0 ~ 40°C
Operation humidity: 20% ~ 80%
Storage temperature: -20 ~ 60°C
Storage humidity: 20% ~ 80%

Dimensions
Package dimensions: 256 x 256 x 274 mm
Package weight: 3.335 kg/7.35 lbs
Camera: 182 x 142.7 x 153 mm/1.47 kg
Remote control: 200 x 50 x 21 mm/0.09 kg

Optional Accessories
Mini DIN8 to D-SUB9 RS232 adapter
USB3.1 fiber extender 10m/20m/30m
USB3.1, 3m type-B to type-A cable
HDMI Cable
Ceiling mount
1-Port POE+ Injector
Foldable TV mount

Web page browser requirement
Chrome: version 76.x or above
Firefox: version 69 or above
IE: Not support

Power Supply
AC 100V ~ 240V, 50/60 Hz
Consumption: 12V, 2A
PoE+: 802.3at

Software Tools
Room Management (PTZApp 2)
Supports Windows® 7 or later, macOS® 11.6 or later
Enterprise Management (PTZ Management)
Supports Windows® 10 or later
Cloud Management
Supports Windows® 7 or later, macOS® 10 or later
EZManager 2
Supports Windows® 7 or later
EZLive
Supports Windows® 7 or later, macOS® 10.13 or later

Package Contents
CAM520 Pro3 unit
Remote control
5m, USB2.0 type-B to type-A cable
Power adapter (10 ft/3 m)
QR code card
Wall-mount bracket
¼” tripod screw
Mini DIN9 to mini DIN8 RS232 adapter

Warranty
Camera: 3 years*
Accessories: 1 year
*We offer an optional 2-year extended warranty in Europe. Please contact your local supplier for details.

Compatible Applications
Zoom, Microsoft® Teams, Skype for Business, Skype, Google Meet, Intel® Unite™, RingCentral, BlueJeans, V-Cube, LiveOn, CyberLink U Meeting®, TrueConf, Adobe® Connect™, Cisco WebEx®, Fuze, GoToMeeting™, Vidyo, vMix, WebRTC, Wirecast, XSplit
